Description

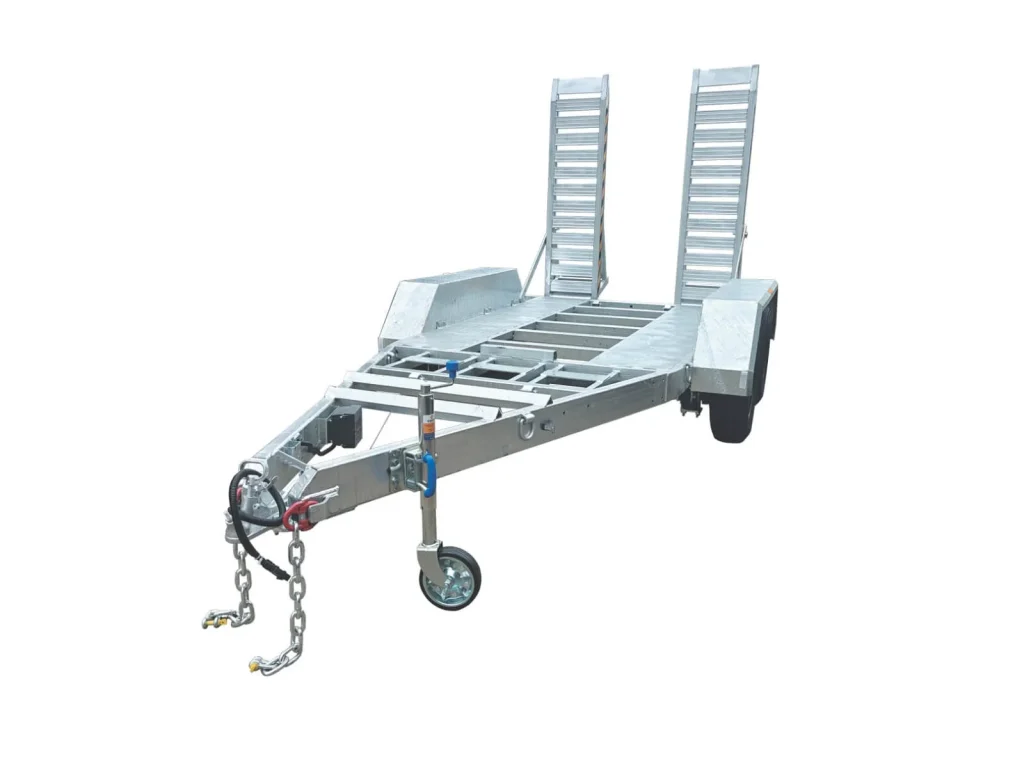

3.5T Plant Trailers For Sale (upgradable to 4.5T) – Deck Size: 2570x1600mm

Heavy duty plant trailer with 2570mm × 1600mm deck – ideal for mini excavators, skid steers and compact machinery
Available in 3500kg ATM or upgradeable to 4500kg ATM
Fully welded hot-dip galvanised chassis built for commercial machinery transport

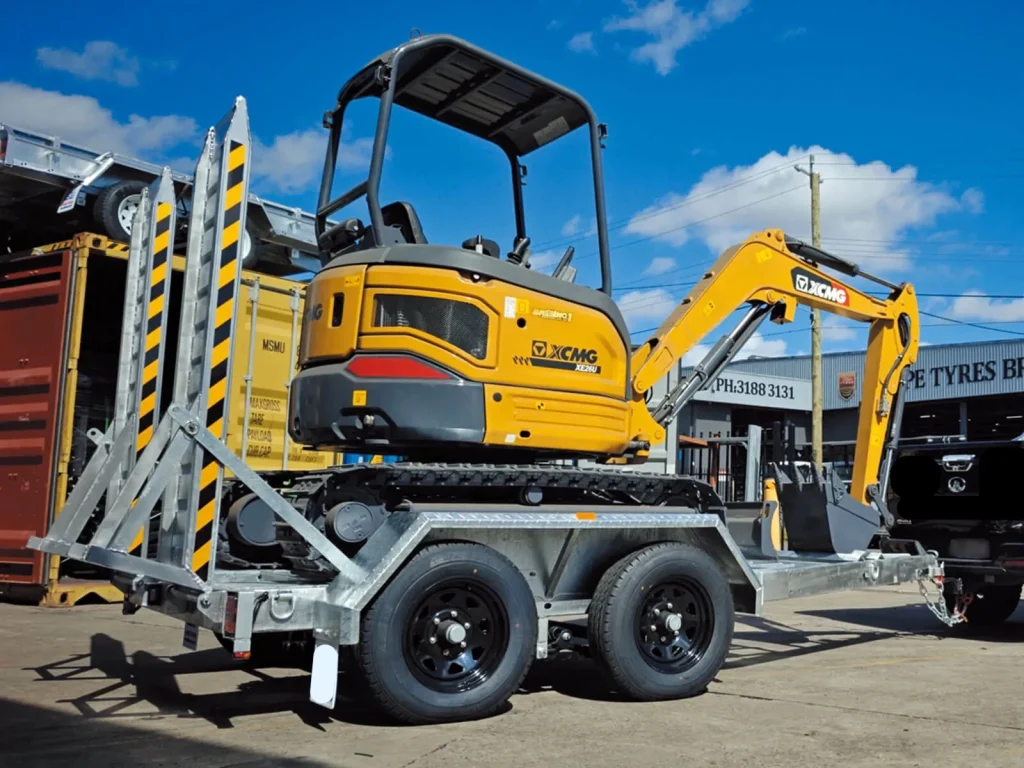

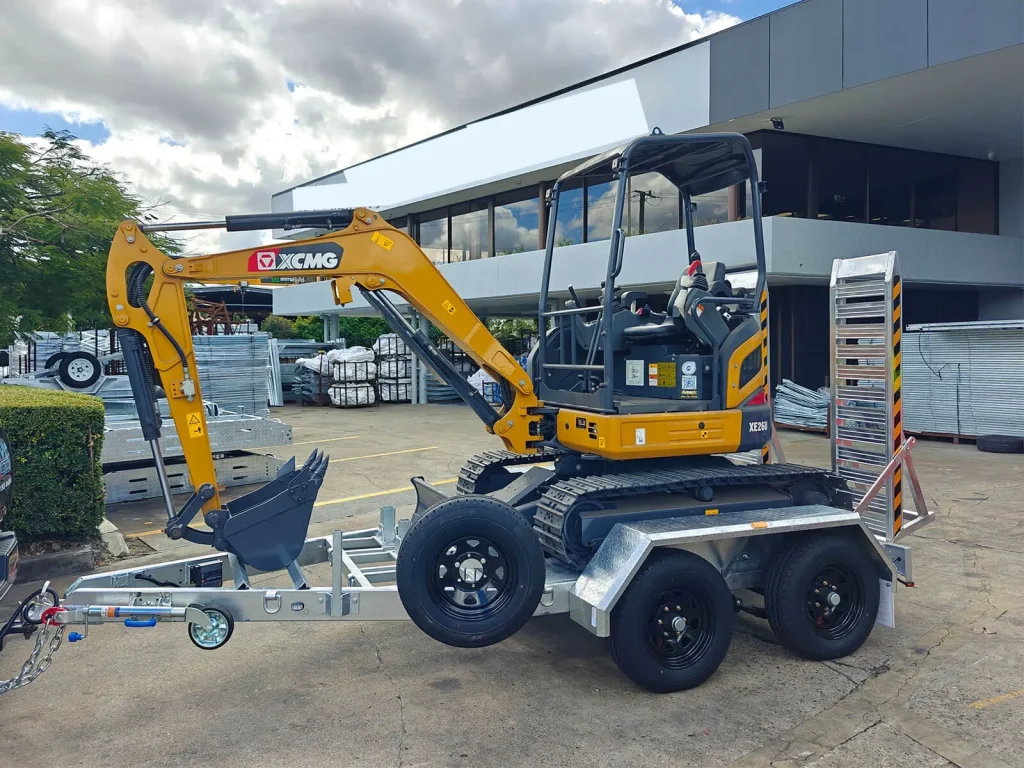

Suitable for most 2.6t–3.6t mini excavators and machinery
Lightweight but heavy duty aluminium loading ramps included

Specifications

ATM: 3500kg (upgradable to 4500kg)
Tare: 780kg (840kg for 4.5T ATM)
Loading Capacity: 2600kg (upgradable to 3660kg)

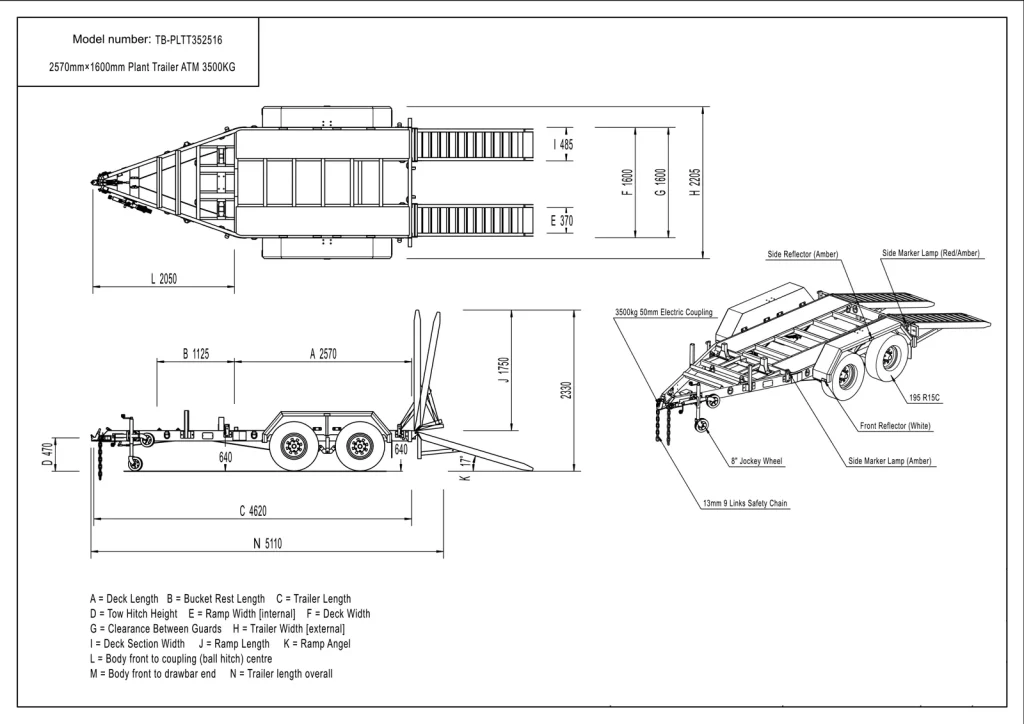

Internal Size: 2570 x 1600mm

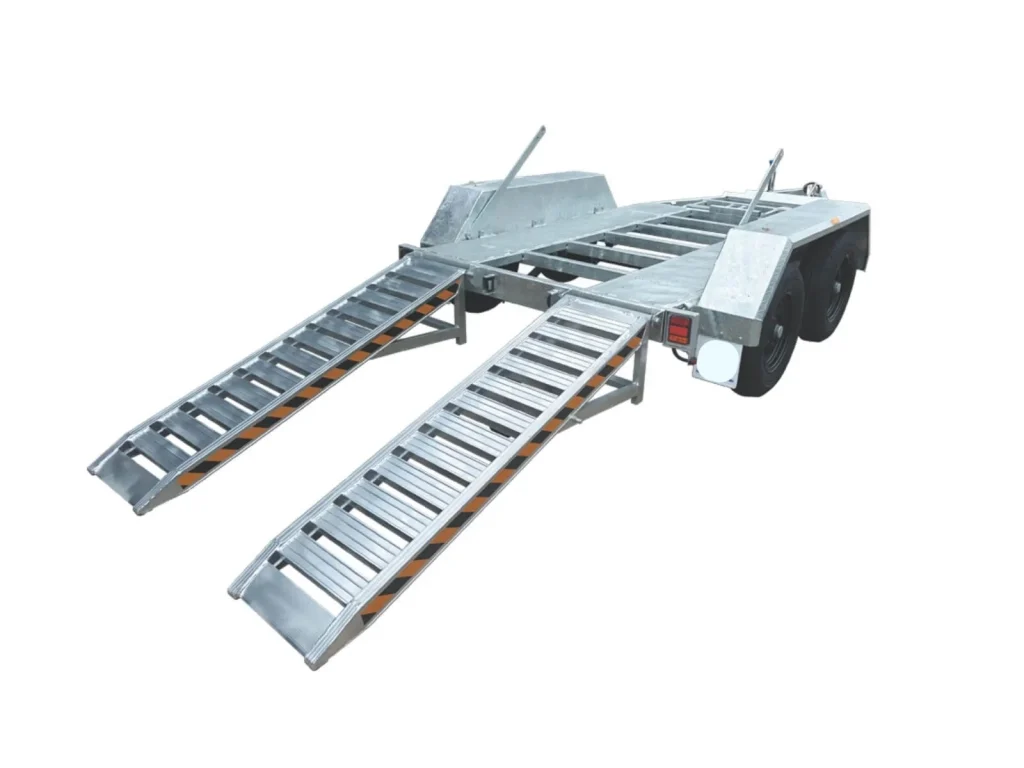

Ramps: 3.5T Rated Aluminium Ramps with Support Legs (1800 x 460mm)
Total Height (from ground to ramp): 2330mm
Drawbar: 150 x 50 x 5mm
Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Floor: Checker Plate Flooring
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: Dual Axle, 50mm Solid Drop Axle
Wheel & Tyres: New 15” Sunraysia Steel Rims Landcruiser 6 Stud, 225R15C Light Truck Tyres
Suspension: Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
Brakes: 12″ Electric Drum Brakes On Four Wheels, Dexter Hub
Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.

Optional Extras

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Optional Brackets for Attachments
Upgrade ATM-4500kg Package
Elecbrakes Brake Controller
Other Customisations

Videos

Coming soon…

Warranty

5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
Used or Second-hand trailers and parts are not covered under this warranty.

3.5T/4.5T Plant Trailer – Deck Size: 2570x1600mm Machinery Trailer With Aluminium Ramps

$8,990.00

In Stock

Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.

5-Year Structural Warranty

Register & Go in 30 Minutes

Buy Now, Pay Later

Additional Options – Priced Separately:

Available on backorder

ATM-4500kg Upgrade Package

Spare Wheel & Holder

Registration

Product price:	$8,990.00
Total options:
Order total:

Request a Quote

Choose your payment option

Pay Deposit (30%)
Pay in Full

Pay a 30% deposit

Please note: For lead times or order questions, request a quote or call. Online orders may take up to 5 days to process.

Get a Quote

Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.

Categories: Plant Trailers

SKU: TB-PLTT25x16

Description

3.5T Plant Trailers For Sale (upgradable to 4.5T) – Deck Size: 2570x1600mm

Heavy duty plant trailer with 2570mm × 1600mm deck – ideal for mini excavators, skid steers and compact machinery
Available in 3500kg ATM or upgradeable to 4500kg ATM
Fully welded hot-dip galvanised chassis built for commercial machinery transport
Suitable for most 2.6t–3.6t mini excavators and machinery
Lightweight but heavy duty aluminium loading ramps included

Specifications

ATM: 3500kg (upgradable to 4500kg)
Tare: 780kg (840kg for 4.5T ATM)
Loading Capacity: 2600kg (upgradable to 3660kg)
Internal Size: 2570 x 1600mm
Ramps: 3.5T Rated Aluminium Ramps with Support Legs (1800 x 460mm)
Total Height (from ground to ramp): 2330mm
Drawbar: 150 x 50 x 5mm
Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Floor: Checker Plate Flooring
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: Dual Axle, 50mm Solid Drop Axle
Wheel & Tyres: New 15” Sunraysia Steel Rims Landcruiser 6 Stud, 225R15C Light Truck Tyres
Suspension: Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
Brakes: 12″ Electric Drum Brakes On Four Wheels, Dexter Hub
Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.

Optional Extras

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Optional Brackets for Attachments
Upgrade ATM-4500kg Package
Elecbrakes Brake Controller
Other Customisations

Videos

Coming soon…

Warranty

5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
Used or Second-hand trailers and parts are not covered under this warranty.
