Description
- Rust-Resistant Galvanised Trailer
- Customisable Mower Box
- Customisable Side Tools Box
Specifications
- ATM: 2000kg (3200kg Available)
- Tare: 700kg
- Loading Capacity: 1300kg
- Exterior Length: 4.43m
- Exterior Width: 2.0m
- Internal Size: 2400 x 1530 x 300mm
- Drawbar: 1900mm; 100 x 50 x 3mm RHS
- Coupling: 50mm Over-ride Braked Coupling (ADR Standards)
- Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Round Solid Axle
- Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
- Suspension: 6 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 10″ Mechanical Disc Brake
- Jockey Wheel: 8” Swing Up Heavy Duty
- Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
- Extended Step-up Platforms On Both Sides
- Tie Down Rails All Around
- Ladder Racks Holders
- Cage: Enclosed 900mm

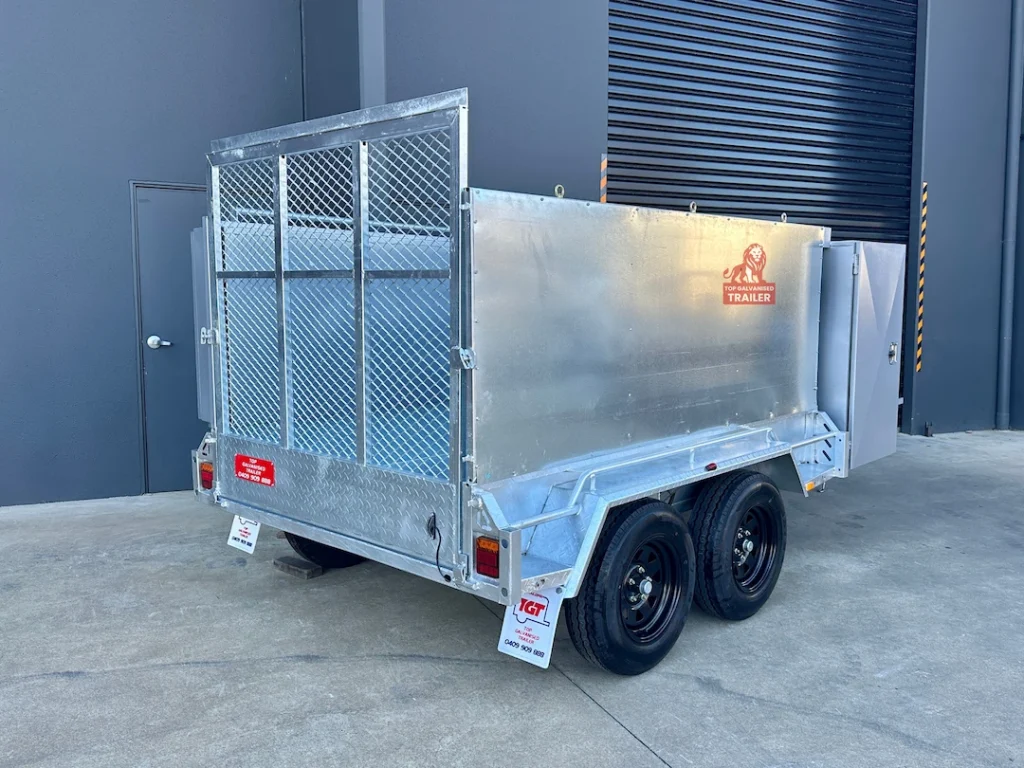

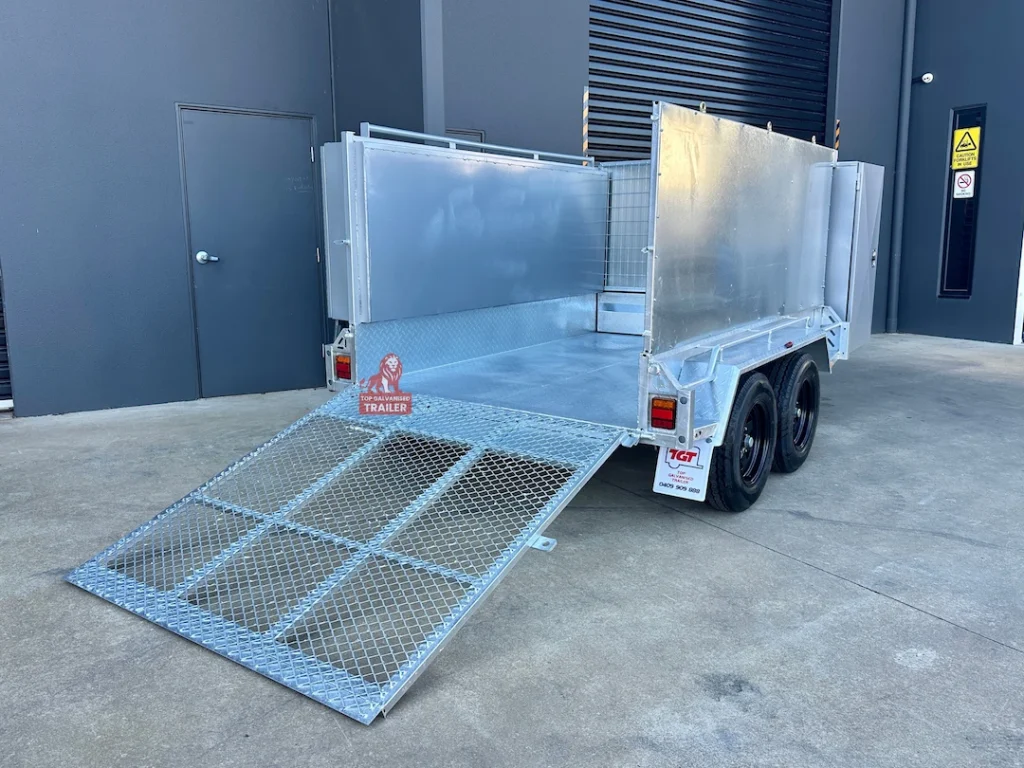

- Ramp: 1.5m Tailgate Mesh Ramp (Extra Option $550)

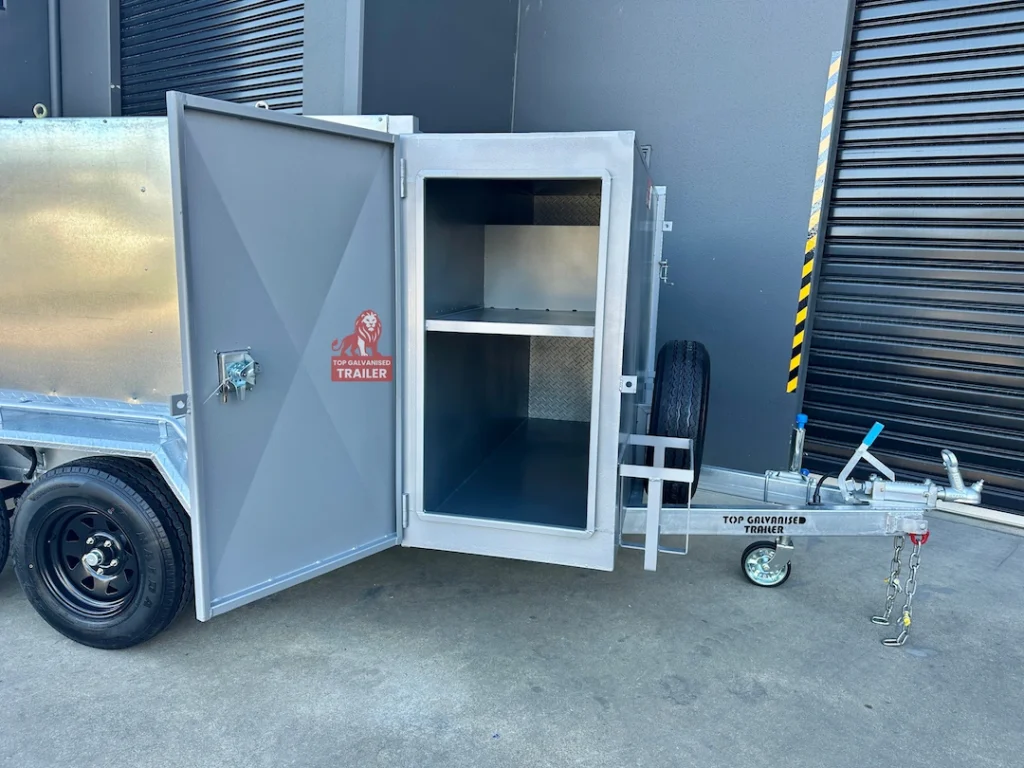

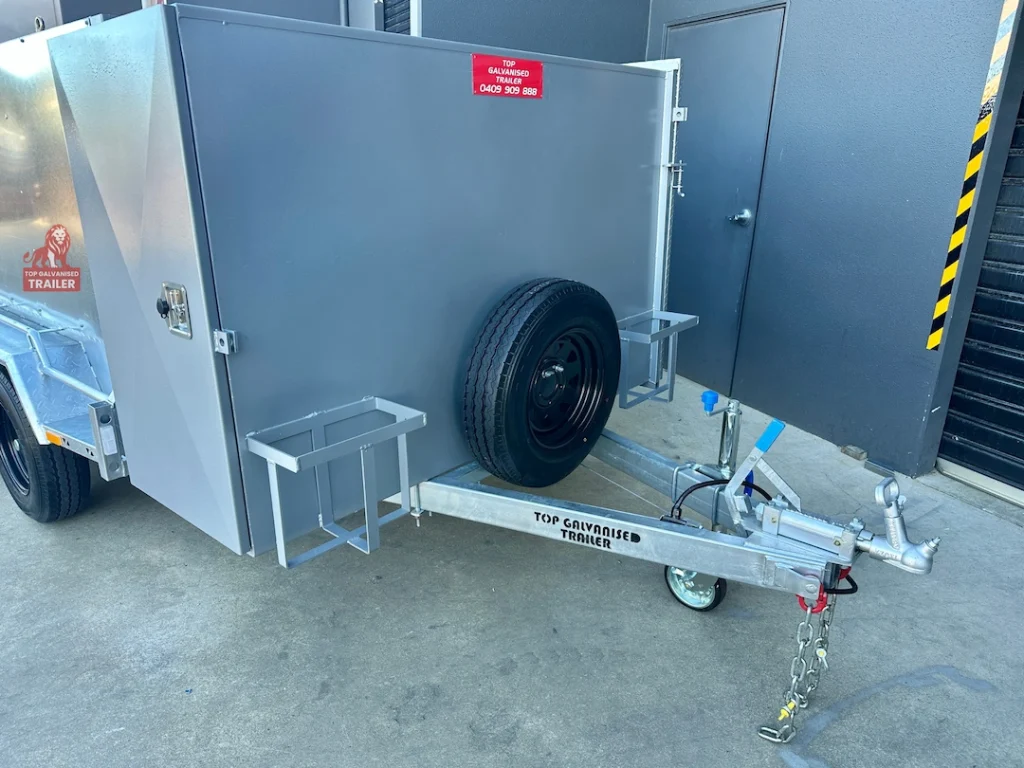

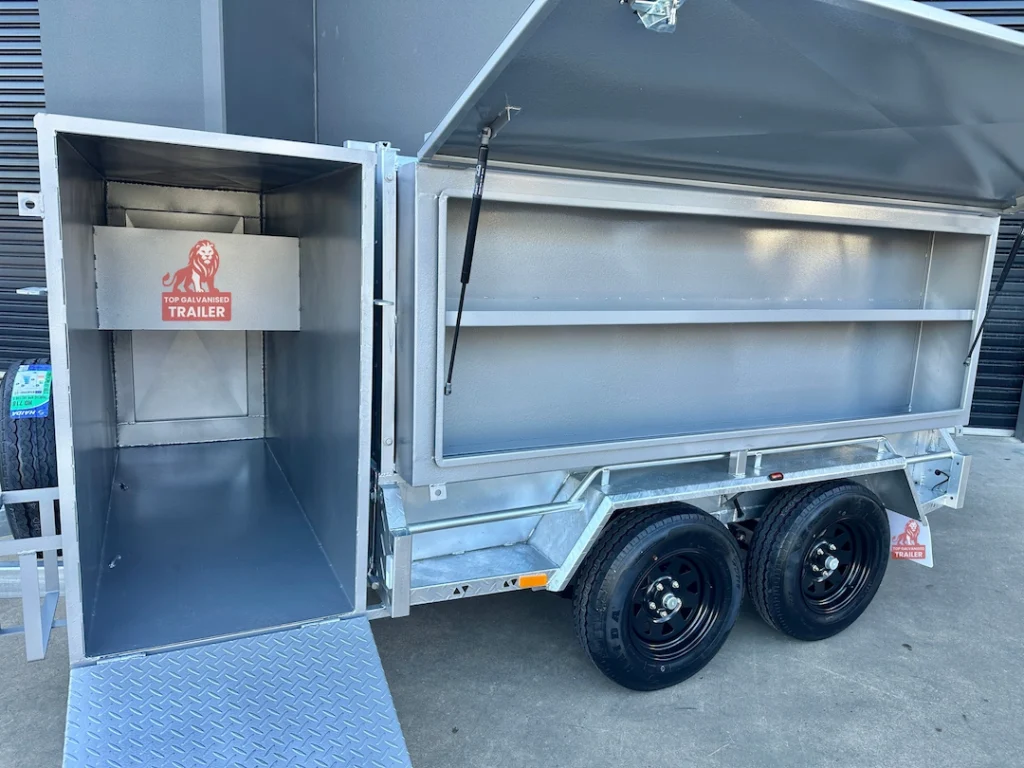

- Front Mower Box: Silver or Charcoal Painted Front Lawn Mower Box with Ramp & Door (Customisable)

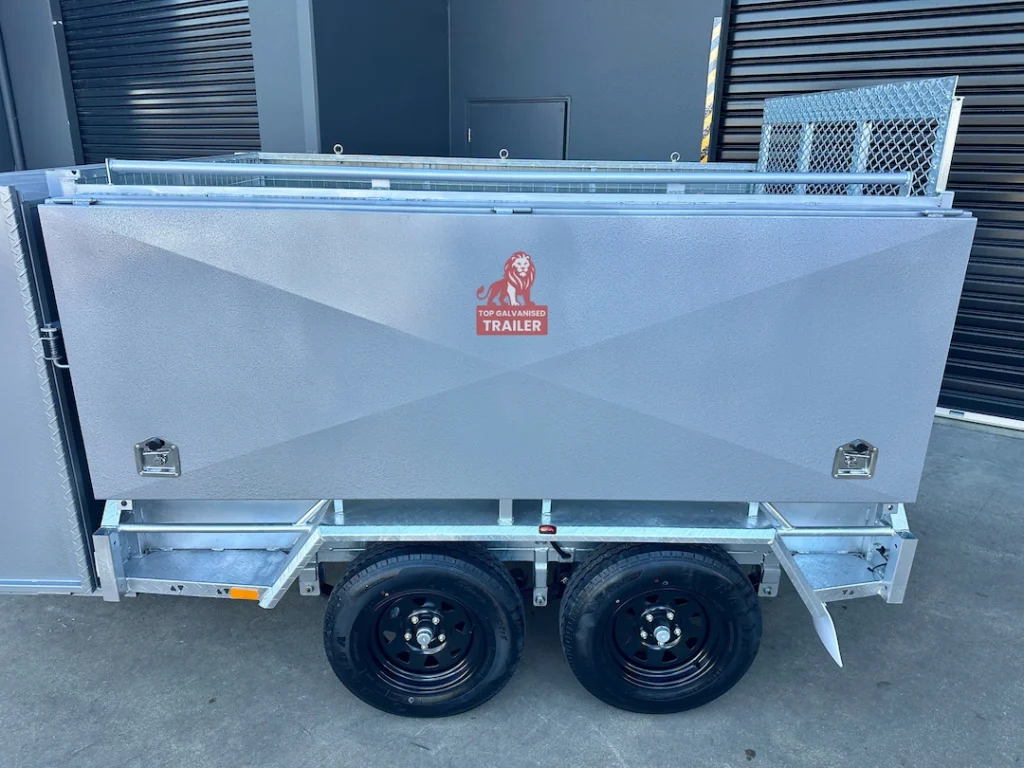

- Side Toolbox: Silver or Charcoal Painted Side Tools Box (Customisable)
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Ladder Racks (Pair)
- Tailgate Mesh Ramps
- Aluminium Loading Ramps
- Other Modifications
Videos
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.

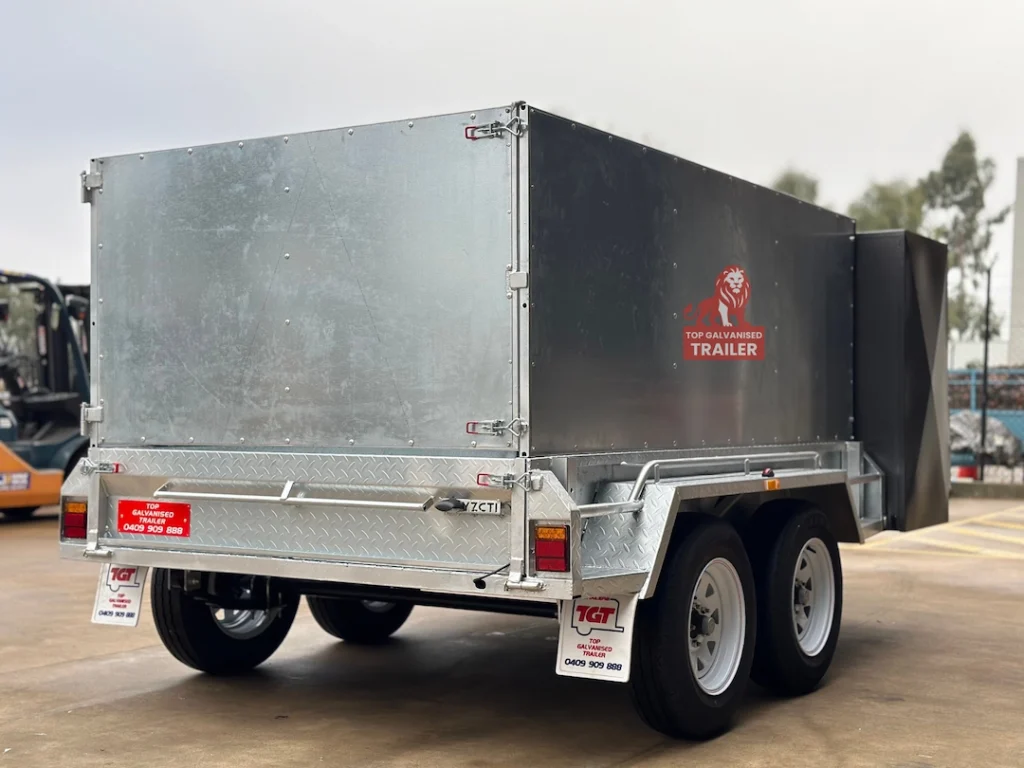

8×5 Lawn Mower Trailer Tandem Galvanised Gardening Trailer with Mower Box & Side Box
