We offer the best 16×8 Flat Top Trailers produced using high-quality materials, making them long-lasting, durable, with high load-bearing. We only provide fully welded trailers for Australian conditions.
Top Galvanised Trailer is Approved and Certified under the Road Vehicle Standards Act (RVSA).
Clearance Sale. Limited Stock Available.
- ATM: 3500kg
- Tare: 1270kg
- Loading Capacity: 2230kg
- Exterior Length: 6.75m
- Exterior Width: 2.40m
- Internal Size: 4720 x 2350 x 300mm
- Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
- Coupling: 50mm Quick Release Coupling 3500kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle
- Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
- Sides: 300mm; Removable Side & Rear Drop Down Gates
- Underbody Ramps: 2m, 2Ton Slide Loading Ramps
- Tie Down Rails All Around
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Aluminium Toolbox
- Mowerpad
- Upgrade to ATM-4500kg
- Elecbrakes Brake Controller
- Other Customisations
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.

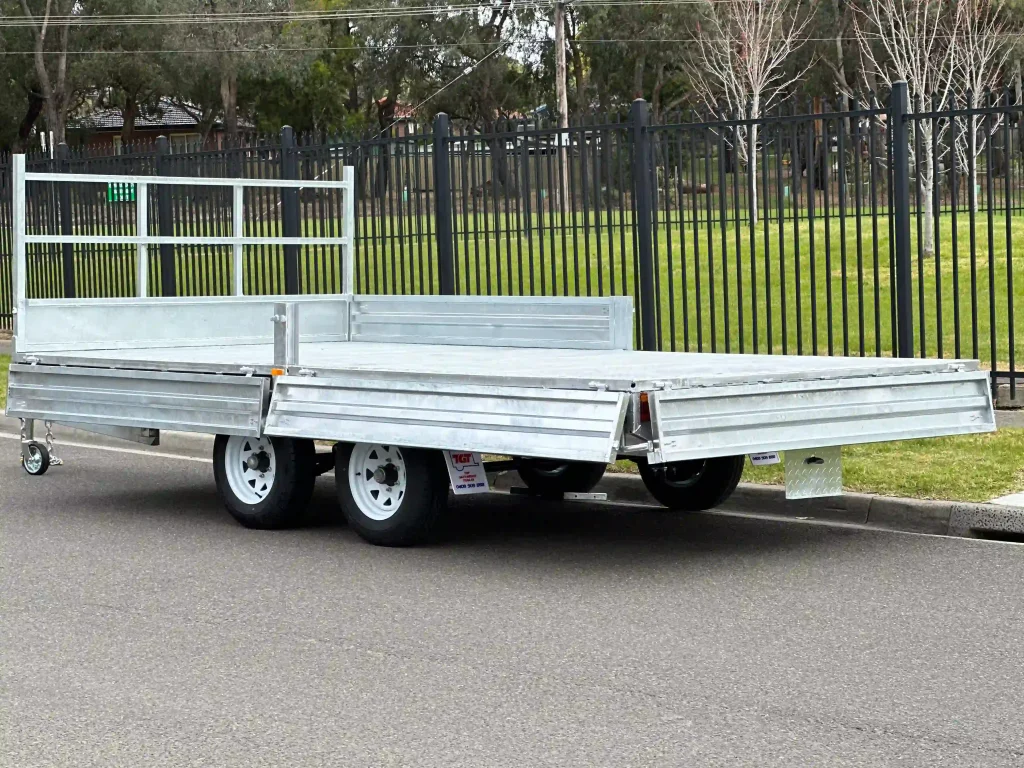

16×8 Flat Top Trailer Galvanised with Ramps 3500kg ATM
From
$11,600.00 Original price was: $11,600.00.$10,600.00Current price is: $10,600.00.
$1000 Off
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later

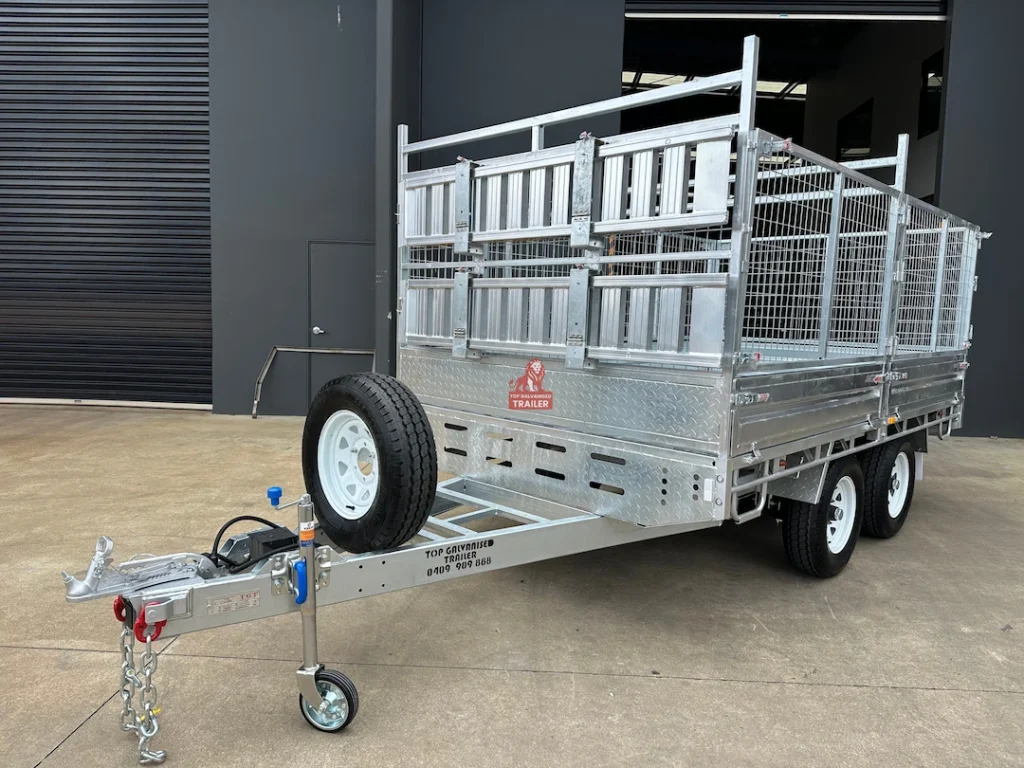

Note: Images are for illustrative purposes only. Optional accessories such as cage and spare wheel are sold separately. Please refer to the form below for pricing details.
Click the "Add to Cart" icon to request a formal quote or place an order with your selected optional items (subject to availability).
We offer the best 16×8 Flat Top Trailers produced using high-quality materials, making them long-lasting, durable, with high load-bearing. We only provide fully welded trailers for Australian conditions.
Top Galvanised Trailer is Approved and Certified under the Road Vehicle Standards Act (RVSA).
Clearance Sale. Limited Stock Available.
- ATM: 3500kg
- Tare: 1270kg
- Loading Capacity: 2230kg
- Exterior Length: 6.75m
- Exterior Width: 2.40m
- Internal Size: 4720 x 2350 x 300mm
- Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
- Coupling: 50mm Quick Release Coupling 3500kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle
- Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
- Sides: 300mm; Removable Side & Rear Drop Down Gates
- Underbody Ramps: 2m, 2Ton Slide Loading Ramps
- Tie Down Rails All Around
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Aluminium Toolbox
- Mowerpad
- Upgrade to ATM-4500kg
- Elecbrakes Brake Controller
- Other Customisations
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.
