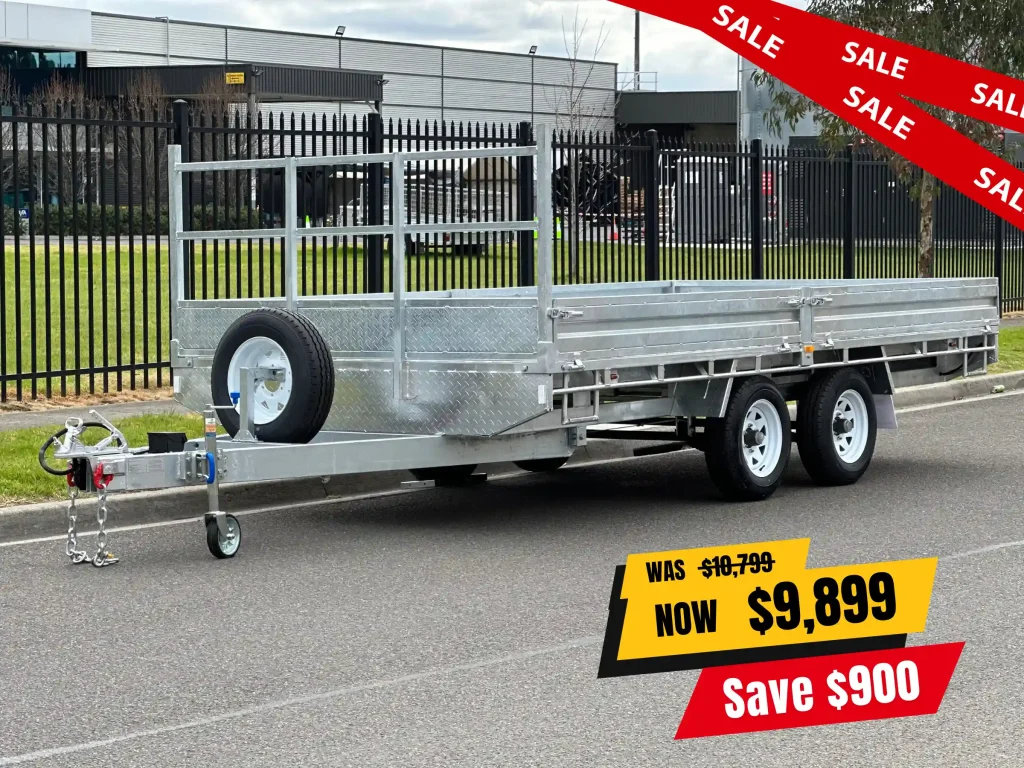

16×8 Flat Top Trailer with Ramps Galvanised 3500kg ATM
- ATM: 3500 kg
- Tare: 1340 kg
- Loading Capacity: 2160kg
- Exterior Length: 6750mm
- Exterior Width: 2400mm
- Internal Size: 4720 x 2350 x 300mm
- Drawbar: 1900 mm; 150 x 50 x 5mm RHS
-
Coupling: 50 mm Quick Release Coupling 3500 kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Colour: Silver
-
Checker Plate: 2.5mm
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: 50 mm Round Solid 12″ Dual Dexter Axle
-
Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
-
Wheel & Tyres: 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Light Truck Tyres
-
Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
-
Sides: 400 mm; Removable Side & Rear Drop Down Gates
-
Suspension: 7 Leaf (8mm) Rocker Roller Springs; Fully Welded Spring Hangers
– Improved Stability,
– Increased Load Capacity,
– Longer Lifespan & Better Handling
-
Brakes: 12″ Electric Drum on Four Wheels
-
Ramps: 2.5m long; 2T; Galvanised Underbody Slide Loading Ramps
- Warranty: 24 Months Structural
- Spare Wheel: $200
- Spare Wheel Holder: $60
- 12 Months VIC Registration: $150
- Toolbox 1200*400*360mm: $500
Advantages of Flat Top Trailers compared to Box Trailers:
- Versatility: A forklift can more quickly and efficiently load and unload products because of the trailer’s flat, open-top surface.
- Size and Height: Compared to box trailers, flat top trailers are wider and taller, enabling the transportation of larger or taller objects.
- Weight Distribution: Flat top trailers feature a flatter surface that allows for more even weight distribution, suitable for heavy or irregularly shaped cargo.
