Description

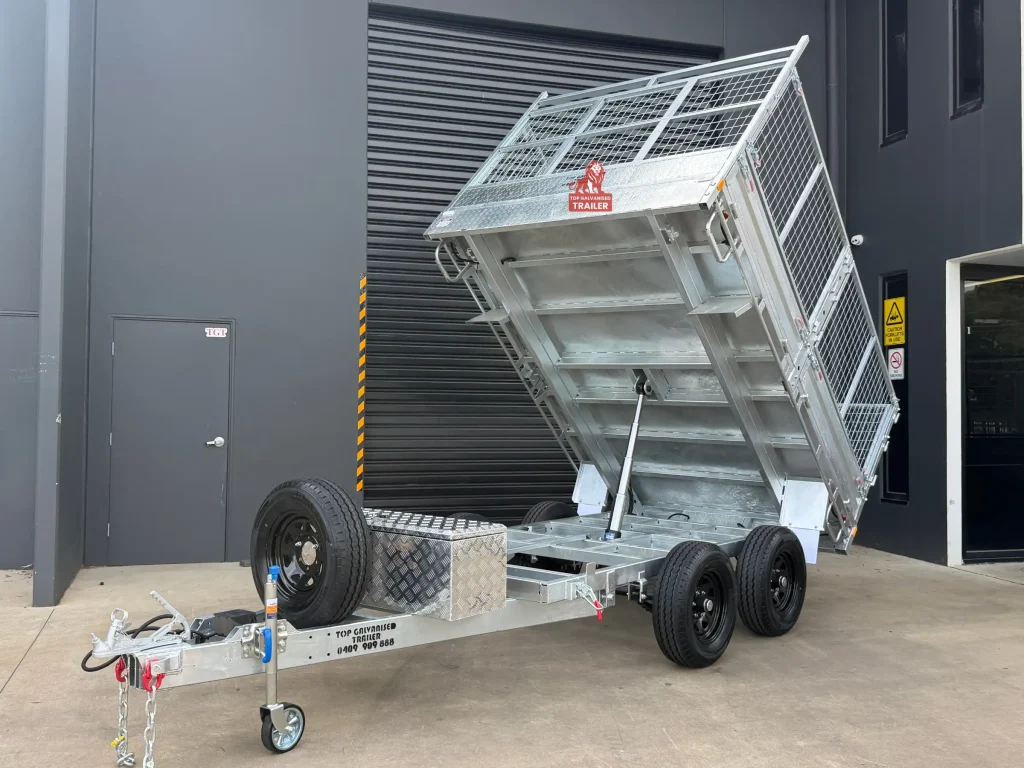

Flat Top Tipper Trailer, also referred to as dump trailers, can be a useful tool for companies that frequently transport and dump heavy materials like soil, gravel, and construction waste. Its solid structure and hydraulic tilt feature make it simple to quickly and efficiently transport and dump heavy loads, saving you time and labour. Moreover, its hot-dipped galvanised design can be utilised in tough outdoor environments without fear of rust or corrosion. Check out our NEW 3-Way Hydraulic Tipper Trailer that tilts in 3 directions: 12×7 3-Way.

Specifications

ATM: 3500kg (upgradable to 4500kg)
Tare: 1300kg
Loading Capacity: 2200kg (upgradable to 3150kg)
Exterior Length: 4.90m
Exterior Width: 2.10m
Internal Size: 2910 x 2010 x 300mm

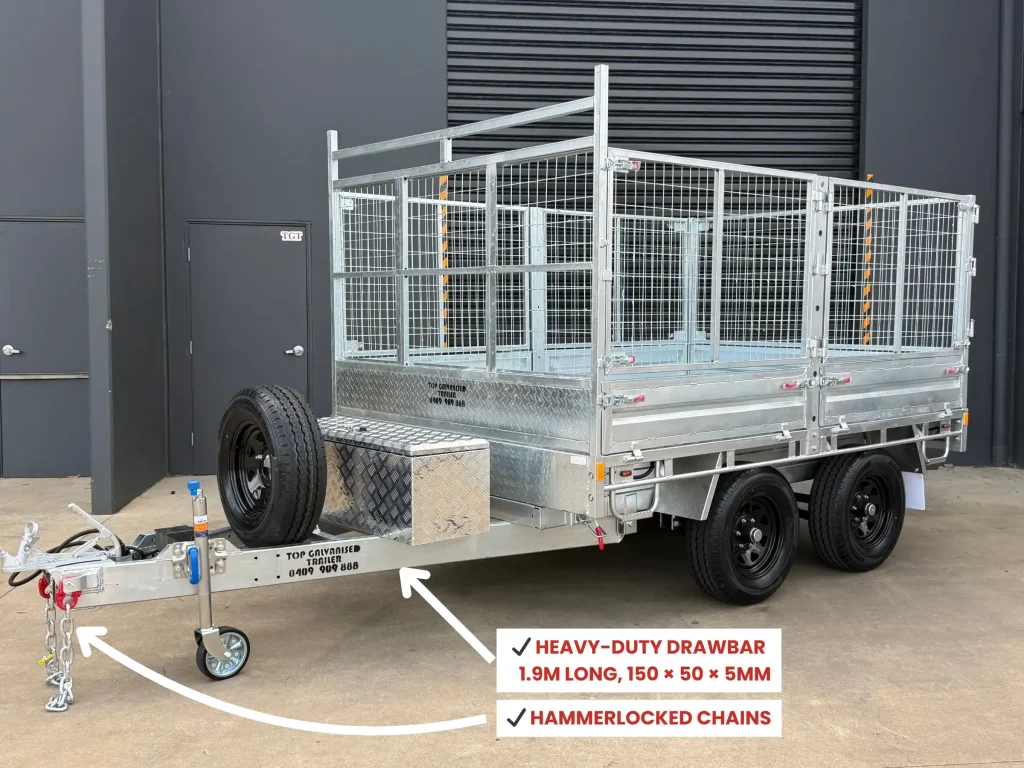

Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
Chassis: Heavy Duty 100x50x5mm RHS
Coupling: 50mm Quick Release Coupling 3500kg
Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Checker Plate: 2.5mm, Fully Welded Body & Chassis
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: Dual Axle, 50mm Solid Axle
Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
Jockey Wheel: 8” Swing Up Heavy Duty
Sides: 300mm; Removable Side & Rear Drop Down Gates
Tie Down Rails All Around

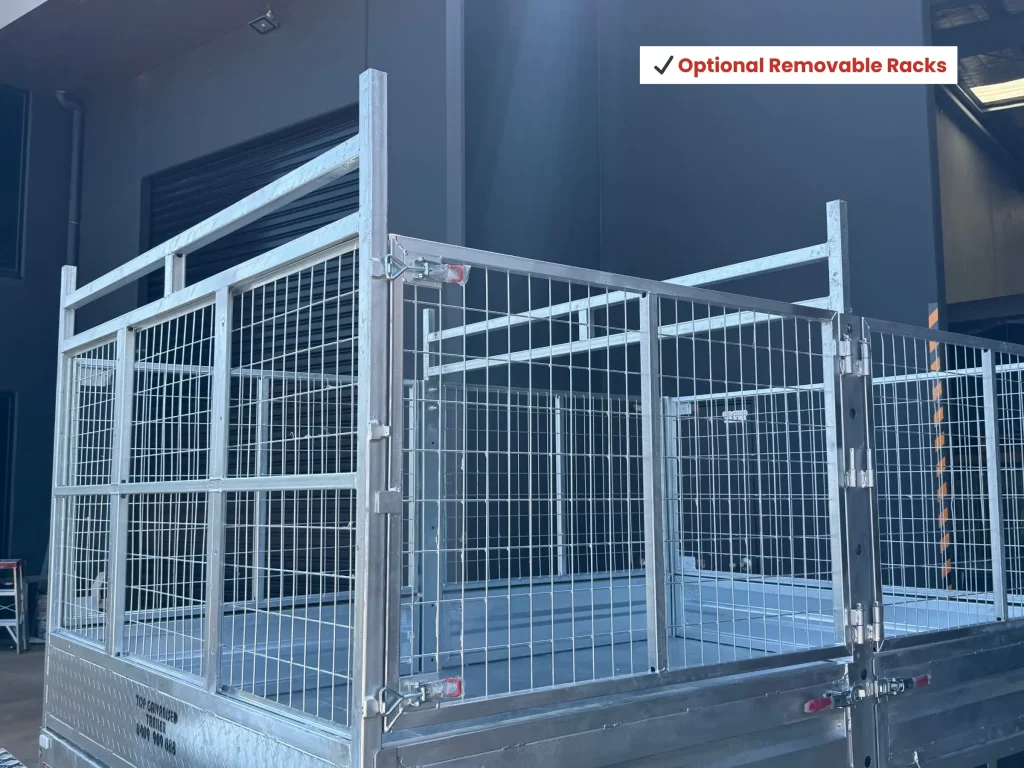

Cage: 900mm High, Removable
Toolbox: Fitted Drawbar Aluminium Toolbox
Hydraulic Pump: 5000kg, 1.2m Hydraulic Cylinder (4 Stages) with Hydraulic Power Pack
Battery: 120 AMP Deep Cycle Battery

Optional Extras

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Aluminium Ramps (2m, 2 or 3 tonne rated)
Aluminium Ramp Holders
Aluminium Toolbox
Upgrade to ATM-4500kg
Elecbrakes Brake Controller
Other Customisations

Videos

Warranty

5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
Used or Second-hand trailers and parts are not covered under this warranty.

10×7 Flat Top Hydraulic Tipper Trailer Galvanised 3.5T/4.5T ATM (With 900mm Cage)

$12,150.00 ~~$12,500.00~~ $350.00 off

In Stock

Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.

5-Year Structural Warranty

Register & Go in 30 Minutes

Buy Now, Pay Later

Additional Options – Priced Separately:

ATM-4500kg Upgrade Package

Spare Wheel (225/70R15C)

Aluminium Ramps

Ramp Holders - attaches to headboard

Ladder Racks

Registration

Product price:	$12,150.00
Total options:
Order total:

Request a Quote

Choose your payment option

Pay Deposit (30%)
Pay in Full

Pay a 30% deposit

Please note: For lead times or order questions, request a quote or call. Online orders may take up to 5 days to process.

Get a Quote

Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.

Categories: Flat Top Trailers, Hydraulic Tipper Trailers

SKU: HYDFTTBT35107
