Description

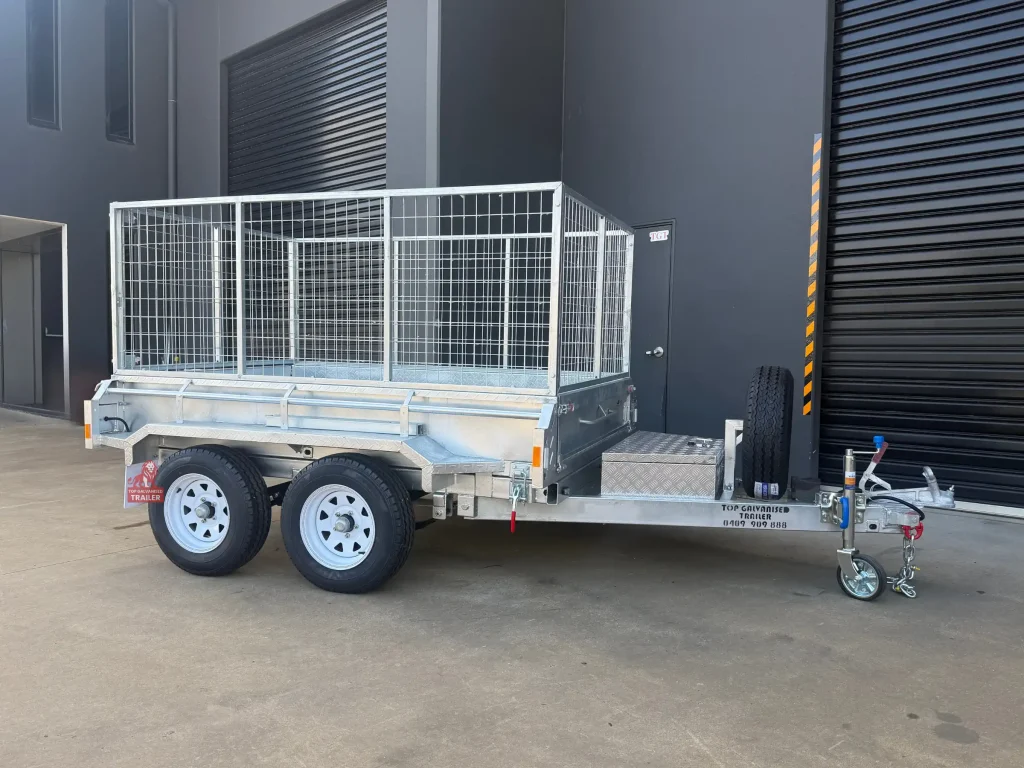

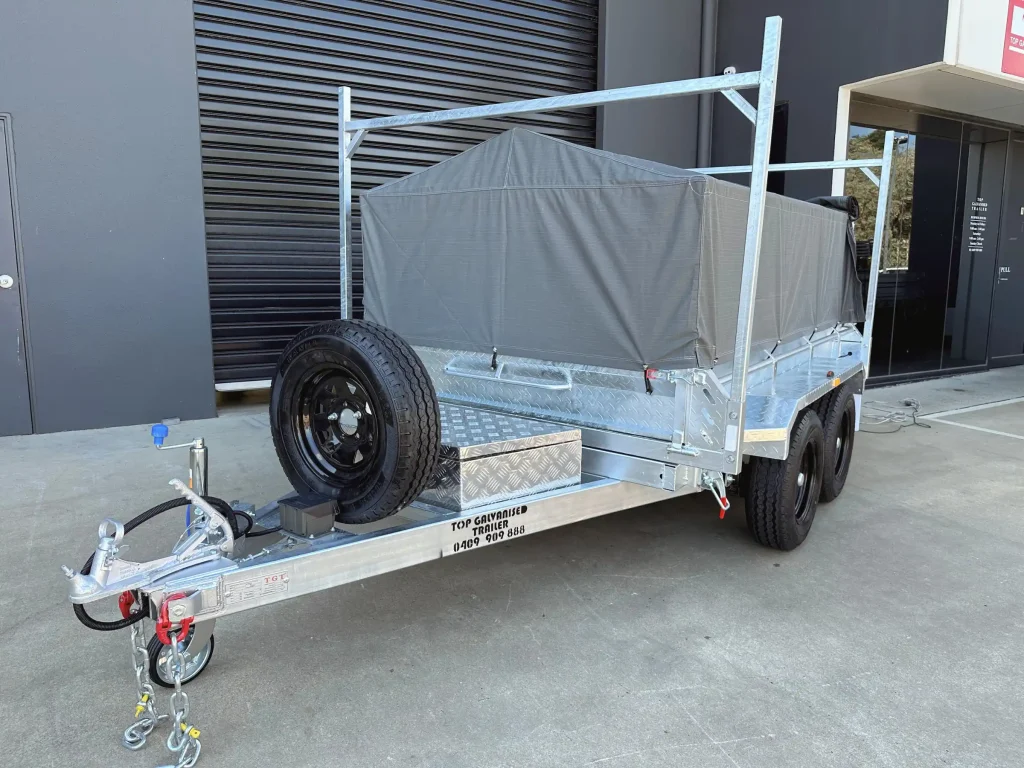

8×5 Tipper Trailer Galvanised Hydraulic Tipper Trailer 3.2T ATM
If you’re dumping heavy loads every day, this 8×5 tipper trailer is the one for you. Strong, galvanised, and designed for real work, it takes the hard part out of loading and unloading.

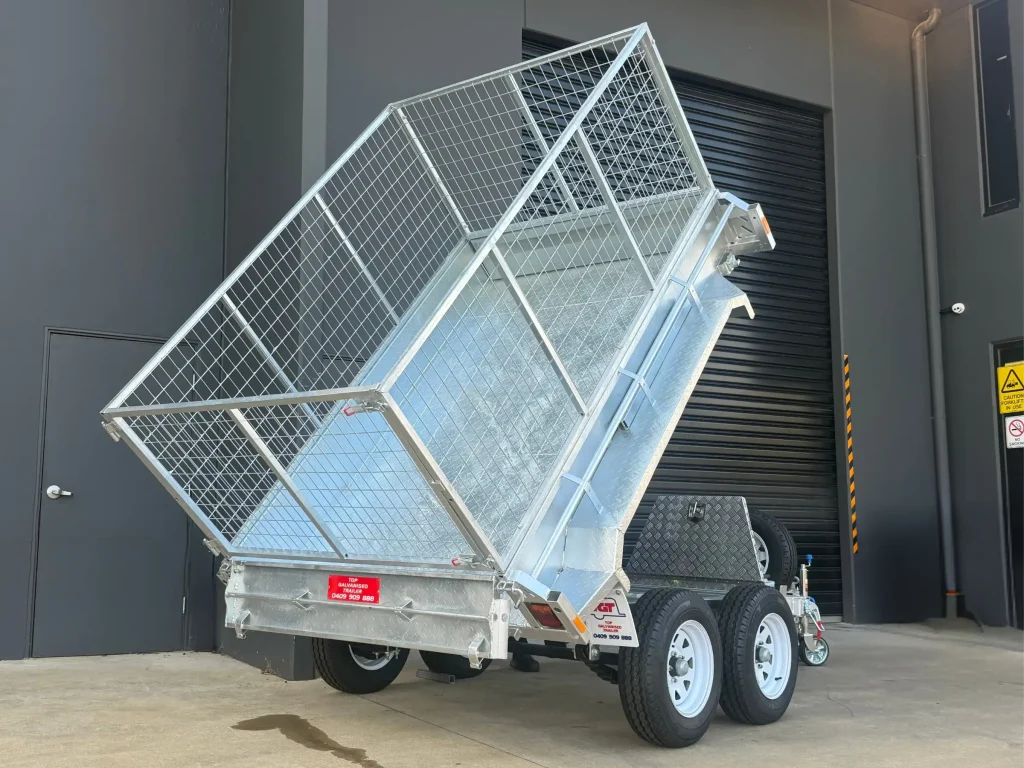

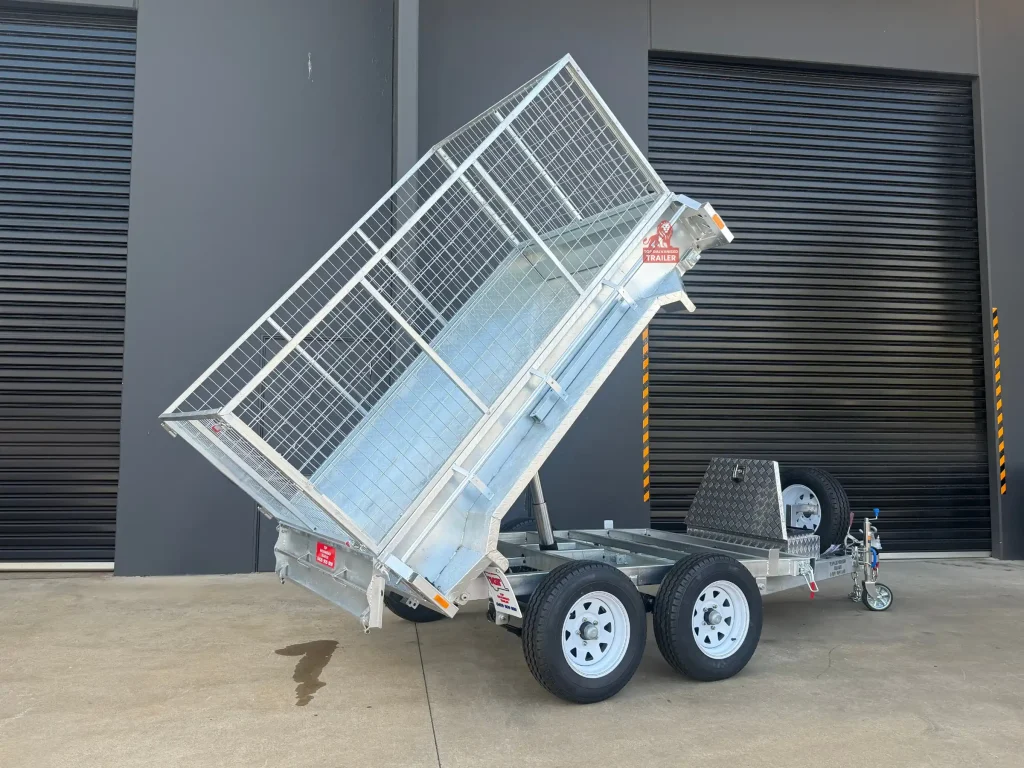

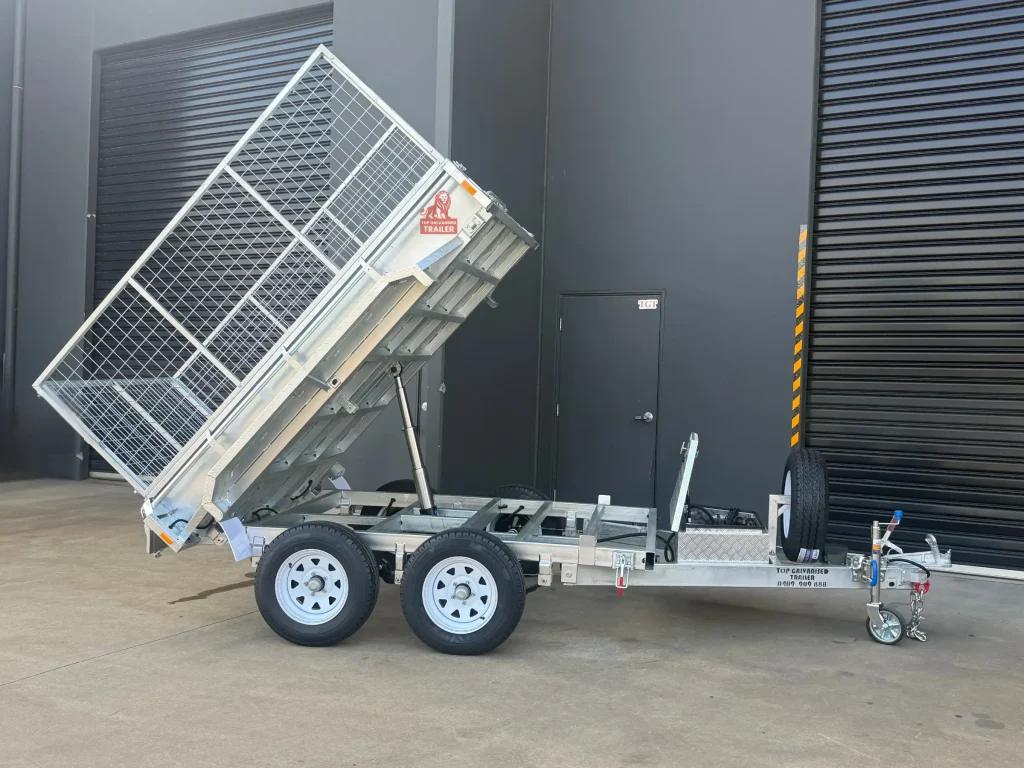

At the end of a long day, the last thing you want is to shovel out dirt, rubble, or green waste. With this 8×5 hydraulic tipper trailer, you simply press a button and tip your load in seconds. It’s faster, cleaner, and saves serious time and labour on every job.

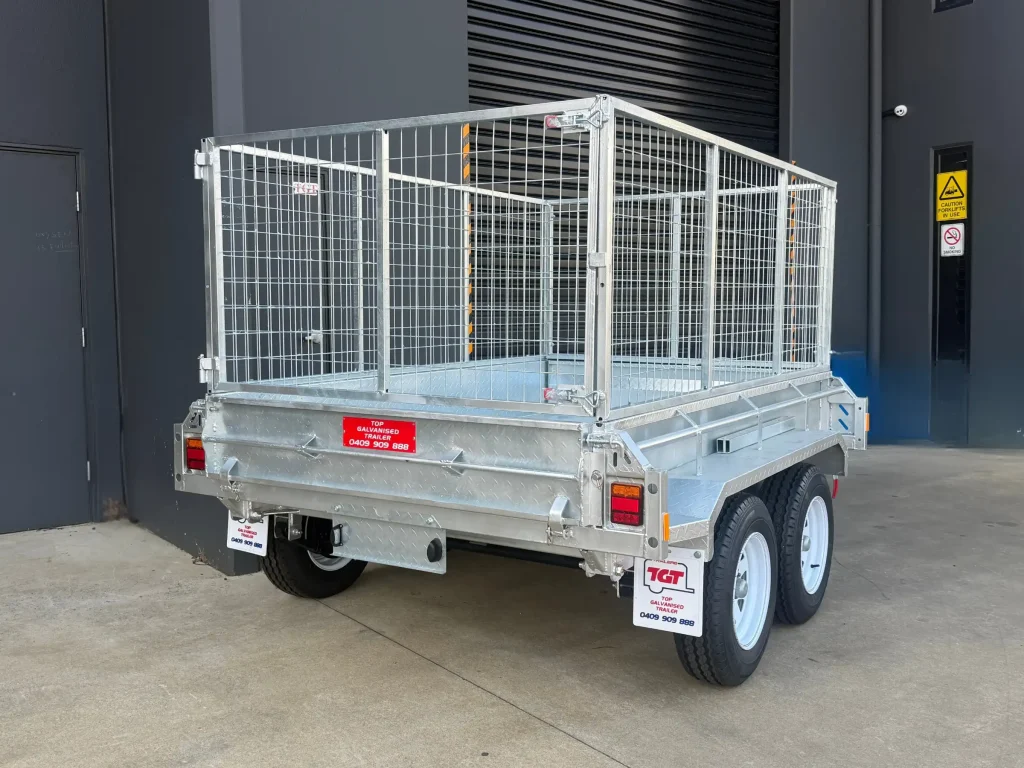

The build quality is where it stands apart. This is a hot dip galvanised tipper trailer, fully coated in zinc to prevent rust. Rain, mud, or harsh job sites won’t affect it. No repainting, no ongoing maintenance—just long-term durability that can last 20+ years.
Underneath, it’s designed to handle weight with confidence. As an 8×5 tandem tipper trailer, it features electric brakes on all wheels, giving you better stopping power when fully loaded. Plus, the rocker roller suspension adds another level of performance. It spreads the load evenly, reduces bounce, and delivers a smoother tow compared to basic suspension systems. That means less strain on your trailer and a more stable ride overall.
Every detail is built for strength and safety. A fully welded structure ensures durability, while Hammerlock shackle chains provide a more secure connection than standard welded options.
Why this 8×5 tipper trailer stands out:
- 5 Year Structural Warranty for peace of mind
- Hot dip galvanised – built to resist rust for decades
- Electric brakes for safer heavy load towing
- Smooth, stable ride with rocker roller suspension
- Australian assembled with premium components
Specifications
- ATM: 3200kg
- Tare: 900kg (Inc. cage)
- Loading Capacity: 2300kg
- Exterior Length: 4.19m
- Exterior Width: 2.02m
- Internal Size: 2400 x 1530 x 300mm
- Drawbar: 1600mm; 120 x 50 x 5mm RHS (Welded & Bolted)
- Coupling: 50mm Quick Release Coupling 3500kg

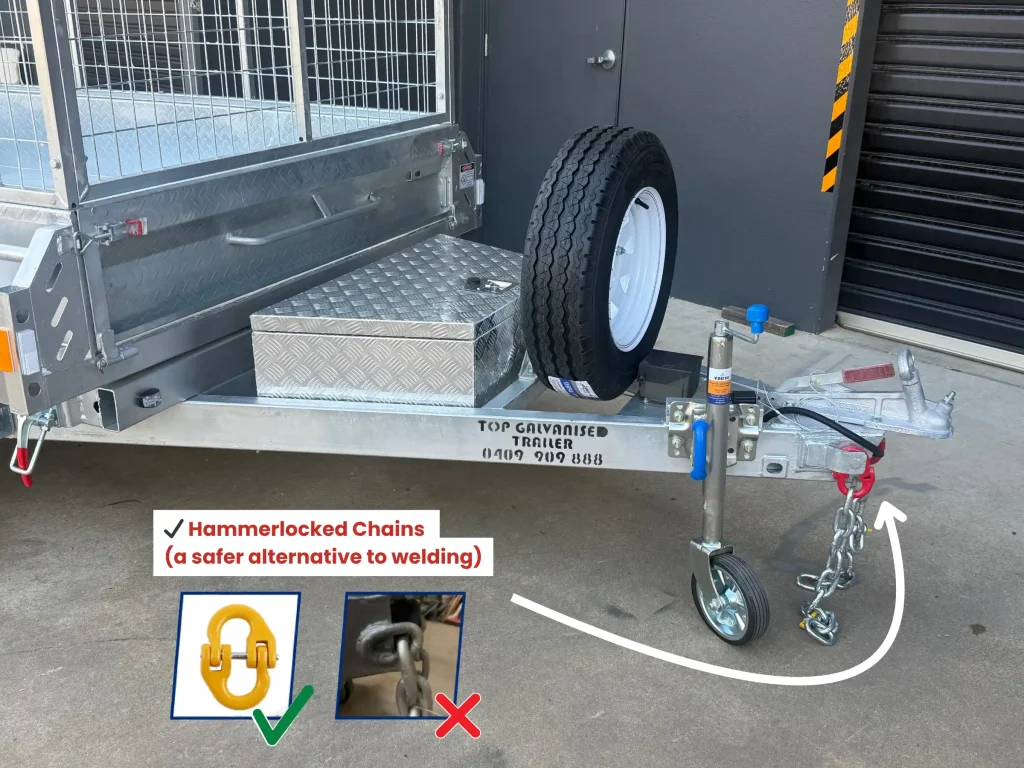

- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: 50mm Dual Solid Axles
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs– NOT Slipper; Fully Welded Spring Hangers
- Brakes: 10″ Electric Drum Brakes On Four Wheels with Parallel Bearings
- Jockey Wheel: 8” Swing Up Heavy Duty
- Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
- Step-up Platforms On Both Sides
- Tie Down Rails All Around
- Ladder Racks Holders
- Cage: 600 or 900mm (Sold Separately)
- Toolbox: Trailer Drawbar Aluminium Toolbox

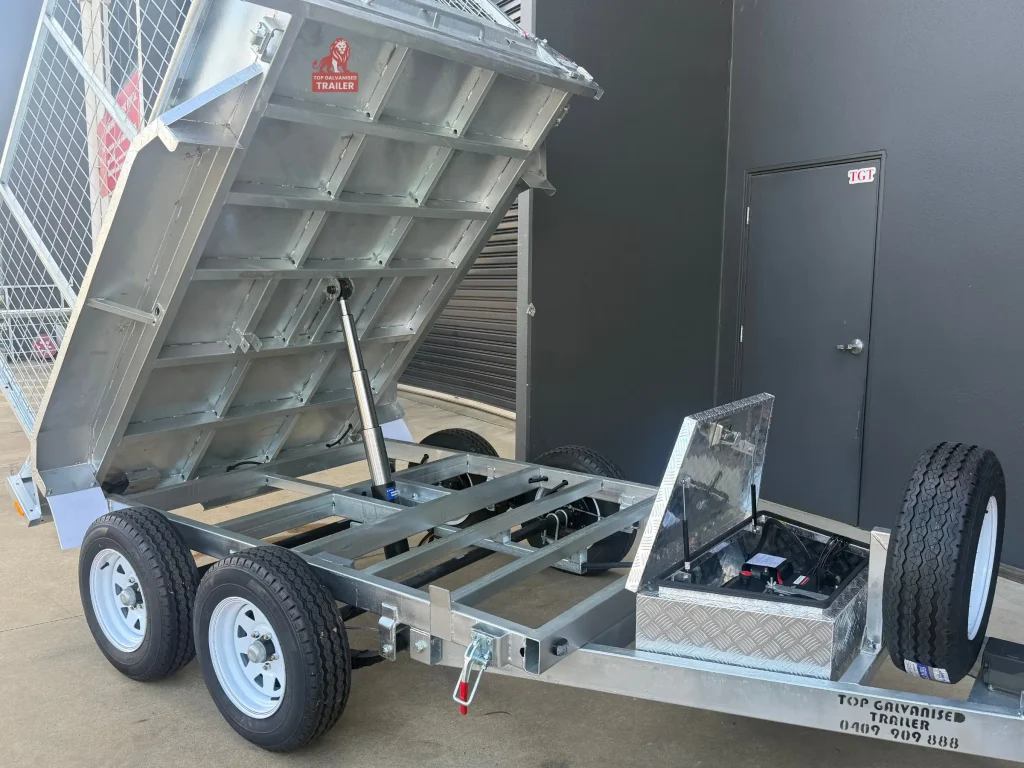

- Hydraulic Pump: 4.5 Ton, 1.2m Hydraulic Cylinder (4 Stages) with Hydraulic Power Pack
- Battery: 120 AMP Deep Cycle Battery
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised Cage 600/900mm
- Canvas Cover
- Ladder Racks (Pair)

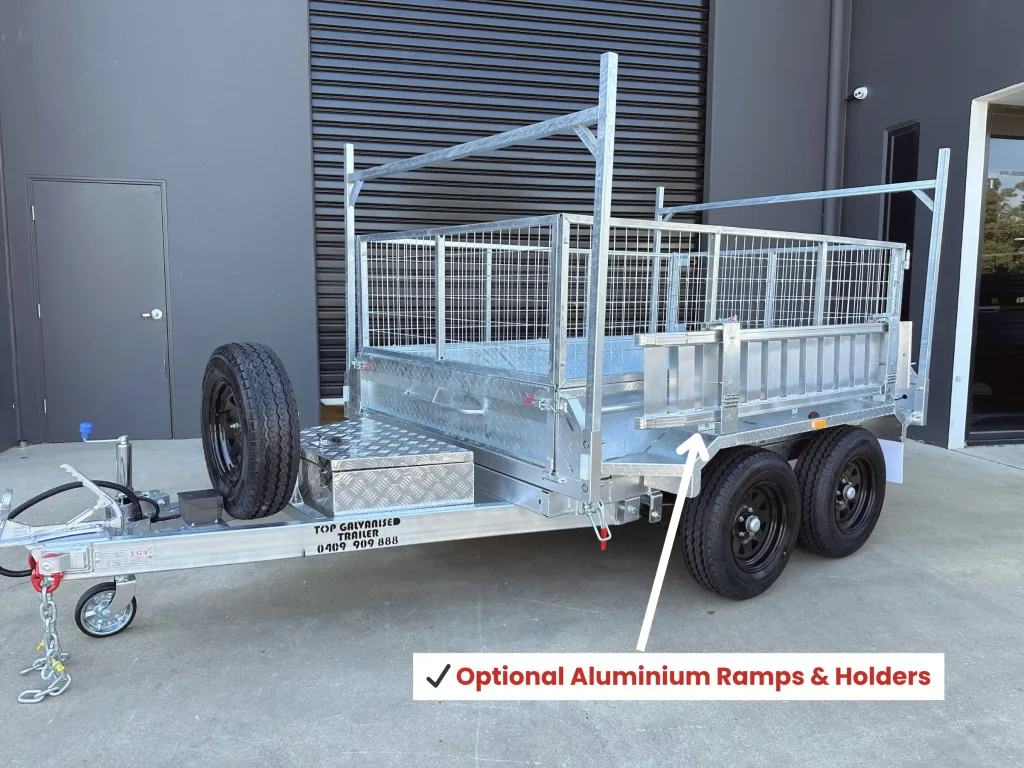

- Aluminium Loading Ramps (2.0T, 2000 x 350 x 82mm)
- Aluminium Loading Ramps (3.0T, 2000 x 350 x 92mm)
- Aluminium Ramp Holders (attaches to mudguards)
- Elecbrakes Brake Controller
- Other Customisations
Videos
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.
