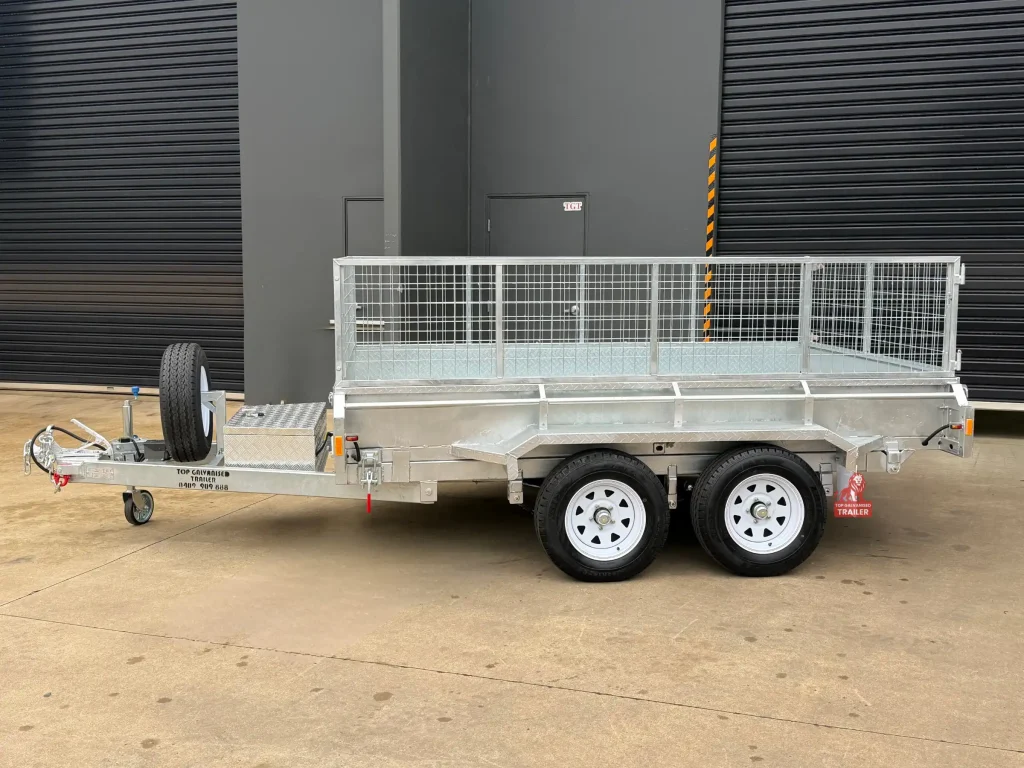

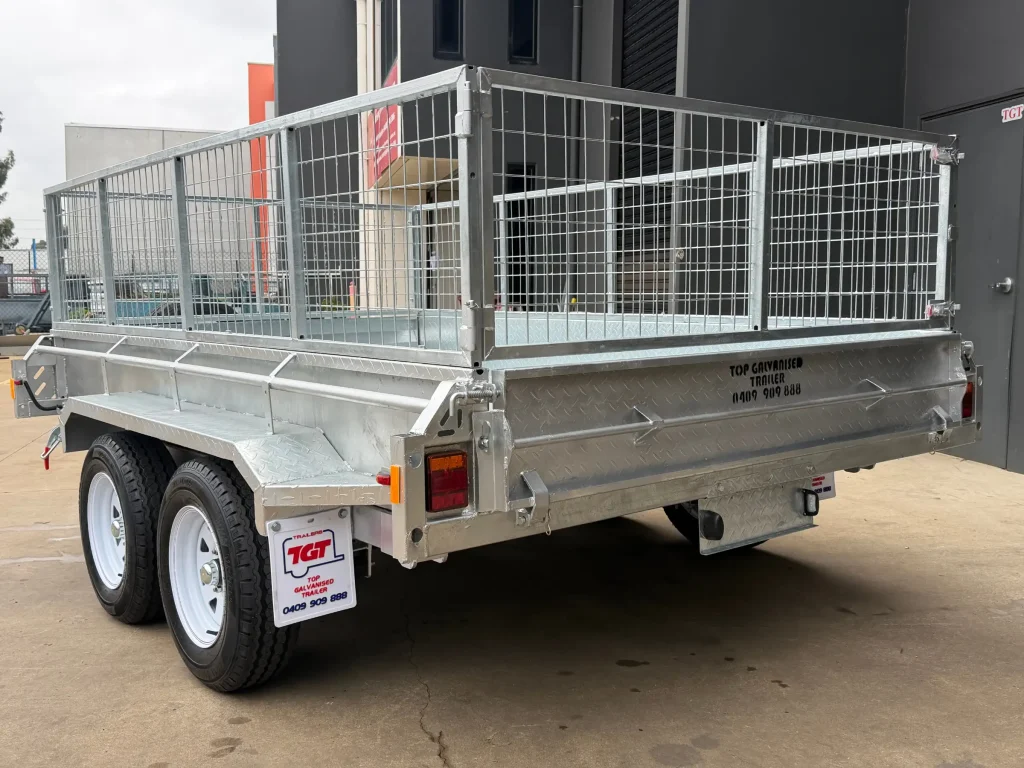

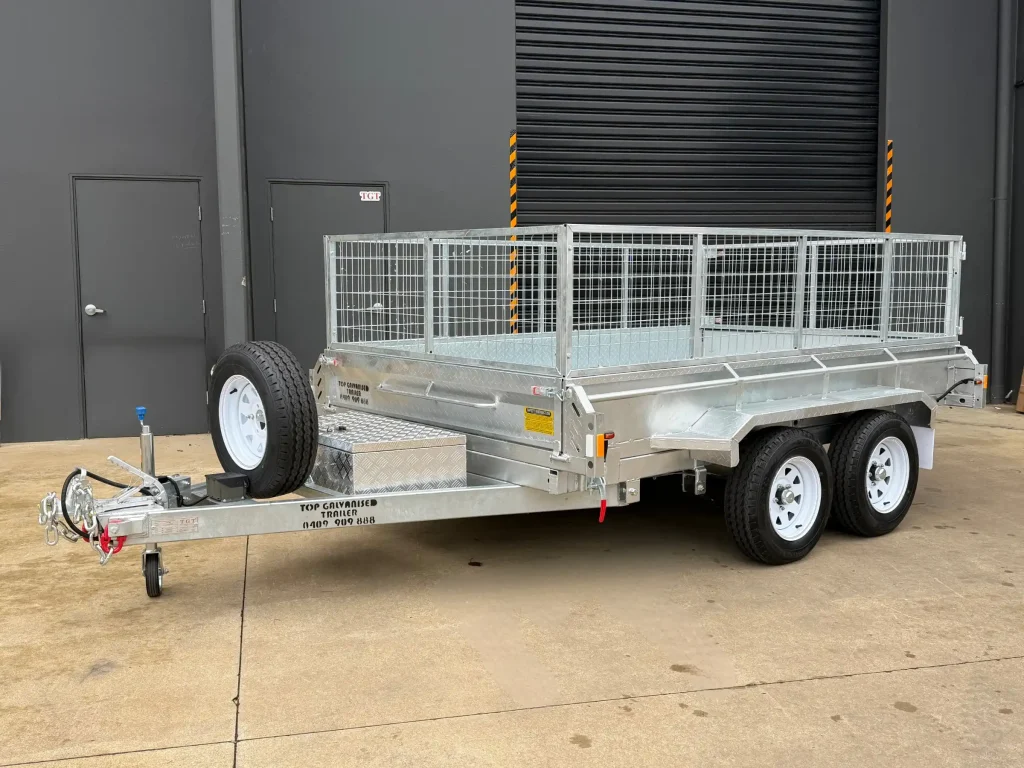

10×6 Hydraulic Tipper Trailer Galvanised 3200kg ATM

$9,299.00

Hydraulic tipper trailer with a 3200kg ATM: a cost-effective and lighter alternative to the standard 3.5-ton tipper trailer. Designed for those who need reliable tipping functionality without the added weight and expense.

Note: Images are for illustration only. Optional extras like the cage and spare wheel are sold separately. See the form below for pricing.

Product total
Options total
Grand total

Click the “Add to Cart” icon to request a formal quote or place an order with your selected optional items (subject to availability).

10×6 Hydraulic Tipper Trailer Galvanised 3000kg ATM
Dimensions
  • ATM: 3200 kg
  • Tare: 920 kg (Exclude cage)
  • Loading Capacity: 2280 kg
  • Exterior Length: 5.05 m
  • Exterior Width: 2.32 m
  • Internal Size: 3040 x 1830 x 300 mm
Specifications
  • Drawbar: 1600 mm; 150 x 50 x 5mm RHS

  • Coupling: 50 mm Quick Release Coupling 3500 kg

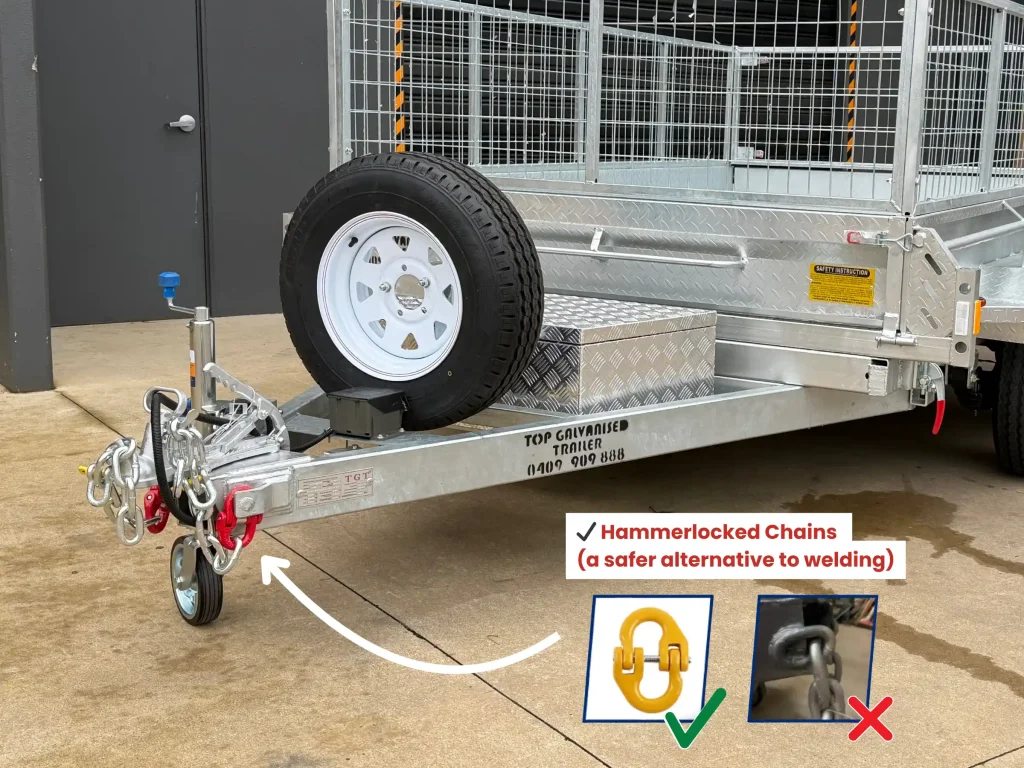

  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Colour: Silver

  • Checker Plate: 2.5mm

  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: 50 mm Round Solid Dual Axle

  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)

  • Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres

  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.

  • Sides: 300 mm Folded Up (Not Bolted);

    – Full Step-Up Platforms on Both Sides.

    – Ladder Rack Holder on each side.

  • Cage: 600 or 900mm (Sold Separately)

  • Suspension: 7 Leaf (8mm) Rocker Roller Springs– NOT Slipper; Fully Welded Spring Hangers

    – Improved Stability,

    – Increased Load Capacity,

    – Longer Lifespan & Better Handling

  • Brakes: 10″ Electric Drum on Four Wheels

  • Warranty: 24 Months Structural
Hydraulic System
  • Toolbox: Trailer Drawbar Aluminium Toolbox

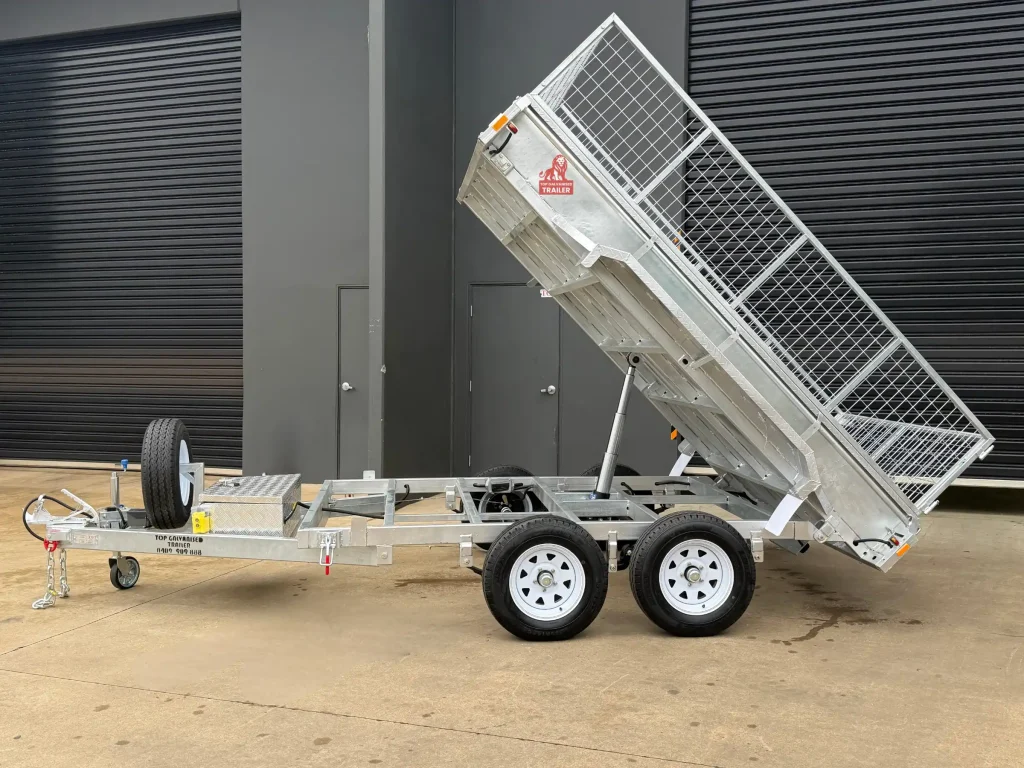

  • Hydraulic Pump: 4.5 Ton, 1.2 m Hydraulic Cylinder (4 Stages) with Hydraulic Power Pack

  • Battery: 120 AMP Deep Cycle Battery

Optional Extras
  • Spare Wheel: $120
  • Spare Wheel Holder: $60
  • 12 Months VIC Registration: $150
  • Galvanised Cage 600/900mm: $400/$500
  • Canvas Cover 600/900 mm High: $690/$790
  • Ladder Racks (Pair) for 600/900 mm (H): $270/$300
  • Aluminium Loading Ramps (2.0T, 2000 x 350 x 82mm): $680
  • Aluminium Loading Ramps (3.0T, 2000 x 350 x 92mm): $750

Are tipper trailers any good?

Tipper trailers, also referred to as dump trailers, can be a useful tool for companies that frequently transport and dump heavy materials like soil, gravel, and construction waste.

Its solid structure and hydraulic tilt feature make it simple to quickly and efficiently transport and dump heavy loads, saving you time and labour.

Moreover, its hot-dipped galvanised design can be used in tough outdoor environments without fear of rust or corrosion.



If you have any questions or need assistance, please don’t hesitate to Contact Us.
