Description

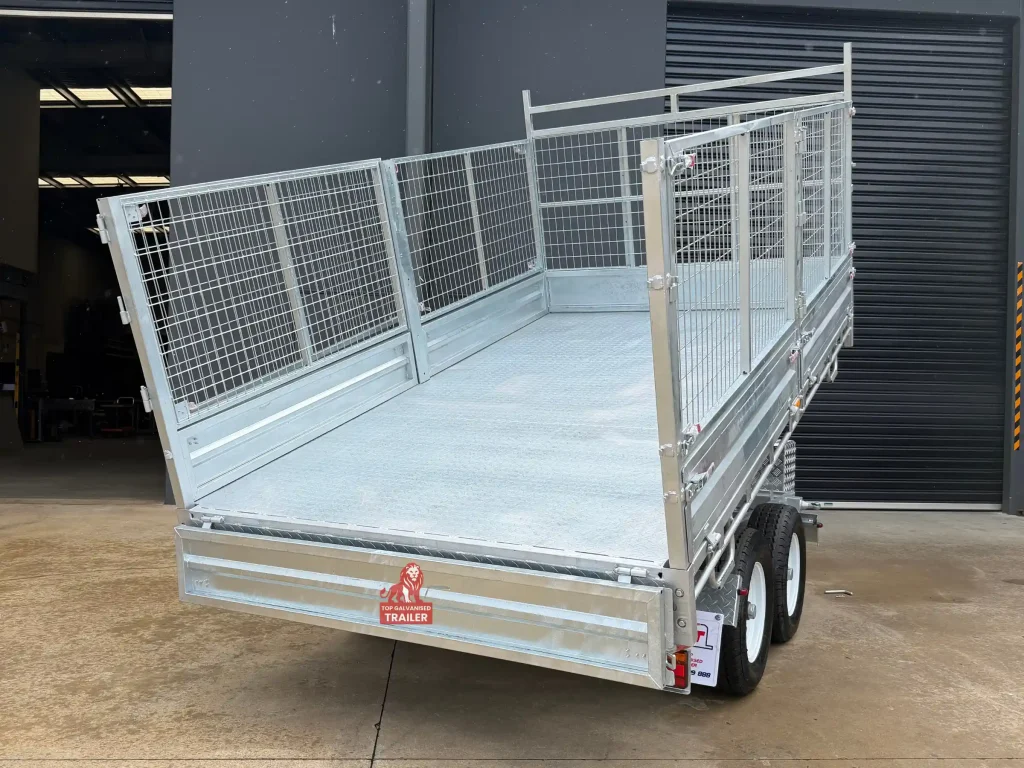

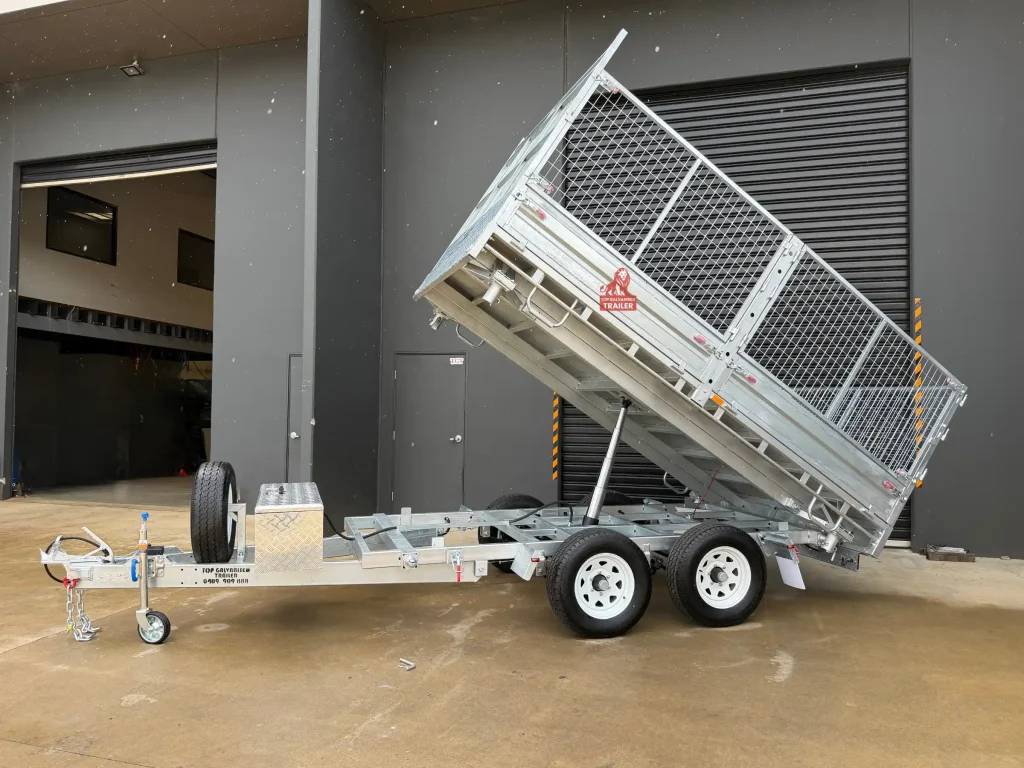

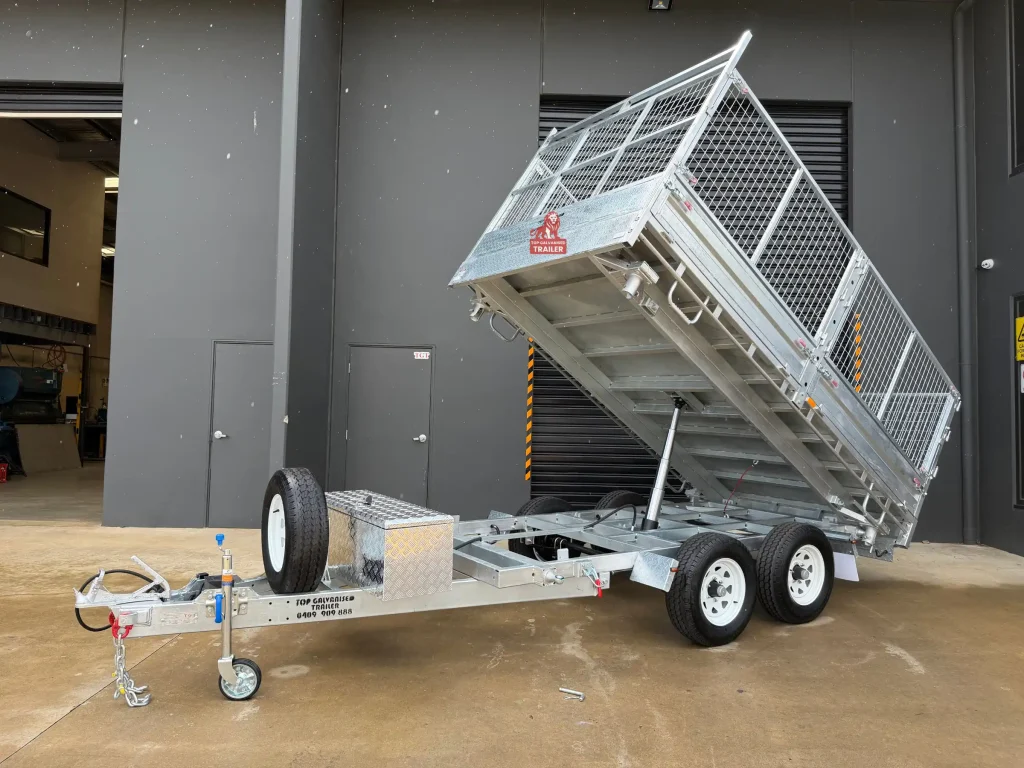

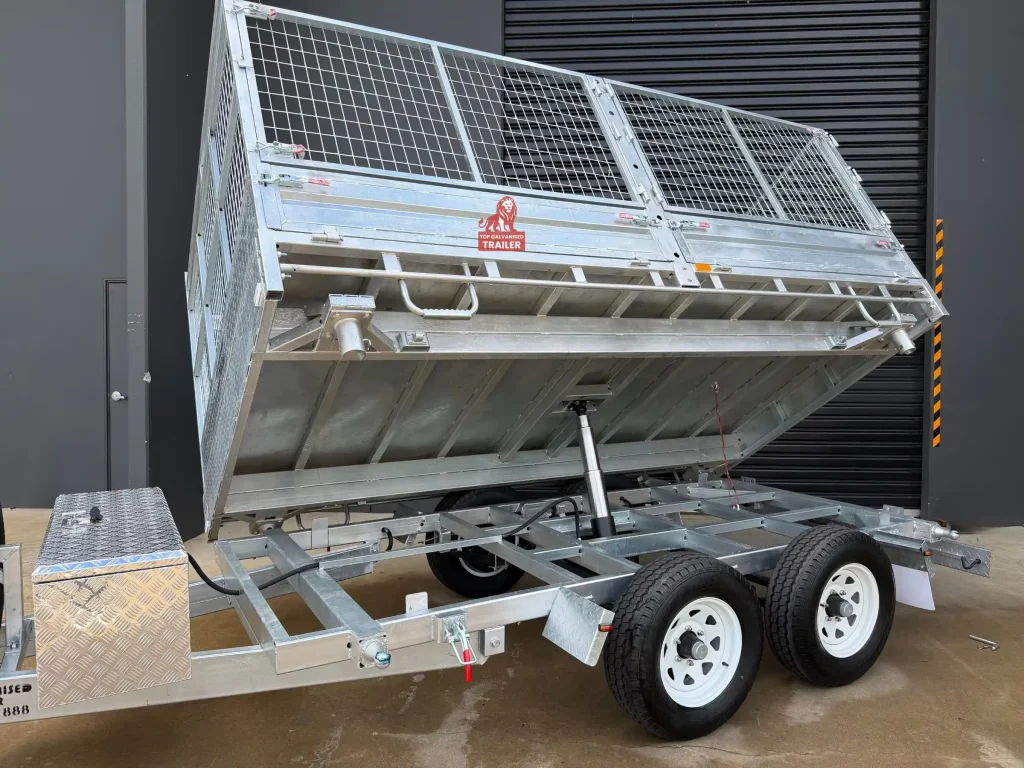

A tipper trailer that can be tilted in THREE different directions! Choose left or right-hand tip or tip to the rear.
Are tipper trailers any good?

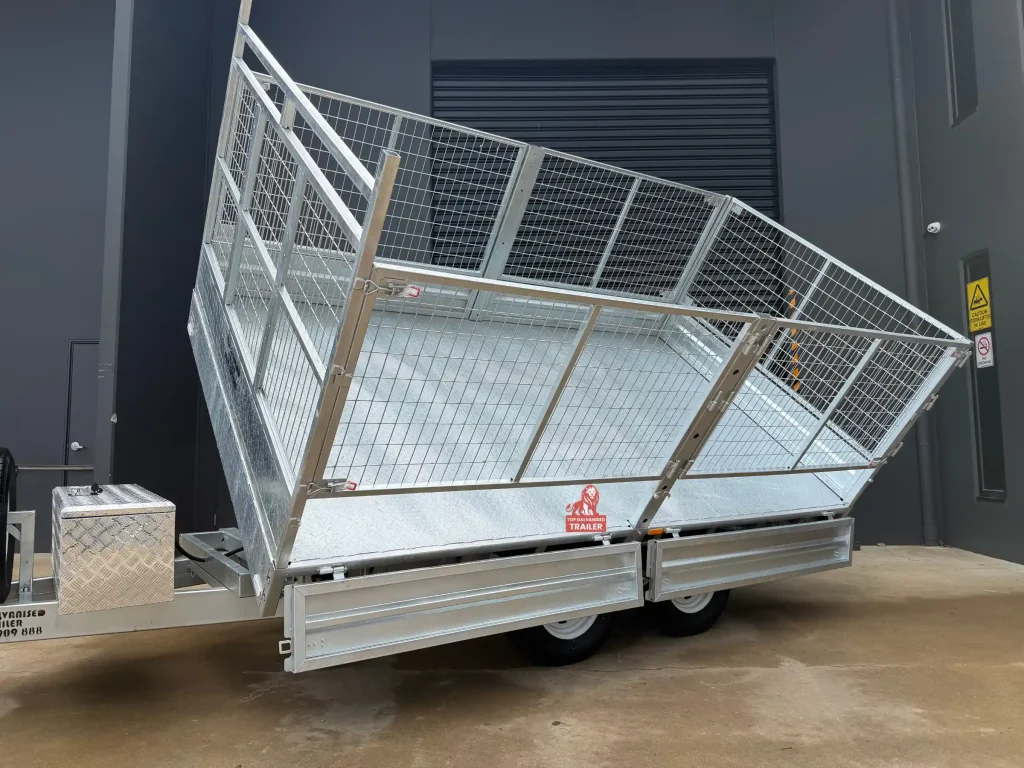

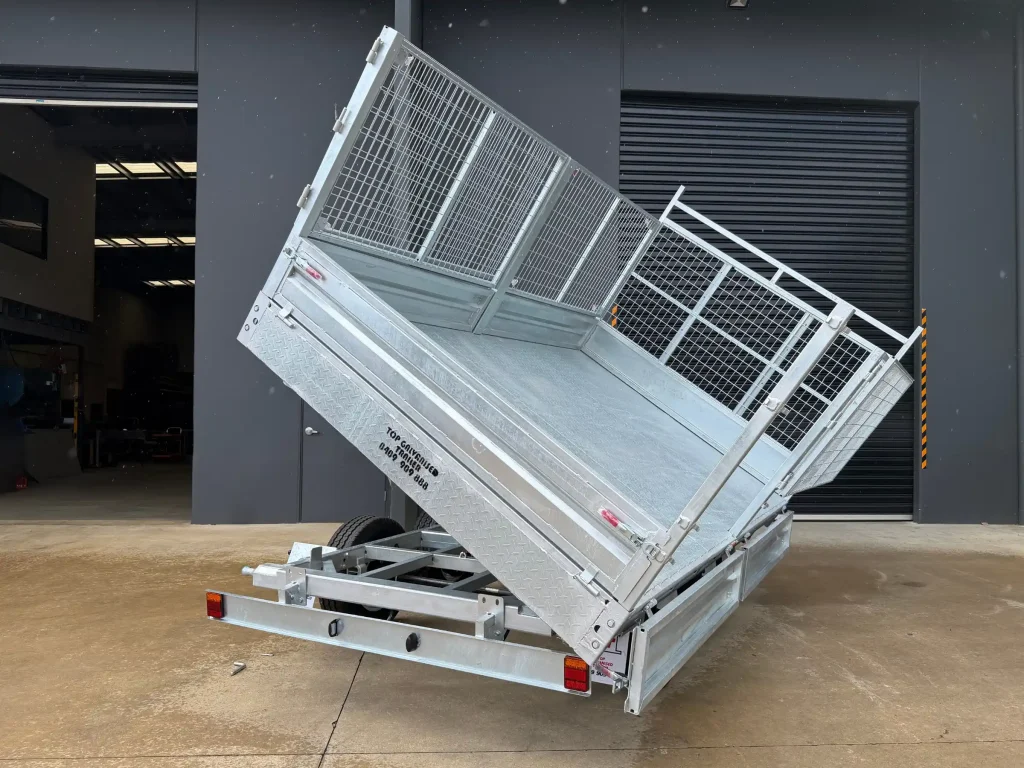

Tipper trailers, also referred to as dump trailers, can be a useful tool for companies that frequently transport and dump heavy materials like soil, gravel, and construction waste. Its solid structure and hydraulic tilt feature make it simple to quickly and efficiently transport and dump heavy loads, saving you time and labour. Moreover, its hot-dipped galvanised design can be utilised in tough outdoor environments without fear of rust or corrosion. This specific side tipper trailer (3-Way) is equipped with a tilting mechanism on the side of the trailer that allows the contents of the trailer to be dumped to one side. Choose left or right hand tip or tip to the rear! The 3-way tipper is perfect for offloading gravel, sand, rubble, and other heavy loads. If you have any questions or need assistance, please don’t hesitate to Contact Us.
Specifications
- ATM: 3500kg (upgradable to 4500kg)
- Tare: 1500kg
- Loading Capacity: 2000kg (upgradable to 2950kg)
- Exterior Length: 5.50m
- Exterior Width: 2.10m
- Internal Size: 3520 x 2020 x 300mm

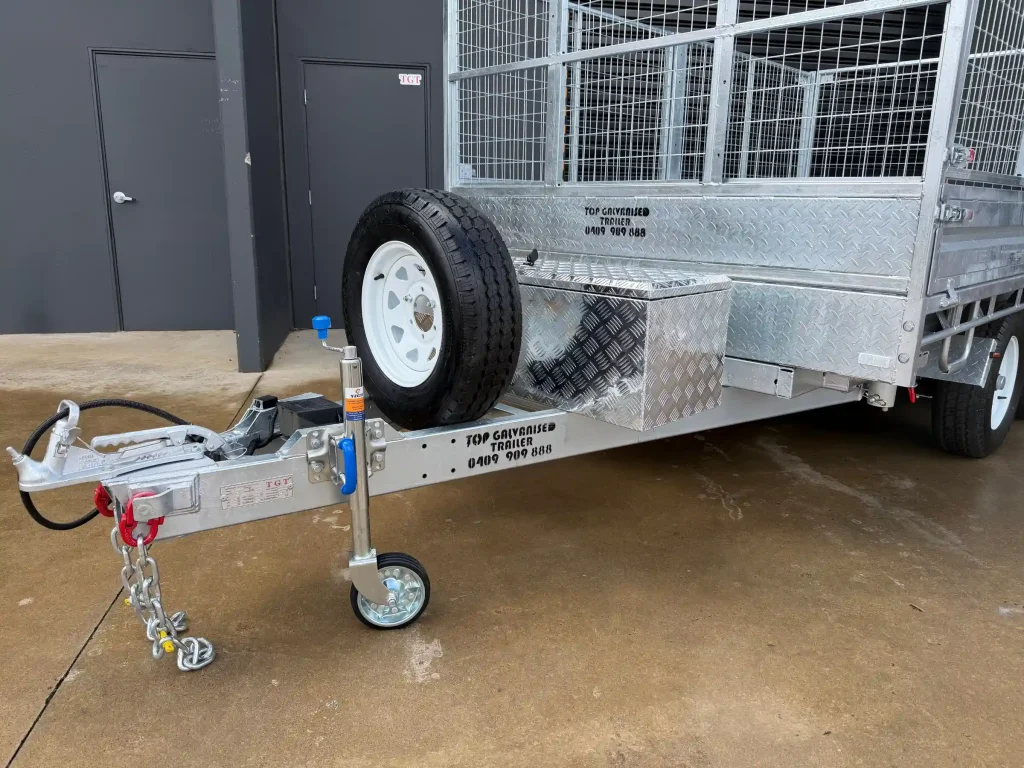

- Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
- Chassis: Heavy Duty 100x50x5mm RHS
- Coupling: 50mm Quick Release Coupling 3500kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle 2700kg Rated Each
- Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
- Suspension: 9 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swing Up Heavy Duty
- Sides: 300mm; Removable Side & Rear Drop Down Gates
- Tie Down Rails All Around
- Cage: 900mm High, Removable
- Toolbox: Fitted Drawbar Aluminium Toolbox

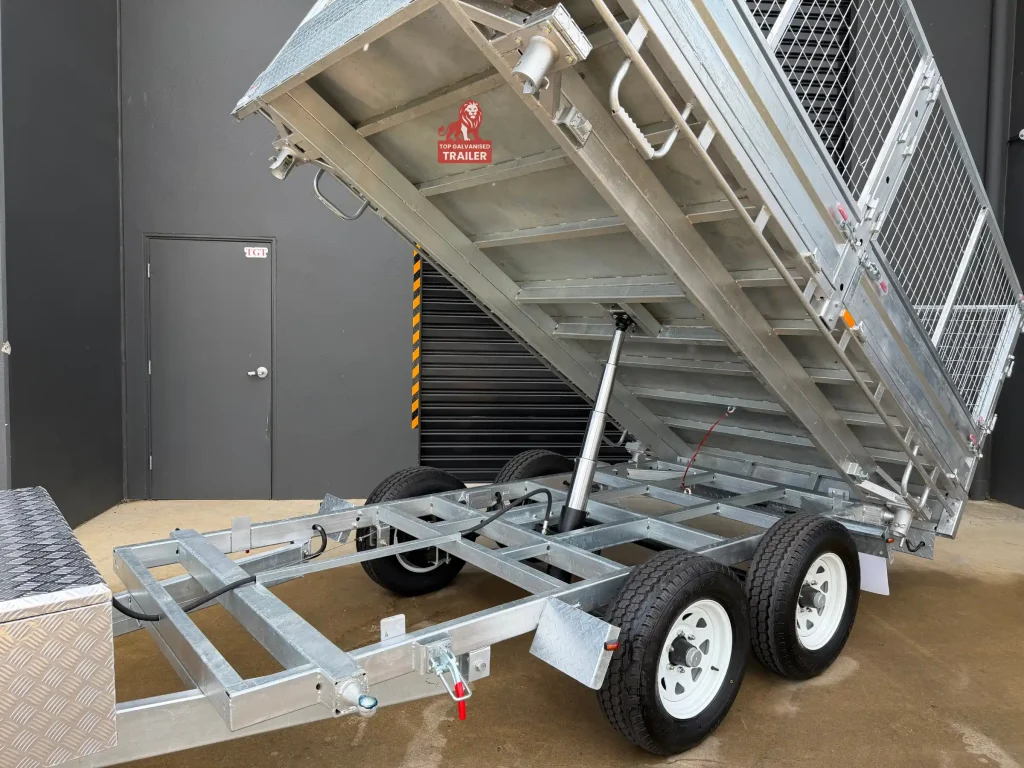

- Hydraulic Pump: 8000kg Rated, 1.2m Hydraulic Cylinder (5 Stages) with Hydraulic Power Pack
- Battery: 120 AMP Deep Cycle Battery
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Aluminium Ramps (2m, 2 or 3 tonne rated)
- Aluminium Ramp Holders
- Aluminium Toolbox
- Upgrade to ATM-4500kg
- Elecbrakes Brake Controller
- Other Customisations
Videos
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.

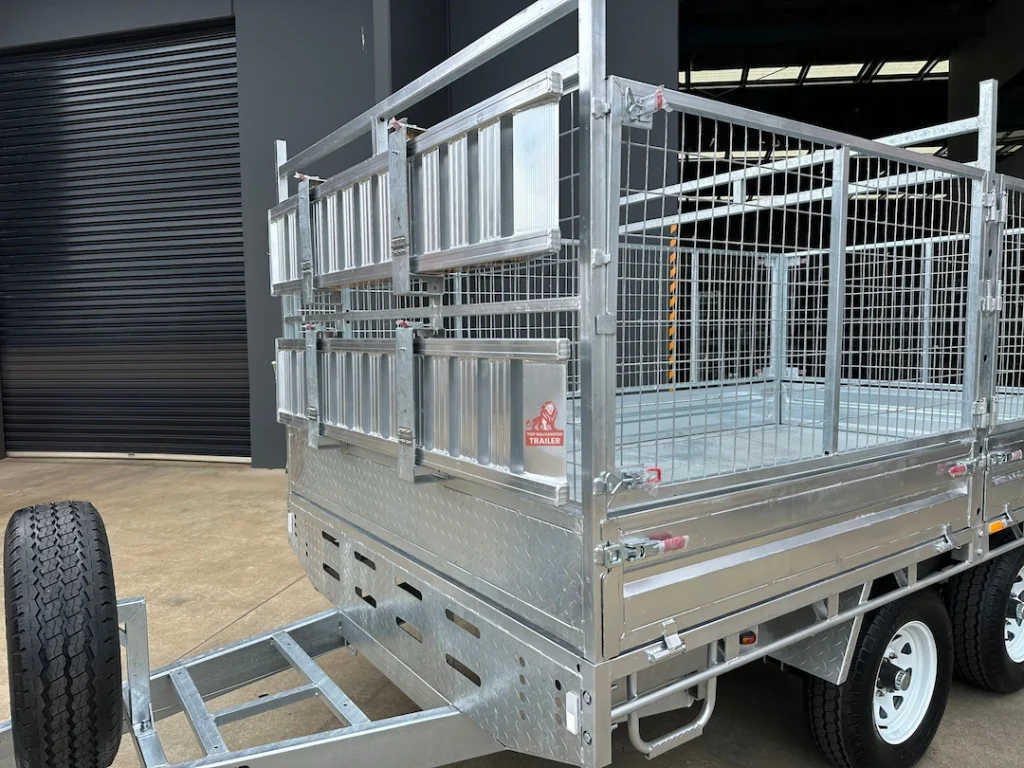

12×7 Flat Top Hydraulic 3 Way Tipper Trailer Galvanised 3.5T/4.5T ATM (With 900mm Cage)
From
*Unless otherwise specified, cage and other accessories are sold separately. See pricing details below.
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later
Additional Options – Priced Separately:
Get a Quote
Categories: Flat Top Trailers, Hydraulic Tipper Trailers
SKU: HYDFTT3W35127-900
Description
A tipper trailer that can be tilted in THREE different directions! Choose left or right-hand tip or tip to the rear.
Are tipper trailers any good?
Tipper trailers, also referred to as dump trailers, can be a useful tool for companies that frequently transport and dump heavy materials like soil, gravel, and construction waste. Its solid structure and hydraulic tilt feature make it simple to quickly and efficiently transport and dump heavy loads, saving you time and labour. Moreover, its hot-dipped galvanised design can be utilised in tough outdoor environments without fear of rust or corrosion. This specific side tipper trailer (3-Way) is equipped with a tilting mechanism on the side of the trailer that allows the contents of the trailer to be dumped to one side. Choose left or right hand tip or tip to the rear! The 3-way tipper is perfect for offloading gravel, sand, rubble, and other heavy loads. If you have any questions or need assistance, please don’t hesitate to Contact Us.
Specifications
- ATM: 3500kg (upgradable to 4500kg)
- Tare: 1500kg
- Loading Capacity: 2000kg (upgradable to 2950kg)
- Exterior Length: 5.50m
- Exterior Width: 2.10m
- Internal Size: 3520 x 2020 x 300mm
- Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
- Chassis: Heavy Duty 100x50x5mm RHS
- Coupling: 50mm Quick Release Coupling 3500kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle 2700kg Rated Each
- Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
- Suspension: 9 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swing Up Heavy Duty
- Sides: 300mm; Removable Side & Rear Drop Down Gates
- Tie Down Rails All Around
- Cage: 900mm High, Removable
- Toolbox: Fitted Drawbar Aluminium Toolbox
- Hydraulic Pump: 8000kg Rated, 1.2m Hydraulic Cylinder (5 Stages) with Hydraulic Power Pack
- Battery: 120 AMP Deep Cycle Battery
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Aluminium Ramps (2m, 2 or 3 tonne rated)
- Aluminium Ramp Holders
- Aluminium Toolbox
- Upgrade to ATM-4500kg
- Elecbrakes Brake Controller
- Other Customisations
Videos
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.
