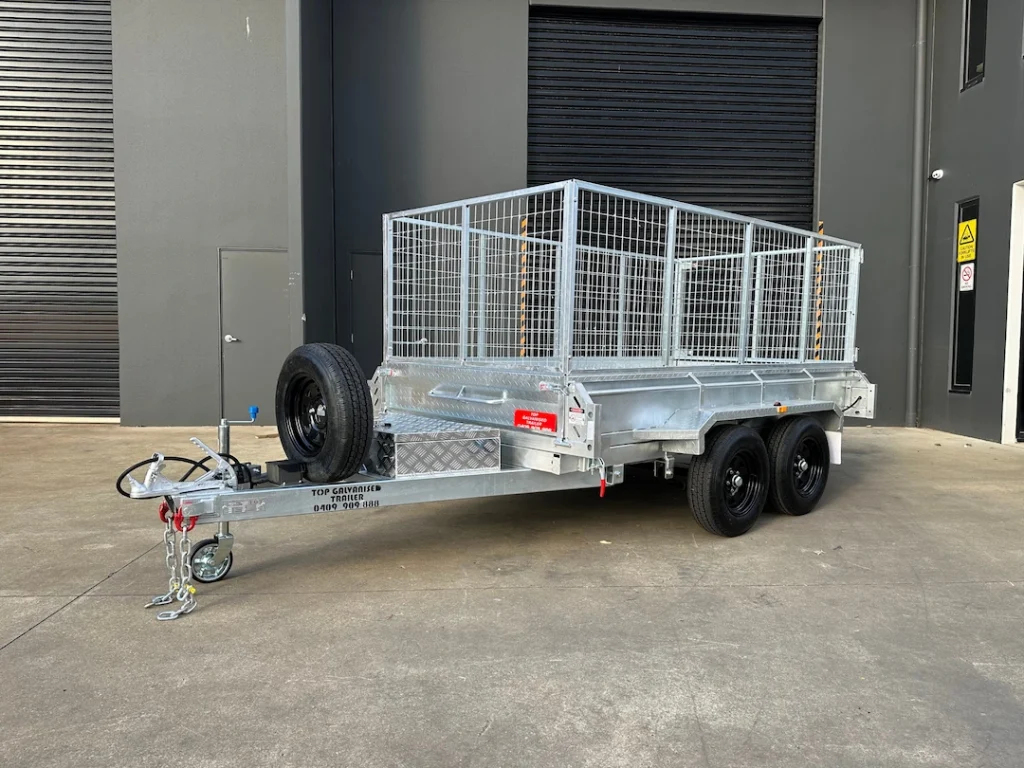

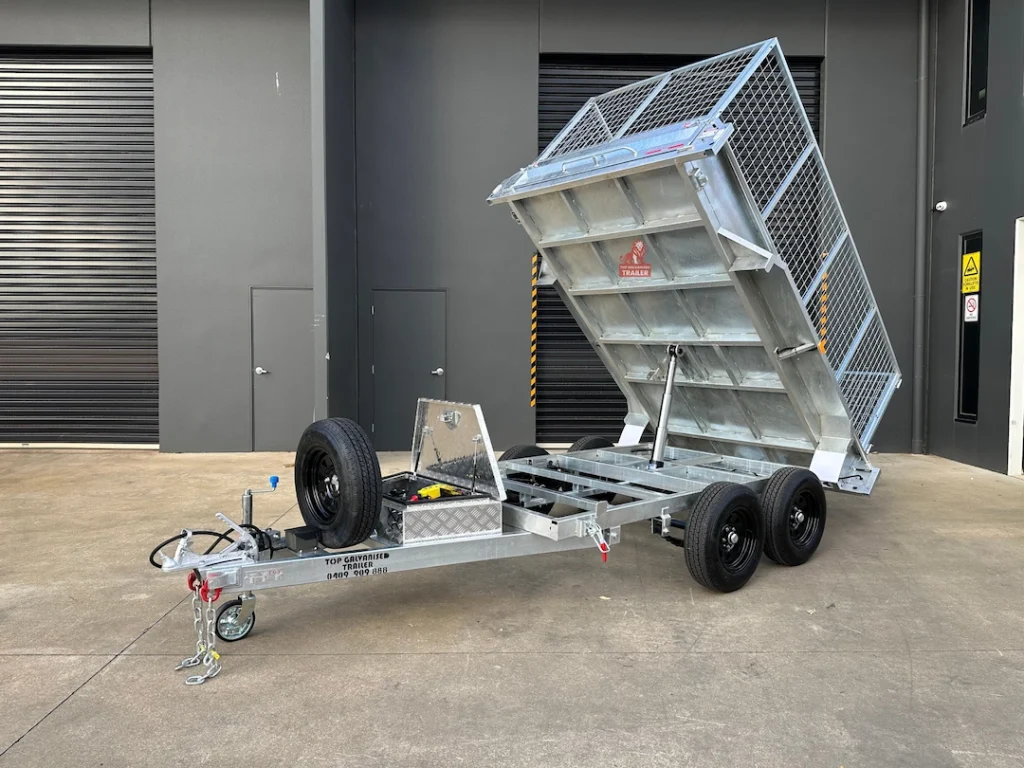

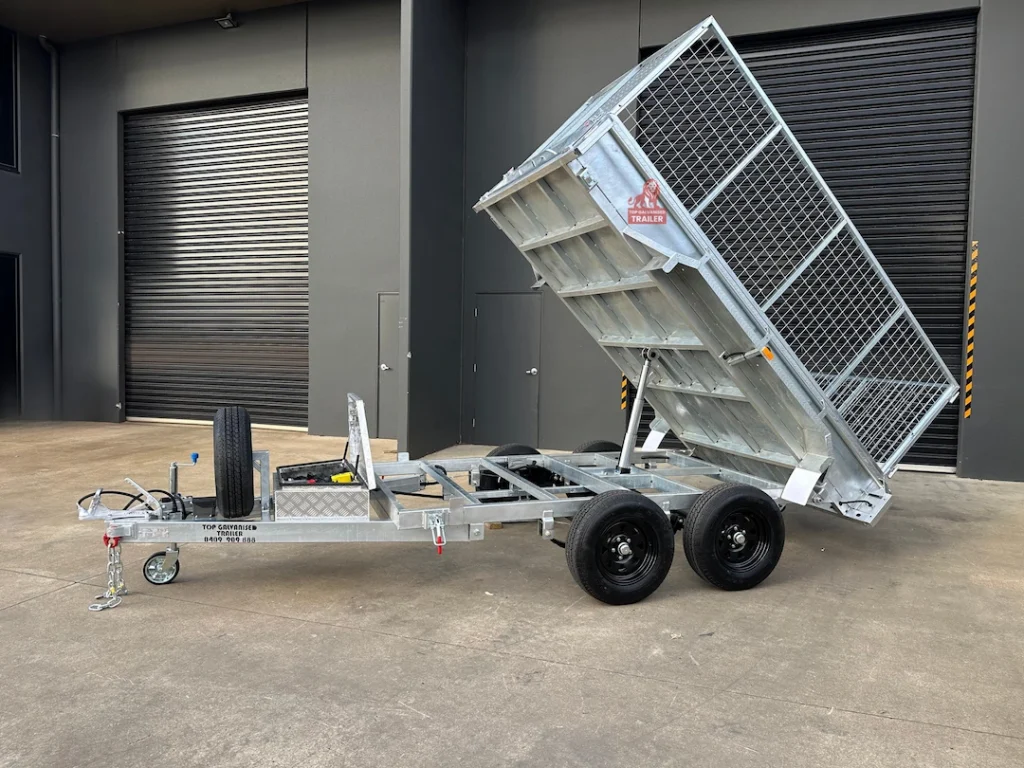

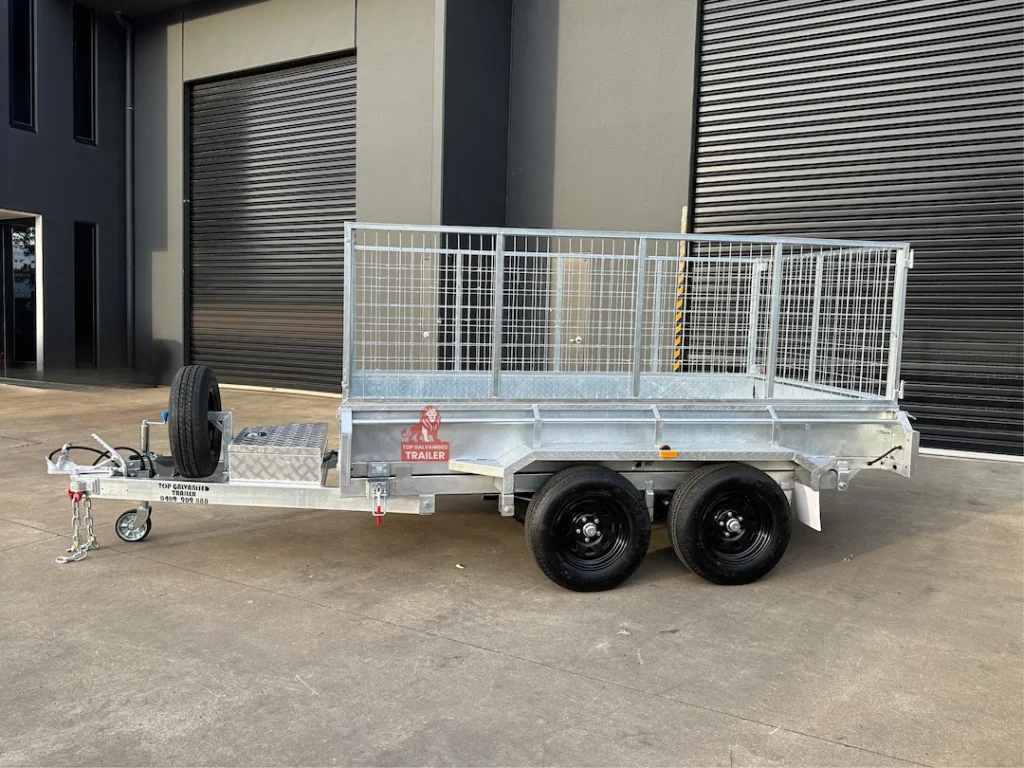

Hydraulic tipper trailer with a 3200kg ATM: a cost-effective and lighter alternative to the standard 3.5-ton tipper trailer. Designed for those who need reliable tipping functionality without the added weight and expense.

  • ATM: 3200kg
  • Tare: 870kg (Exclude cage)
  • Loading Capacity: 2330kg
  • Exterior Length: 5.05m
  • Exterior Width: 2.02m
  • Internal Size: 3000 x 1530 x 300mm

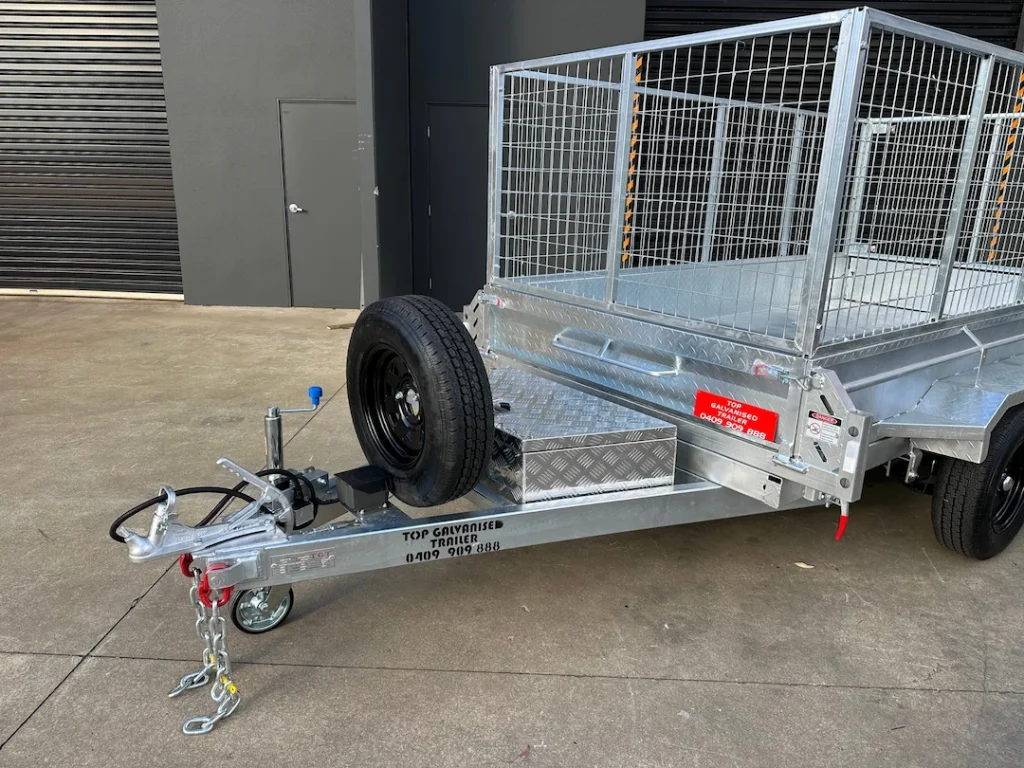

  • Drawbar: 1600mm; 150 x 50 x 5mm RHS
  • Coupling: 50mm Quick Release Coupling 3500kg
  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Checker Plate: 2.5mm, Fully Welded Body & Chassis
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: 50mm Dual Solid Axles
  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
  • Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres

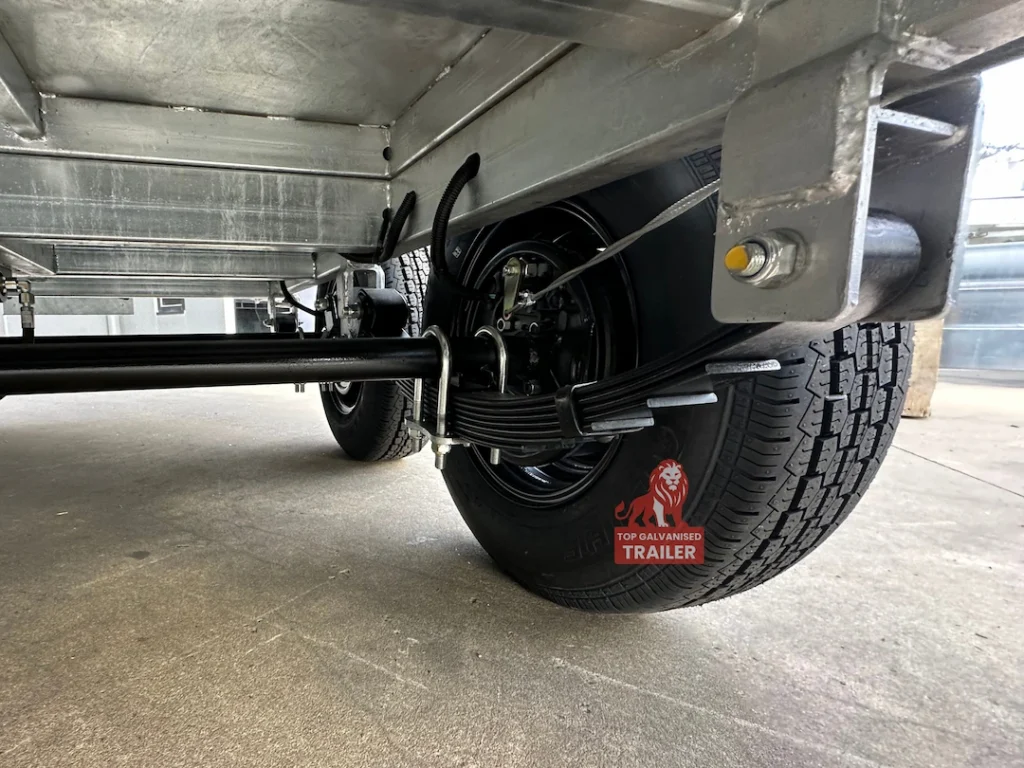

  • Suspension: 7 Leaf (8mm) Rocker Roller Springs– NOT Slipper; Fully Welded Spring Hangers
  • Brakes: 10″ Electric Drum Brakes On Four Wheels with Parallel Bearings
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
  • Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
  • Step-up Platforms On Both Sides
  • Tie Down Rails All Around
  • Ladder Racks Holders

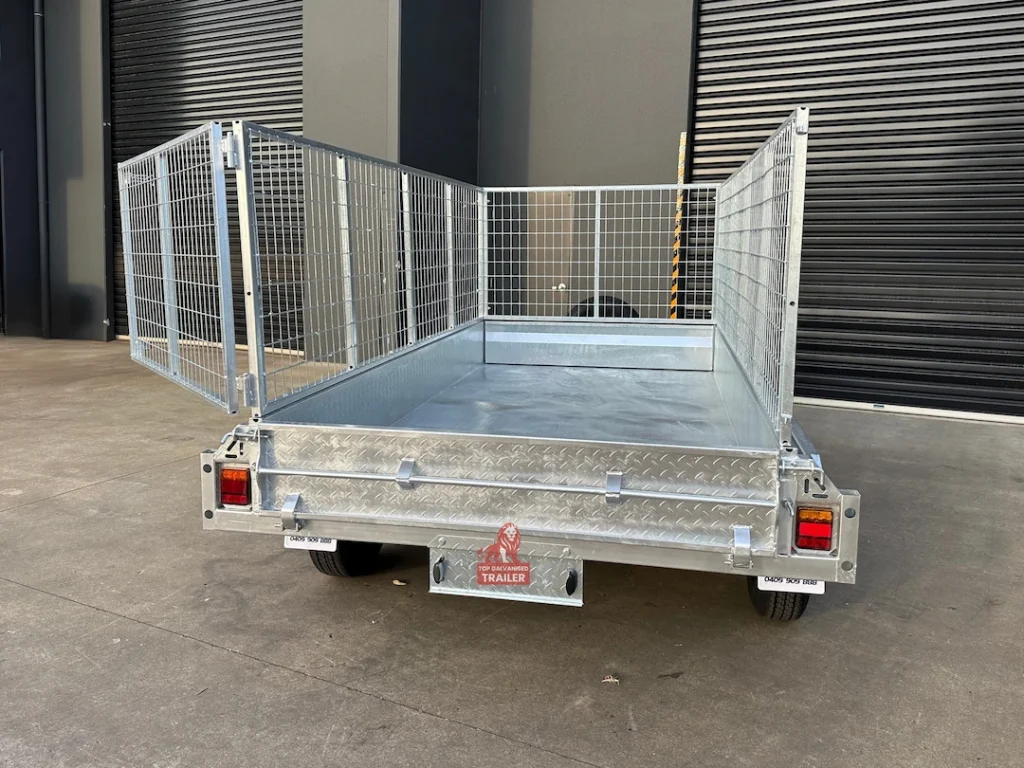

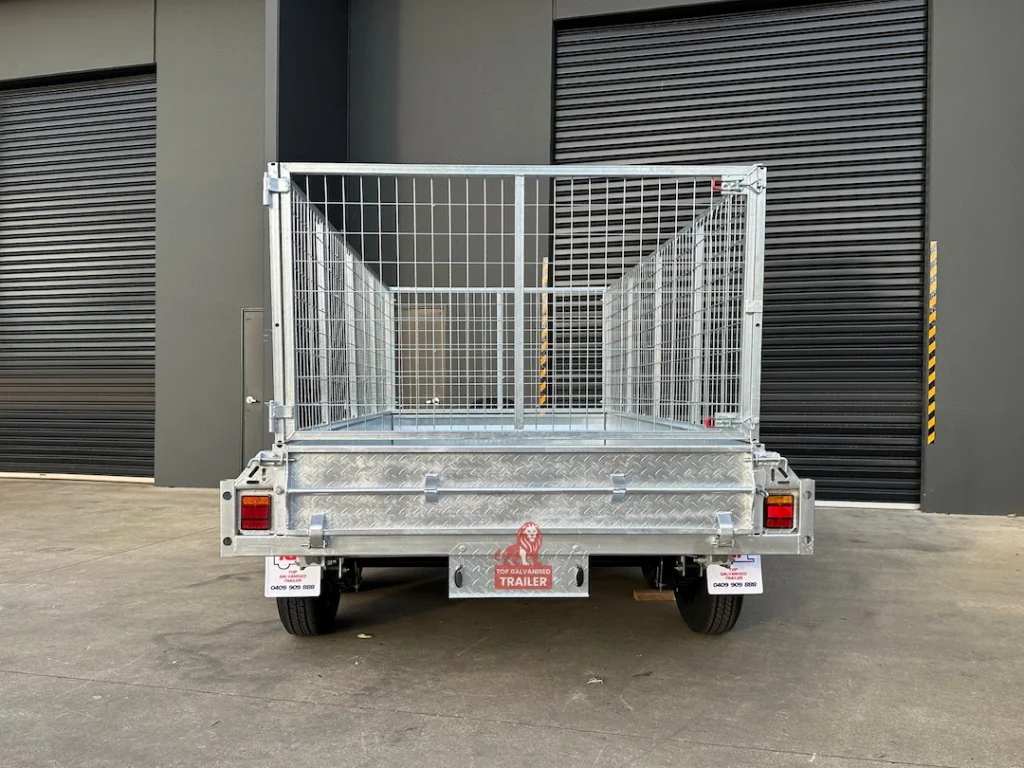

  • Cage: 600 or 900mm (Sold Separately)

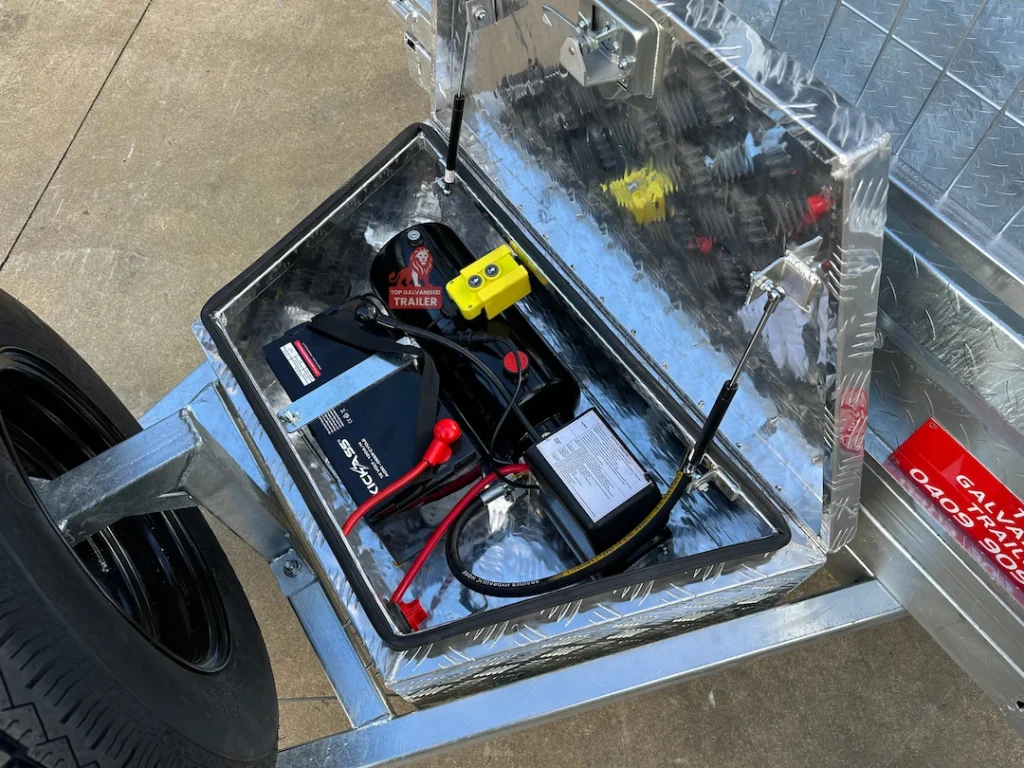

  • Toolbox: Trailer Drawbar Aluminium Toolbox

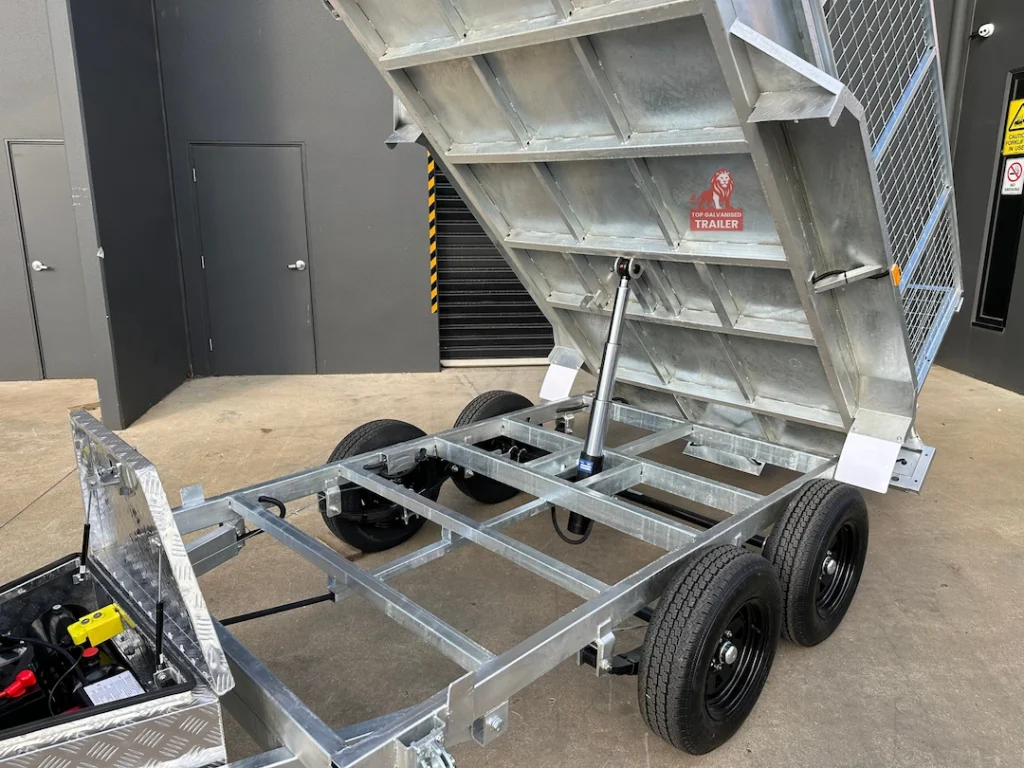

  • Hydraulic Pump: 4.5 Ton, 1.2 m Hydraulic Cylinder (4 Stages) with Hydraulic Power Pack
  • Battery: 120 AMP Deep Cycle Battery

  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Galvanised Cage 600/900mm
  • Canvas Cover
  • Ladder Racks (Pair)

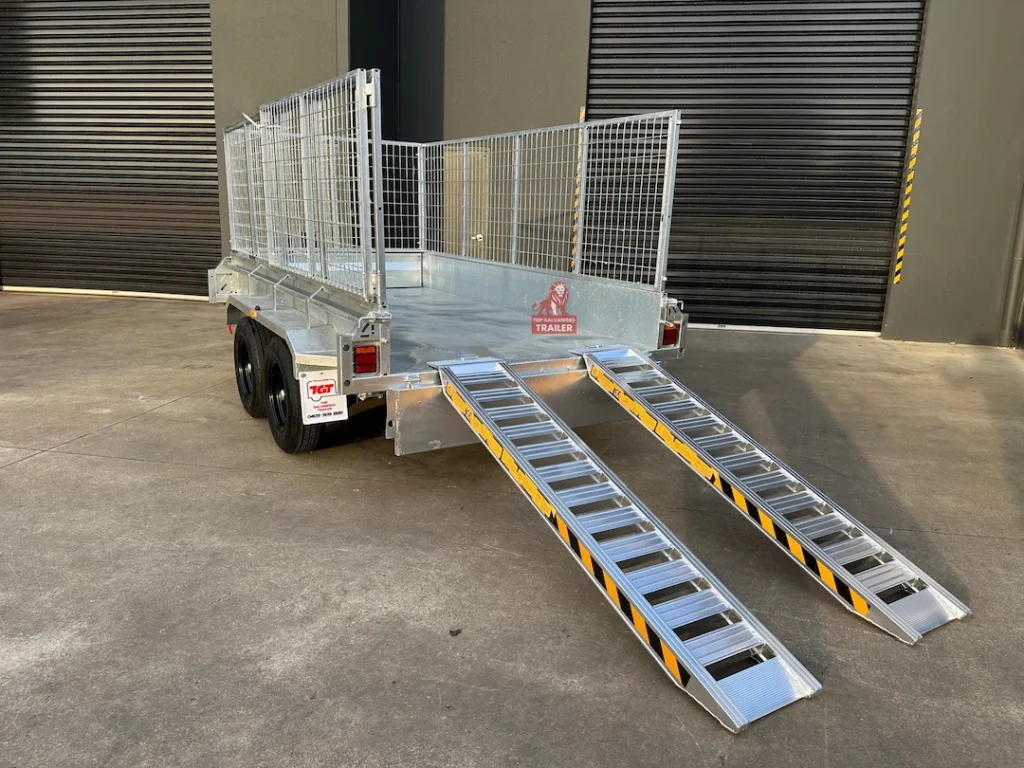

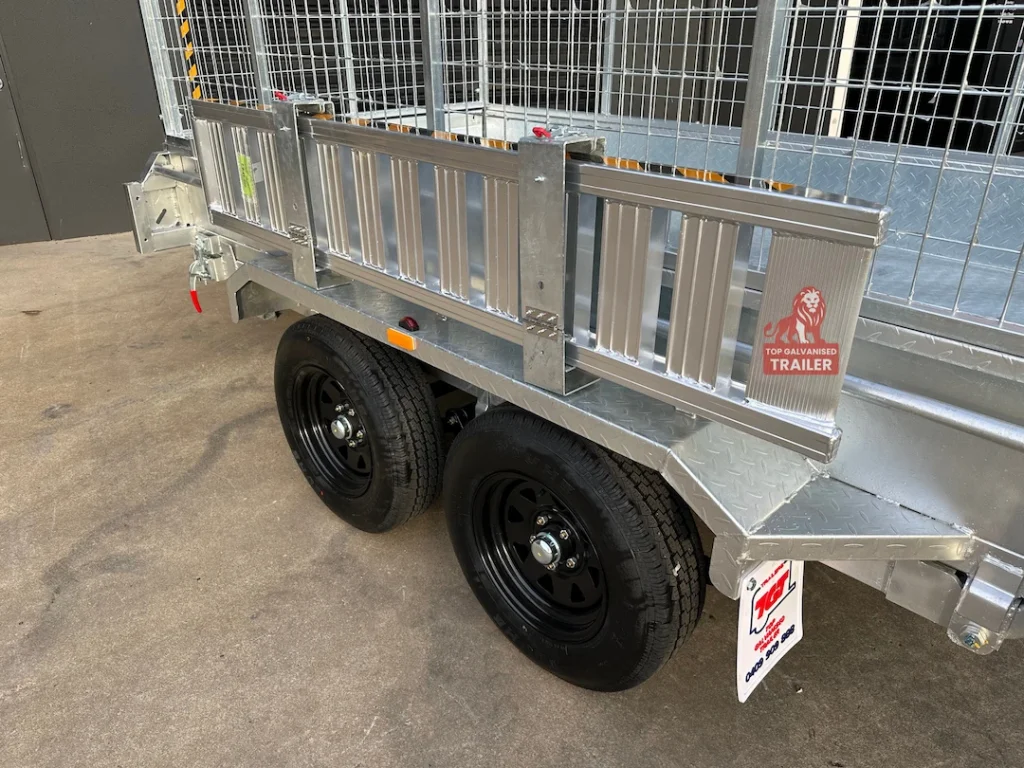

  • Aluminium Loading Ramps (2.0T, 2000 x 350 x 82mm)
  • Aluminium Loading Ramps (3.0T, 2000 x 350 x 92mm)

  • 5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.

  • 1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.

  • Used or Second-hand trailers and parts are not covered under this warranty.

10×5 Hydraulic Tipper Trailer Galvanised 3200kg ATM

From

Original price was: $8,699.00.Current price is: $8,399.00.

$300 Off

5-Year Structural Warranty

Register & Go in 30 Minutes

Buy Now, Pay Later

CreditOne

Note: Images are for illustrative purposes only. Optional accessories such as cage and spare wheel are sold separately. Please refer to the form below for pricing details.

Product total
Options total
Grand total

Click the “Add to Cart” icon to request a formal quote or place an order with your selected optional items (subject to availability).
