Description

Are tipper trailers any good?

These 10×5 tipper trailers for sale can be useful tools for companies that frequently transport and dump heavy materials like soil, gravel, and construction waste. Its solid structure and hydraulic tilt feature make it simple to transport and dump heavy loads quickly and efficiently, saving time and labour. Moreover, its hot-dipped galvanised coating can be utilised in tough outdoor environments without fear of rust or corrosion. One of the best trailer manufacturers and suppliers in Melbourne Victoria with 10 years of experience.

Specifications

ATM: 3500kg (upgradable to 4200kg)
Tare: 1100kg (Inc. cage)
Loading Capacity: 2400kg
Exterior Length: 5.11m
Exterior Width: 2.02m
Internal Size: 3010 x 1530 x 425mm
Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
Chassis: Lower Chassis 70×50x3mm RHS, Upper Chassis 100x50x5mm RHS
Coupling: 50mm Quick Release Coupling 3500kg
Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Checker Plate: 2.5mm, Fully Welded Body & Chassis
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: Dual Axle, 50mm Solid Axle
Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres

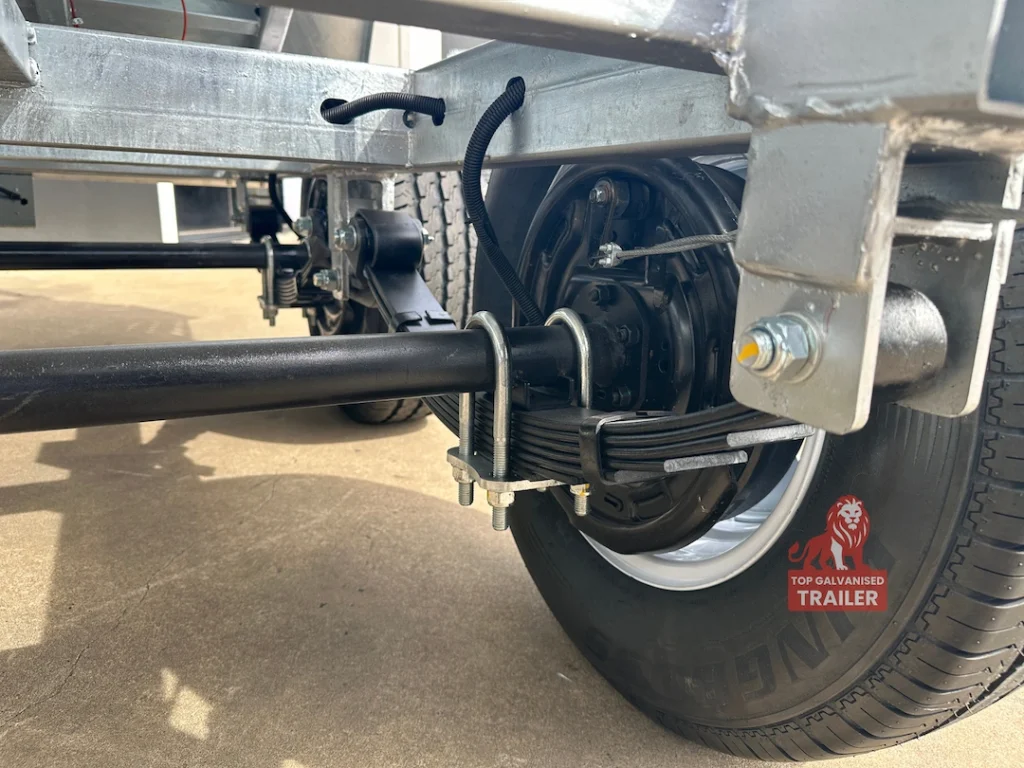

Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
Jockey Wheel: 8” Swing Up Heavy Duty
Side Walls: 425mm High Sides, One Piece Folded Up (Not Bolted)
Step-up Platforms On Both Sides
Tie Down Rails All Around
Ladder Racks Holders
Cage: 600 or 900mm (Sold Separately)
Ramps: Aluminium Ramps 2m, 2 or 3T Rated (Sold Separately)
Ramp Holders: Holders to Store Ramps; Mounted on Mudguards (Sold Separately)
Toolbox: Fitted Drawbar Aluminium Toolbox

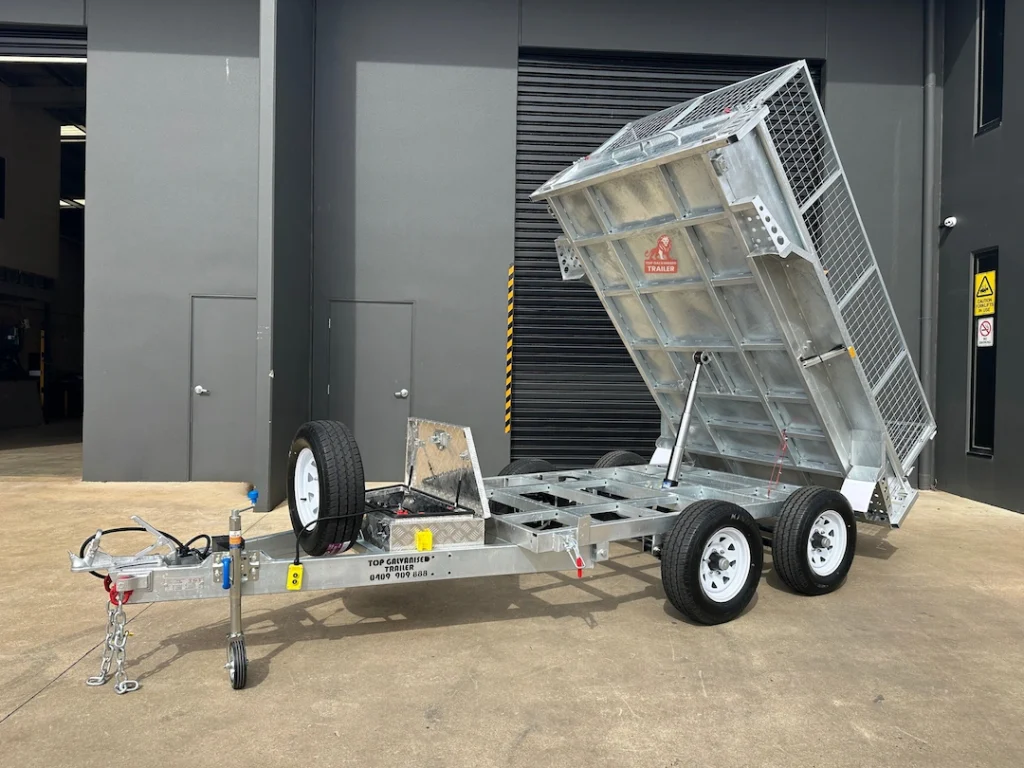

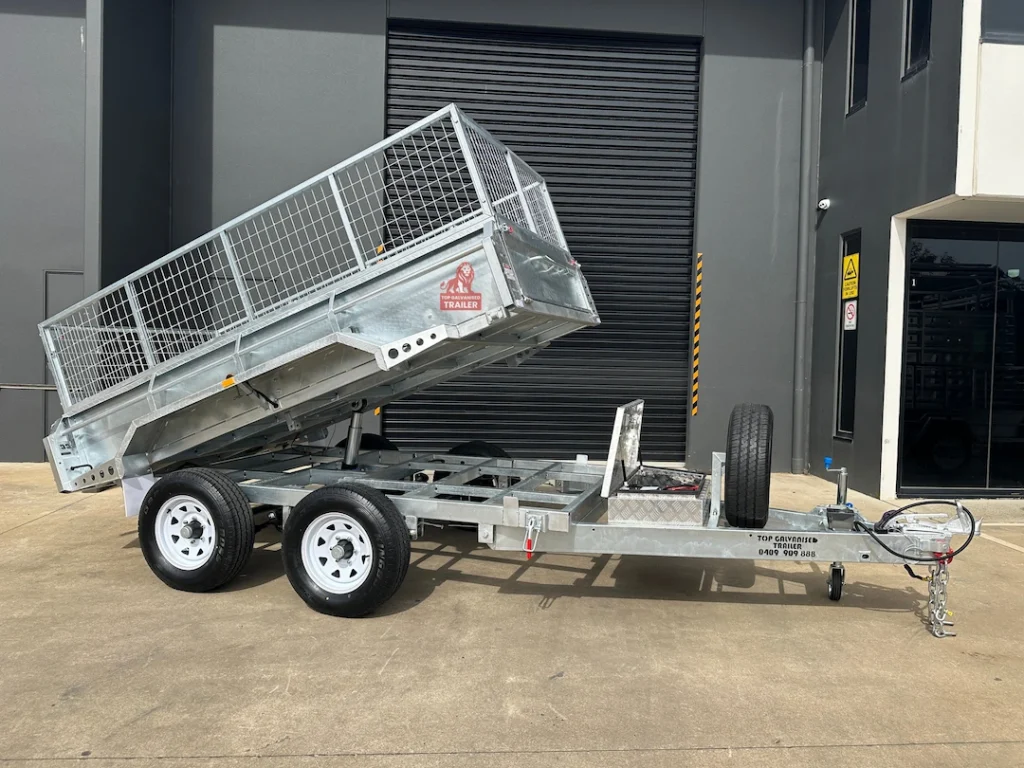

Hydraulic Pump: 4.5T, 1.2m Hydraulic Cylinder (4 Stages) with Hydraulic Power Pack
Battery: 120 AMP Deep Cycle Battery

Optional Extras

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Galvanised Cage 600/900mm
Canvas Cover
Ladder Racks (Pair)
Aluminium Loading Ramps (2.0T, 2000 x 350 x 82mm)
Aluminium Loading Ramps (3.0T, 2000 x 350 x 92mm)
Aluminium Ramp Holders (attached to mudguards)
Upgrade to ATM-4200kg
Elecbrakes Brake Controller
Other Customisations

Videos

Warranty

5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
Used or Second-hand trailers and parts are not covered under this warranty.

10×5 Hydraulic Tipper Trailer Hot Dip Galvanised 3500kg ATM

$9,800.00 ~~$10,170.00~~ $370.00 off

In Stock

Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.

5-Year Structural Warranty

Register & Go in 30 Minutes

Buy Now, Pay Later

Additional Options – Priced Separately:

Cage

Spare Wheel (225/70R15C)

Aluminium Ramps

Ramp Holders - mounted on mudguards

Canvas Cover

Ladder Racks

Registration

Product price:	$9,800.00
Total options:
Order total:

Request a Quote

Choose your payment option

Pay Deposit (30%)
Pay in Full

Pay a 30% deposit

Please note: For lead times or order questions, request a quote or call. Online orders may take up to 5 days to process.

Get a Quote

Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.
