Description

8×5 Single Axle Hydraulic Tipper Trailer with Electric Brakes 1.8T ATM

If you’re after a single axle tipper trailer that saves time, and effort, this 8×5 trailer is built to make your day easier. Compact, tough, and practical—it’s ideal for tradies who need efficiency without the bulk of a larger trailer.

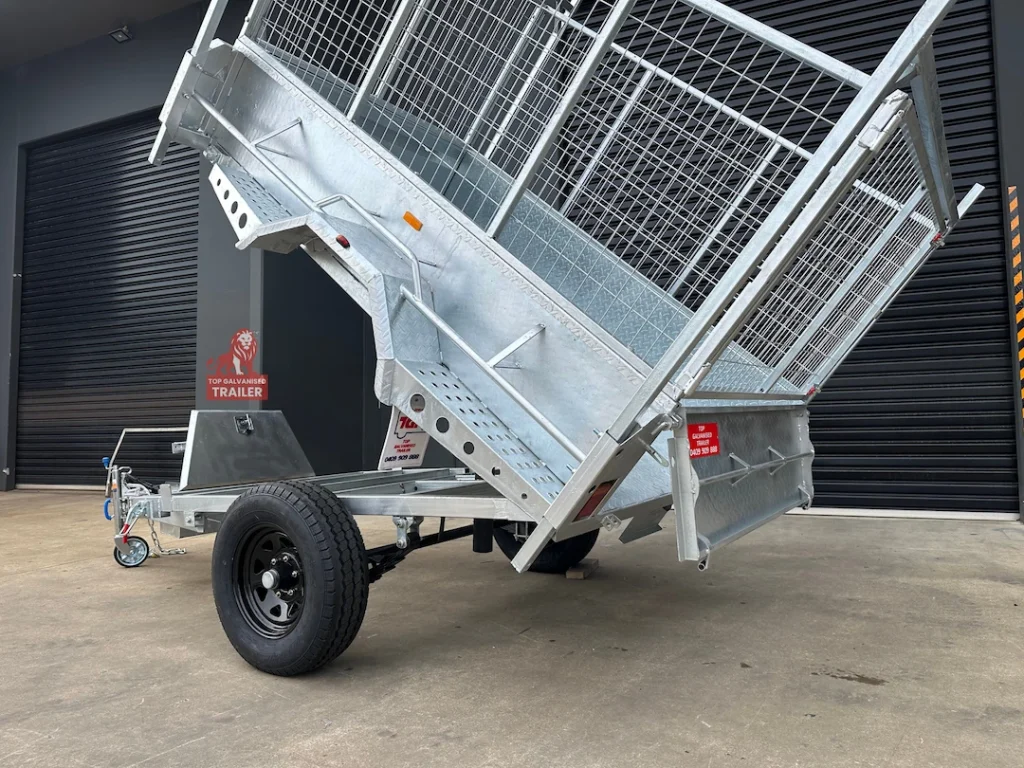

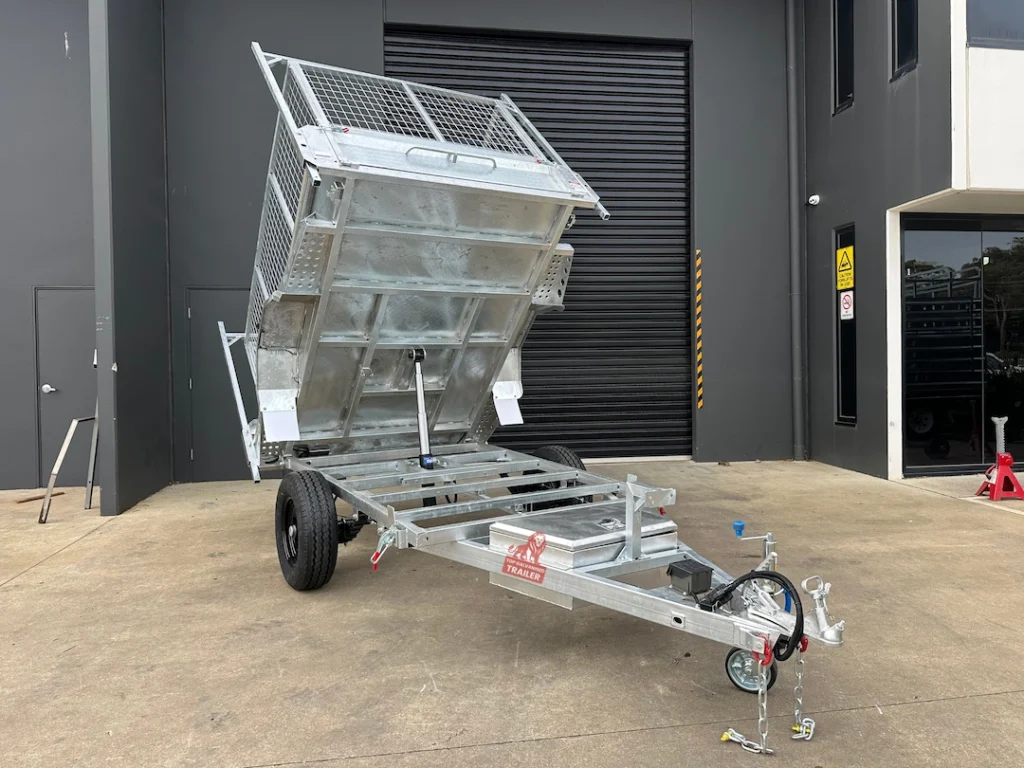

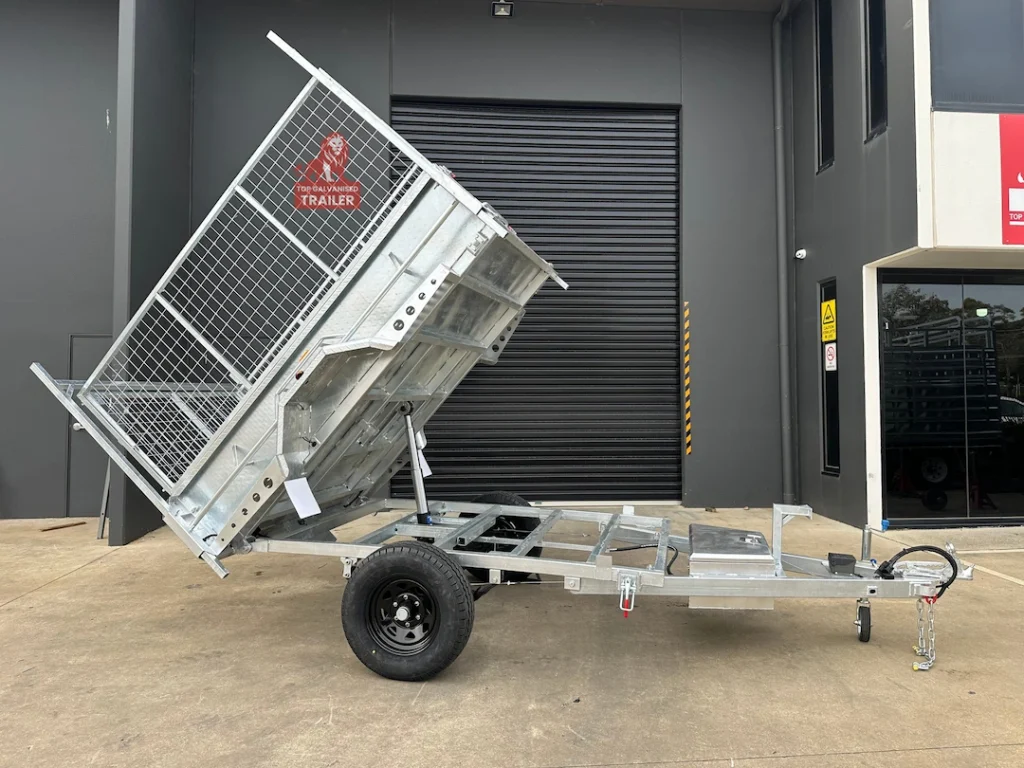

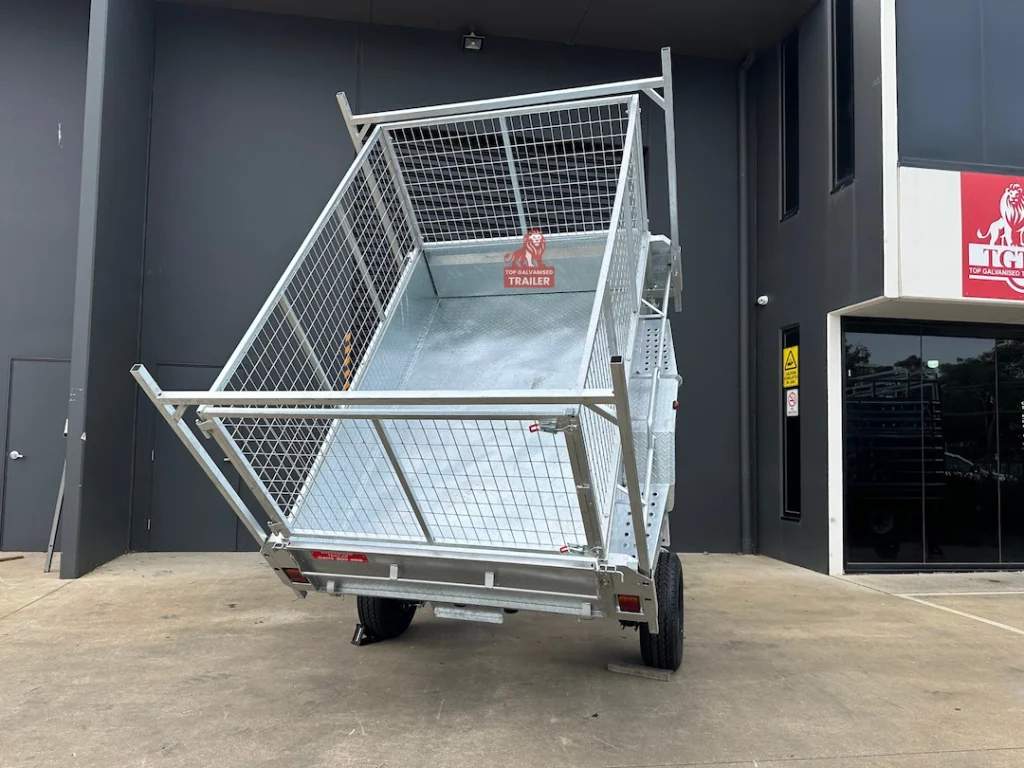

The biggest advantage? No more shovelling. This single axle hydraulic tipper trailer lets you unload in seconds. Whether it’s soil, green waste, or building debris, just tip and go. It’s faster, cleaner, and saves your back at the end of a long job.

Additionally, the hot dip galvanised finish means the entire trailer is coated in zinc, protecting it from rust for years to come. No repainting, no ongoing maintenance—just a tipper trailer that keeps working in all conditions.

Being a lightweight tipper trailer, it’s much easier to manoeuvre compared to dual axle models. Tight driveways, narrow access points, or busy worksites—this trailer moves where bigger ones can’t. You’ll notice the difference every time you reverse or manually move it.

Under load, it stays stable thanks to eye-to-eye offroad springs. They provide better support and smoother towing than standard slipper springs. Plus the electric brakes provide safer stopping and better control when carrying heavier loads.

Why this 8×5 single axle tipper trailer stands out:

5 Year Structural Warranty for peace of mind
Hot dip galvanised – built to last 20+ years
Compact size & lightweight for easy manoeuvring
Electric brakes providing 1080kg of loading capacity
Australian assembled with premium components

We supply 8×5 single axle tipper trailers in Melbourne and deliver interstate to NSW, QLD, SA, TAS & ACT. Contact us for a delivery quote. If you are after a same size trailer but with higher loading capacity, check out our 3.2T and 3.5T Tippers. Finally, if you have any questions or need a detailed price, call/text us directly or ask for a FREE Quote!

Specifications

ATM: 1800kg
Tare: 720kg
Loading Capacity: 1080kg
Exterior Length: 4.19m
Exterior Width: 2.02m
Internal Size: 2400 x 1530 x 425mm
Drawbar: 1600mm; 100 x 50 x 4mm RHS
Coupling: 50mm Quick Release Coupling (3500kg rated)
Safety Chain: 10mm with Hammerlock Shackle (safe alternative to welding)

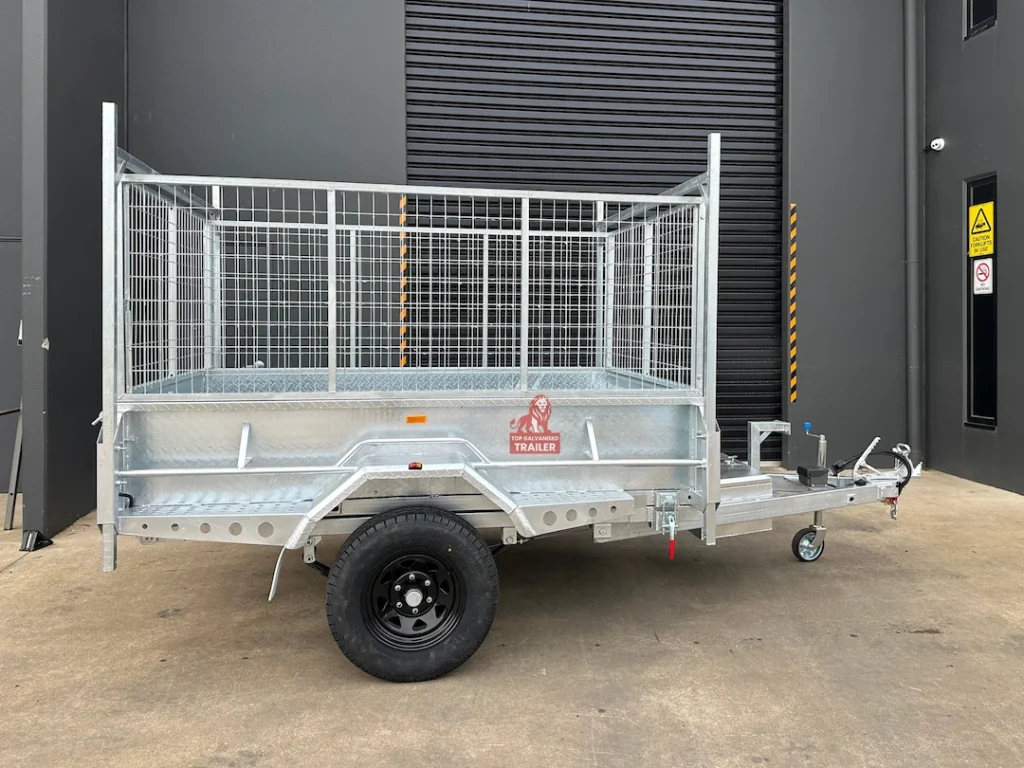

Surface Finish: Hot Dipped Galvanised (Rust Free)
Checker Plate: 2.5mm; Fully Welded Body & Chassis
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: 50mm Round Solid Single Axle
Wheels & Tyres: 15” Sunraysia Rims (Land Cruiser 6 Stud Pattern), 225/70R15C Tyres

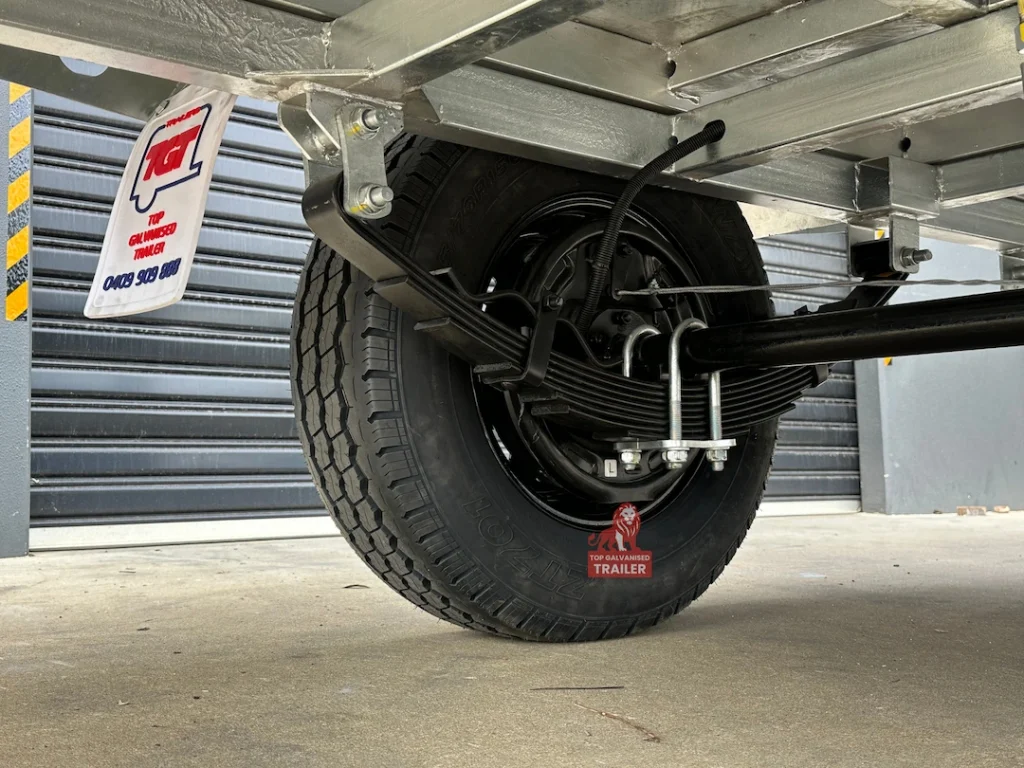

Suspension: Heavy Duty 60mm Wide 8 Leaf 8mm Eye-to-Eye Offroad Springs
Brakes: 12″ Electric Drum on Two Wheels, Dexter Hub (2 Tonne Bearings 25580/15123)
Jockey Wheel: 8″ Swing Up Heavy Duty
Side Walls: 425mm High, One-Piece Folded Up (Not Bolted)
Step-up Platforms: On Both Sides
Tie Down Rails: All Around
Ladder Rack Holders
Cage: 600mm or 900mm (Sold Separately)
Toolbox: Sink-in Aluminium Toolbox

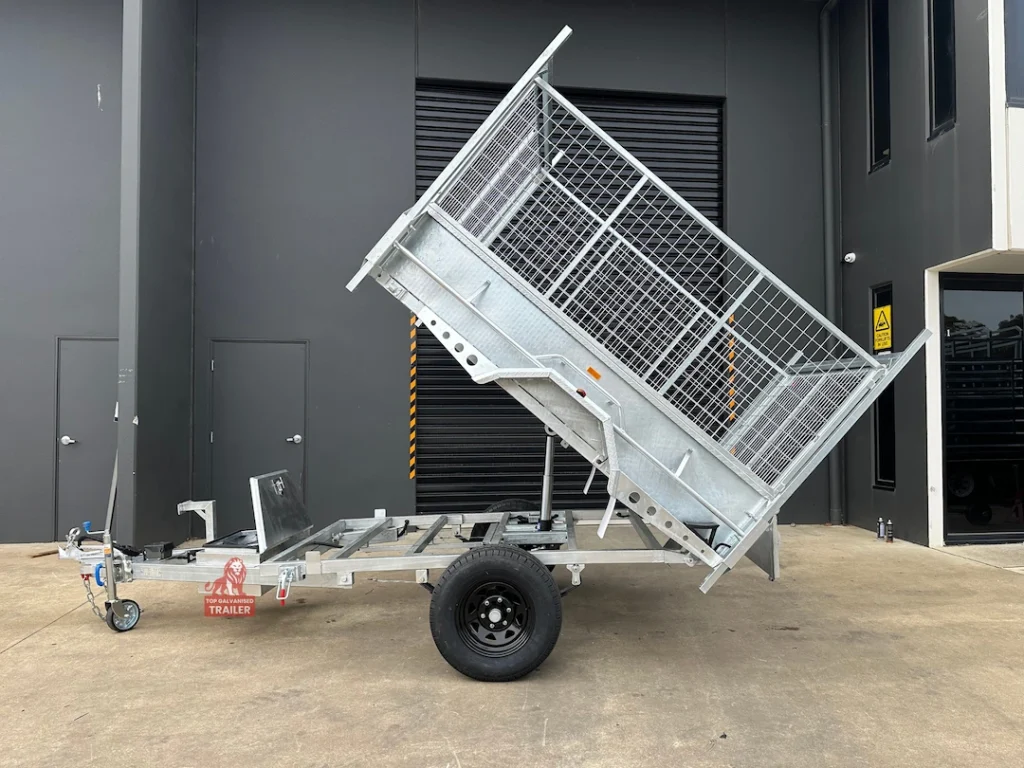

Hydraulic Pump: 2.0T Rated, 3-Stage Hydraulic Cylinder with Hydraulic Power Pack
Battery: 120 AMP Deep Cycle Battery

Optional Extras

Galvanised Cage 600/900mm
Spare Wheel
Spare Wheel Holder
Onsite Registration
Canvas Cover
Ladder Racks (Pair)
Aluminium Ramps
Stabiliser Legs
Elecbrakes Brake Controller
Other Modifications

Videos

Warranty

5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
Used or Second-hand trailers and parts are not covered under this warranty.

8×5 Hydraulic Tipper Trailer Galvanised Single Axle Tipper 1800kg ATM

$6,499.00 ~~$6,999.00~~ $500.00 off

In Stock

Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.

5-Year Structural Warranty

Register & Go in 30 Minutes

Buy Now, Pay Later

Additional Options – Priced Separately:

Available on backorder

Cage

Spare Wheel (235/75R15 LT)

Aluminium Ramps

Ramp Holders - mounted on mudguards

Canvas Cover

Ladder Racks

Registration

Product price:	$6,499.00
Total options:
Order total:

Request a Quote

Choose your payment option

Pay Deposit (30%)
Pay in Full

Pay a 30% deposit

Please note: For lead times or order questions, request a quote or call. Online orders may take up to 5 days to process.

Get a Quote

Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.

Categories: Hydraulic Tipper Trailers, Single Axle Trailers

SKU: HYDTBT1885

Description

8×5 Single Axle Hydraulic Tipper Trailer with Electric Brakes 1.8T ATM

Why this 8×5 single axle tipper trailer stands out:

5 Year Structural Warranty for peace of mind
Hot dip galvanised – built to last 20+ years
Compact size & lightweight for easy manoeuvring
Electric brakes providing 1080kg of loading capacity
Australian assembled with premium components

Specifications

ATM: 1800kg
Tare: 720kg
Loading Capacity: 1080kg
Exterior Length: 4.19m
Exterior Width: 2.02m
Internal Size: 2400 x 1530 x 425mm
Drawbar: 1600mm; 100 x 50 x 4mm RHS
Coupling: 50mm Quick Release Coupling (3500kg rated)
Safety Chain: 10mm with Hammerlock Shackle (safe alternative to welding)
Surface Finish: Hot Dipped Galvanised (Rust Free)
Checker Plate: 2.5mm; Fully Welded Body & Chassis
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: 50mm Round Solid Single Axle
Wheels & Tyres: 15” Sunraysia Rims (Land Cruiser 6 Stud Pattern), 225/70R15C Tyres
Suspension: Heavy Duty 60mm Wide 8 Leaf 8mm Eye-to-Eye Offroad Springs
Brakes: 12″ Electric Drum on Two Wheels, Dexter Hub (2 Tonne Bearings 25580/15123)
Jockey Wheel: 8″ Swing Up Heavy Duty
Side Walls: 425mm High, One-Piece Folded Up (Not Bolted)
Step-up Platforms: On Both Sides
Tie Down Rails: All Around
Ladder Rack Holders
Cage: 600mm or 900mm (Sold Separately)
Toolbox: Sink-in Aluminium Toolbox
Hydraulic Pump: 2.0T Rated, 3-Stage Hydraulic Cylinder with Hydraulic Power Pack
Battery: 120 AMP Deep Cycle Battery

Optional Extras

Galvanised Cage 600/900mm
Spare Wheel
Spare Wheel Holder
Onsite Registration
Canvas Cover
Ladder Racks (Pair)
Aluminium Ramps
Stabiliser Legs
Elecbrakes Brake Controller
Other Modifications

Videos

Warranty

5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
Used or Second-hand trailers and parts are not covered under this warranty.
