Description
7×4 Box Trailer with Brakes 1400kg ATM
If you’re after a heavy duty single axle 7×4 box trailer, this hot dip galvanised trailer is a top pick. It’s designed to handle tough jobs while staying compact, making it ideal for light commercial work. This 7×4 galvanised trailer is built tough with reinforced chassis support beams and a hot dip galvanised finish. This gives it excellent rust resistance and reduces the need for constant cleaning and maintenance! It’s a lightweight 7×4 box trailer, making it easy to tow, even with smaller vehicles. This 7×4 trailer measurements are 3.83m in length and 1.7m in width, giving you extra length over a 6×4 trailer. It’s ideal if you need to carry longer or bulkier loads without going up to a dual axle setup. Equipped with new 185/70R14C tyres, this 7×4 trailer for sale is ready to hit the road straight away. It also features eye to eye springs, which offer better ride comfort, increased load-carrying capacity, and less wear and tear on the chassis when compared to basic slipper springs. This means smoother towing and longer life for your trailer. This is also a 7×4 trailer with brakes, making it a safe and reliable choice for heavier towing needs. As a braked single axle trailer, it meets legal requirements for heavier loads while providing extra control when towing.Benefits of this 7×4 Galvanised Trailer over Dual Axle Trailers:
- Lower Cost: Generally less expensive to purchase and maintain.
- Lighter Weight: Easier to tow.
- Maneuverability: More agile, easier to handle in tight spaces.
- Simpler Maintenance: Galvanised rust free, fewer tyres, brakes, and bearings to maintain.
Specifications
- ATM: 1400kg
- Tare: 400kg (Exclude cage)
- Loading Capacity: 1000kg
- Exterior Length: 3.78m
- Exterior Width: 1.70m
- Internal Size: 2110 x 1230 x 300 mm
- Drawbar: 1600mm; 100 x 50 x 3mm RHS
- Coupling: 50 mm Quick Release Coupling (ADR Standards)

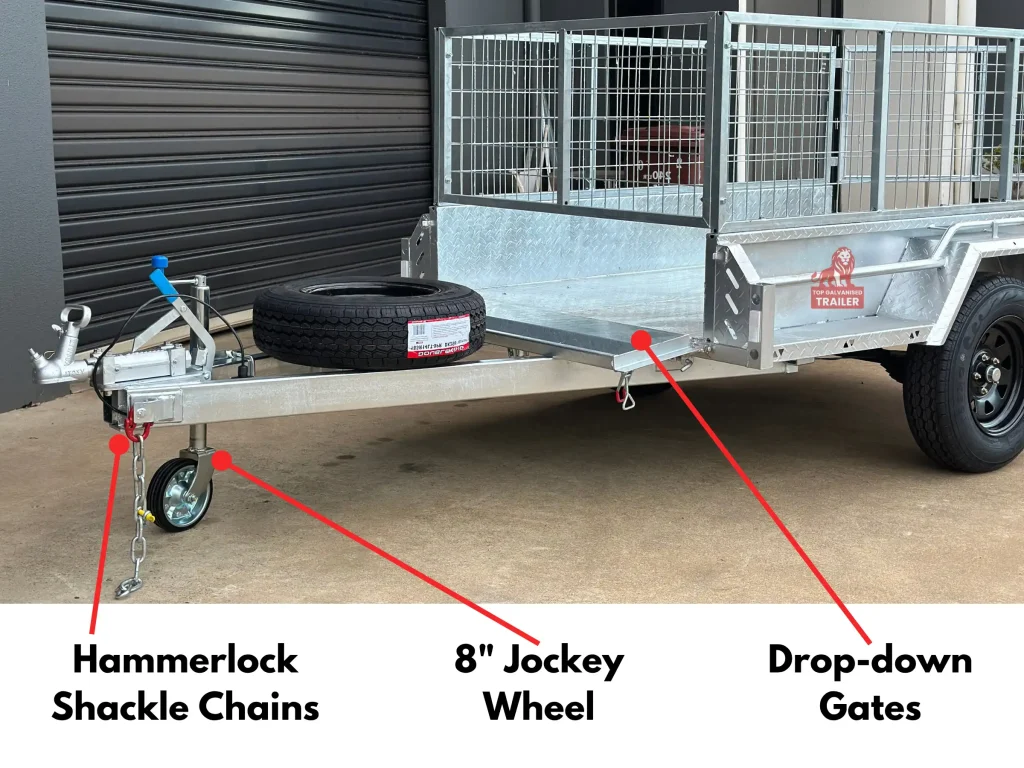

- Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis

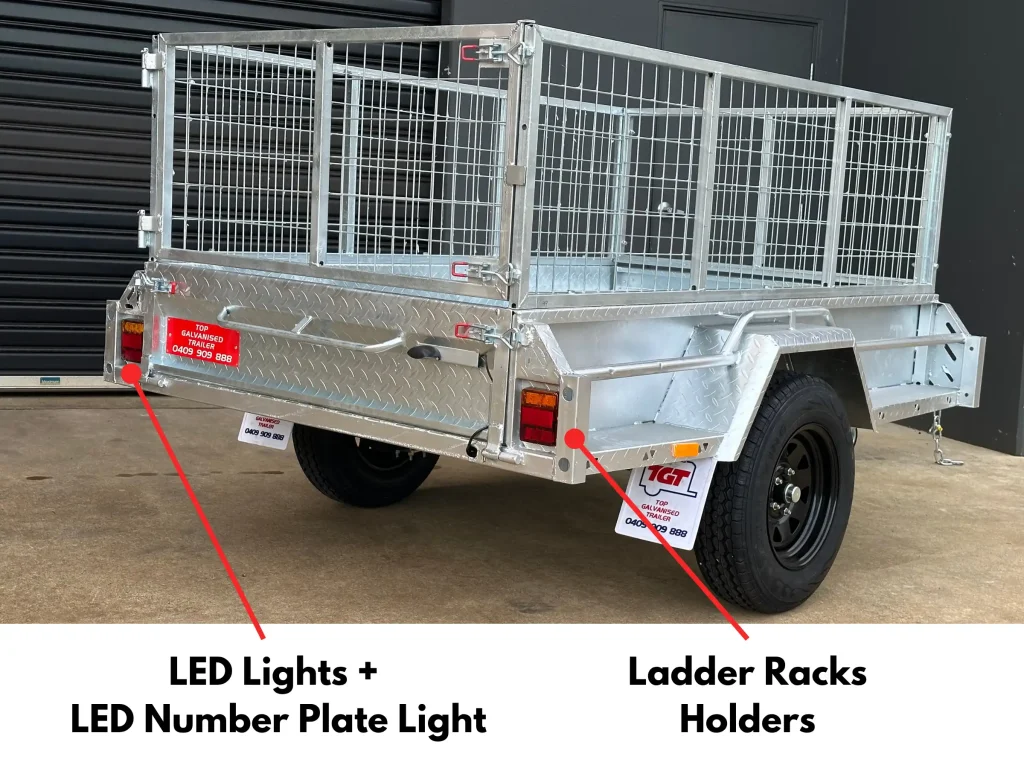

- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: 50mm Round Solid Axle
- Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
- Suspension: 9 Leaf Eye to Eye Springs (NOT Slipper Springs)
- Brakes: 10″ Mechanical Disc Brake
- Jockey Wheel: 8” Swing Up Heavy Duty

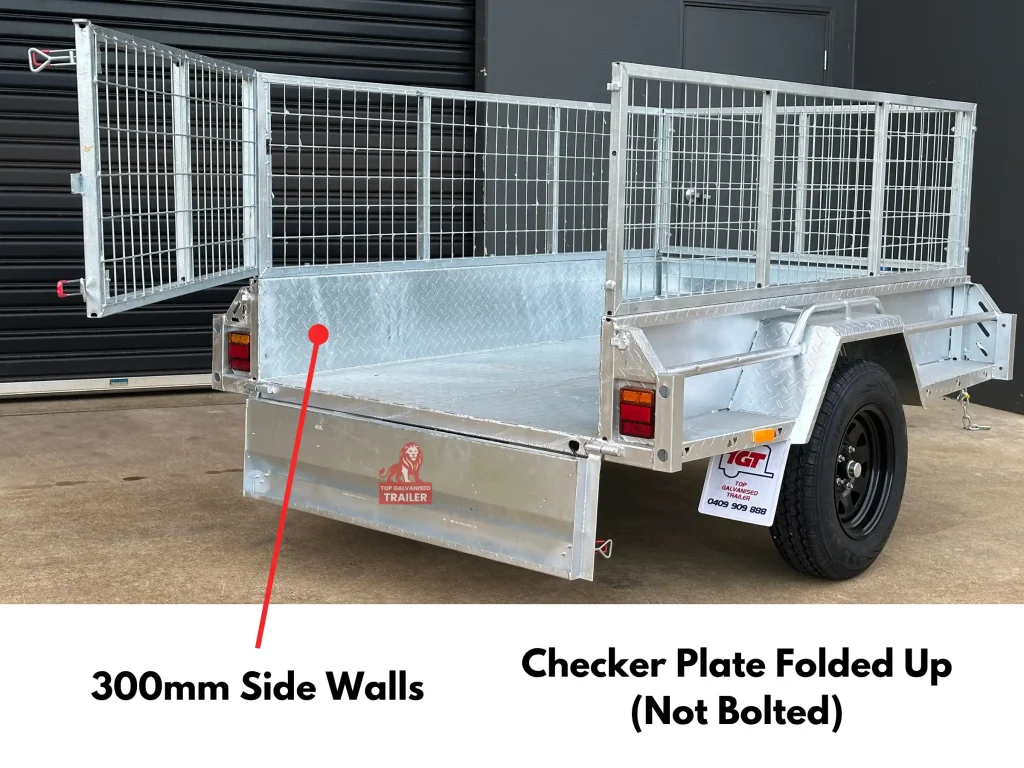

- Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)

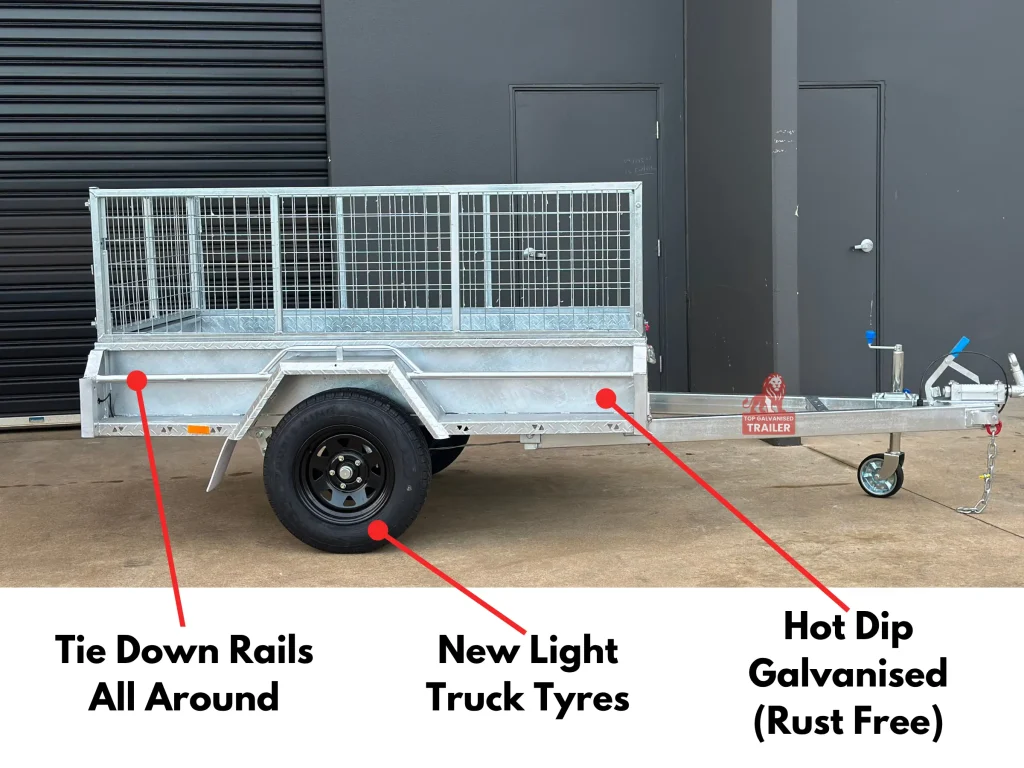

- Tie Down Rails
- Ladder Racks Holders
- Cage: 600 or 900mm (Sold Separately)
- 50×50mm SHS Horizontal Support Beams
- 40×40mm SHS Vertical Support Beam
Optional Extras
- Galvanised Cage 600/900mm
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Canvas Cover
- Ladder Racks (Pair)
- Mesh Tailgate Ramps
- Aluminium Ramps
- Aluminium Toolbox
- Mower Pad
- Other Customisations
Videos
Coming soon…
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.
7×4 Single Axle Box Trailer with Brakes Galvanised 1400kg ATM
$2,819.00 $2,940.00 $121.00 off
In Stock
Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later
Additional Options – Priced Separately:
Get a Quote
Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.
Categories: Single Axle Trailers
SKU: SABTHD74
Description
7×4 Box Trailer with Brakes 1400kg ATM
If you’re after a heavy duty single axle 7×4 box trailer, this hot dip galvanised trailer is a top pick. It’s designed to handle tough jobs while staying compact, making it ideal for light commercial work. This 7×4 galvanised trailer is built tough with reinforced chassis support beams and a hot dip galvanised finish. This gives it excellent rust resistance and reduces the need for constant cleaning and maintenance! It’s a lightweight 7×4 box trailer, making it easy to tow, even with smaller vehicles. This 7×4 trailer measurements are 3.83m in length and 1.7m in width, giving you extra length over a 6×4 trailer. It’s ideal if you need to carry longer or bulkier loads without going up to a dual axle setup. Equipped with new 185/70R14C tyres, this 7×4 trailer for sale is ready to hit the road straight away. It also features eye to eye springs, which offer better ride comfort, increased load-carrying capacity, and less wear and tear on the chassis when compared to basic slipper springs. This means smoother towing and longer life for your trailer. This is also a 7×4 trailer with brakes, making it a safe and reliable choice for heavier towing needs. As a braked single axle trailer, it meets legal requirements for heavier loads while providing extra control when towing.Benefits of this 7×4 Galvanised Trailer over Dual Axle Trailers:
- Lower Cost: Generally less expensive to purchase and maintain.
- Lighter Weight: Easier to tow.
- Maneuverability: More agile, easier to handle in tight spaces.
- Simpler Maintenance: Galvanised rust free, fewer tyres, brakes, and bearings to maintain.
Specifications
- ATM: 1400kg
- Tare: 400kg (Exclude cage)
- Loading Capacity: 1000kg
- Exterior Length: 3.78m
- Exterior Width: 1.70m
- Internal Size: 2110 x 1230 x 300 mm
- Drawbar: 1600mm; 100 x 50 x 3mm RHS
- Coupling: 50 mm Quick Release Coupling (ADR Standards)
- Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: 50mm Round Solid Axle
- Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
- Suspension: 9 Leaf Eye to Eye Springs (NOT Slipper Springs)
- Brakes: 10″ Mechanical Disc Brake
- Jockey Wheel: 8” Swing Up Heavy Duty
- Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
- Tie Down Rails
- Ladder Racks Holders
- Cage: 600 or 900mm (Sold Separately)
- 50×50mm SHS Horizontal Support Beams
- 40×40mm SHS Vertical Support Beam
Optional Extras
- Galvanised Cage 600/900mm
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Canvas Cover
- Ladder Racks (Pair)
- Mesh Tailgate Ramps
- Aluminium Ramps
- Aluminium Toolbox
- Mower Pad
- Other Customisations
Videos
Coming soon…
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.
