8×5 High Side Box Trailer – More Depth, More Versatility

Need more space for taller loads? This high side box trailer gives you that extra cubic space while staying easy to tow and store. Designed for users who want a practical upgrade from standard trailers, this 8×5 single axle trailer offers 920kg load capacity and more usable space. This high sided trailer stands out with 425mm high sides, offering significantly more bed depth than the standard 300mm walls. This extra height makes a big difference when you’re transporting loose materials, bulky items, or gear that requires added containment. Additionally, this 8×5 high side box trailer is fully welded and fully hot dip galvanised in molten zinc. This process coats the trailer inside and out, providing complete protection from rust and corrosion. It’s made to handle Australian weather, rough roads, and years of use. Another excellent feature of our galvanised trailers is that all the electrical wiring runs inside the chassis tubes. This design shields the wires from water, debris, and physical damage, ensuring long-term durability and added peace of mind.

Order yours today!

Select Your Desired Optional Extras such as cage, canvas cover, toolbox, spare wheel and more!
5-Year Structural Warranty*
Low Rate Finance Options Available
Register Onsite & Go in 30 Minutes

If you are looking for a smaller high sided trailer, check out our 7×5 Box Trailer High Sides!

Specifications

ATM: 1400 kg
Tare: 480 kg (Exclude cage)
Loading Capacity: 920 kg
Exterior Length: 4.13 m
Exterior Width: 2.0 m
Internal Size: 2400 x 1530 x 425 mm
Drawbar: 1600 mm; 100 x 50 x 3mm RHS

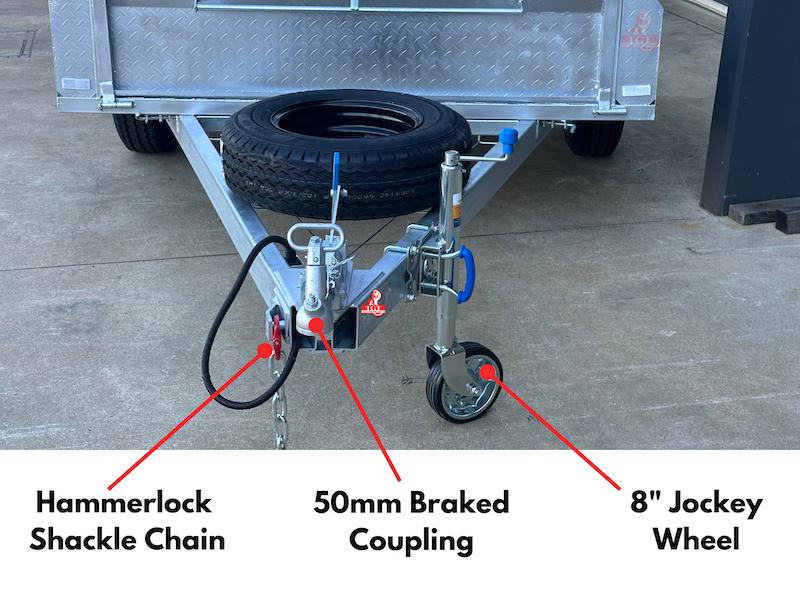

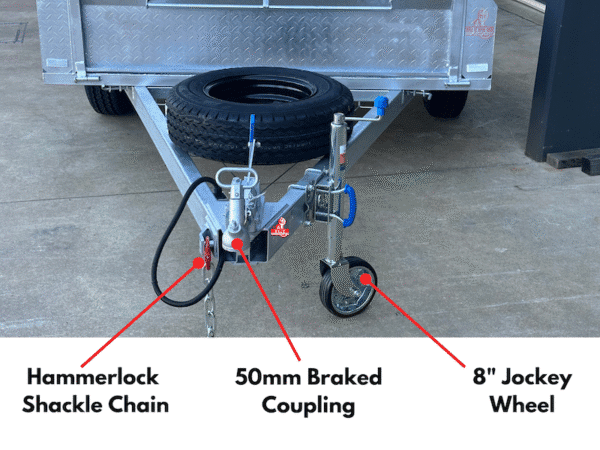

Coupling: 50 mm Over-ride Braked Coupling (ADR Standards)
Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Checker Plate: 2.5mm, Fully Welded Body & Chassis
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: 50 mm Round Solid Axle

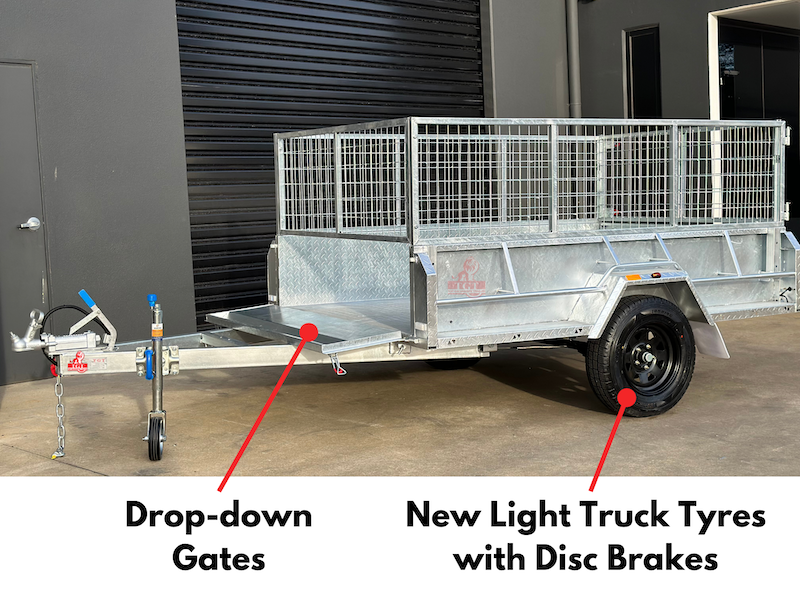

Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
Suspension: 9 Leaf Eye to Eye Springs (NOT Slipper Springs)
Brakes: 10″ Mechanical Disc Brake
Jockey Wheel: 8” Swing Up Heavy Duty

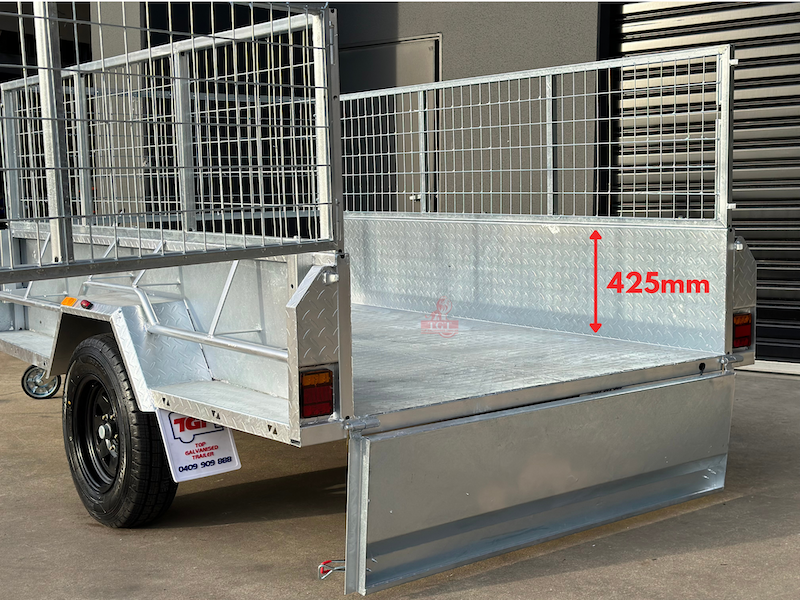

Side Walls: 425 mm High Sides, One Piece Folded Up (Not Bolted)
Extended Step-up Platforms On Both Sides

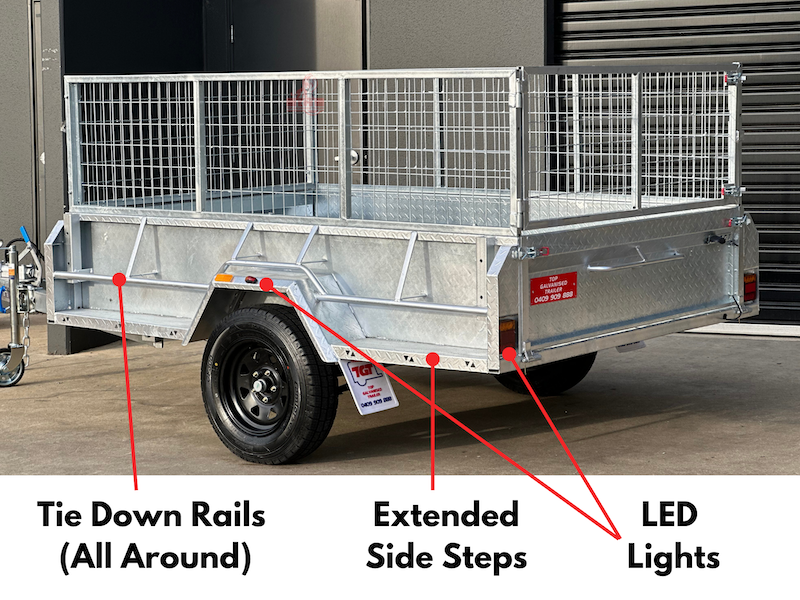

Tie Down Rails
Ladder Racks Holders

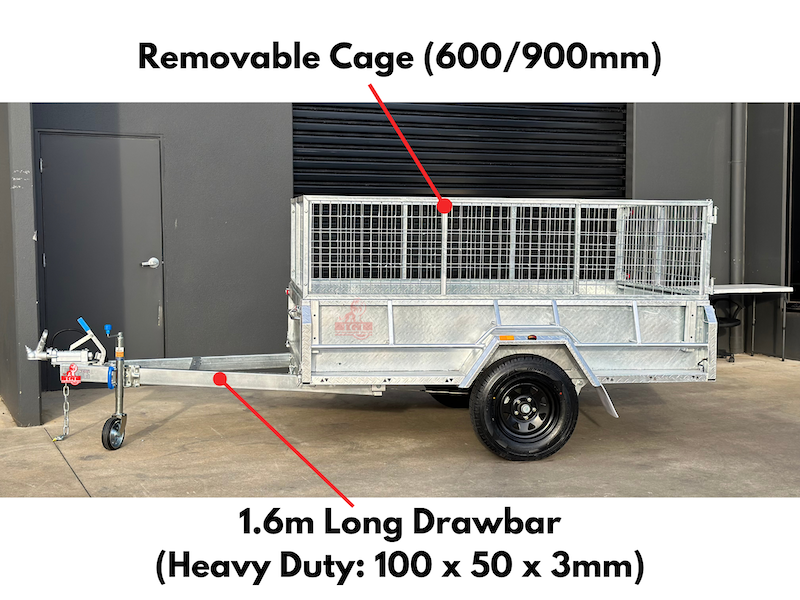

Cage: 600 or 900mm (Sold Separately)
50×50mm SHS Horizontal Support Beams
40×40mm SHS Vertical Support Beam

Optional Extras

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Galvanised Cage 600/900mm
Canvas Cover
Ladder Racks (Pair)
Mesh Tailgate Ramps
Aluminium Ramps
Aluminium Toolbox
Mower Pad
Other Customisations

Videos

Warranty

5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
Used or Second-hand trailers and parts are not covered under this warranty.

8×5 Single Axle Box Trailer High Sides Galvanised 1400kg ATM

$3,200.00 ~~$3,500.00~~ $300.00 off

In Stock

Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.

5-Year Structural Warranty

Register & Go in 30 Minutes

Buy Now, Pay Later

Additional Options – Priced Separately:

Cage

Spare Wheel

Ramps

Canvas Cover

Ladder Racks

Toolbox

Registration

Product price:	$3,200.00
Total options:
Order total:

Request a Quote

Choose your payment option

Pay Deposit (30%)
Pay in Full

Pay a 30% deposit

Please note: For lead times or order questions, request a quote or call. Online orders may take up to 5 days to process.

Get a Quote

Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.

Categories: Single Axle Trailers

SKU: SABTHD85-425
