Description
Advantages of Flat Bed Trailers compared to Box Trailers:
- Versatility: A forklift can more quickly and efficiently load and unload products because of the trailer’s flat, open-top surface.
- Size and Height: Compared to box trailers, flat deck trailers are wider and taller, enabling the transportation of larger or taller objects.
- Weight Distribution: Flat top trailers feature a flatter surface that allows for more even weight distribution, suitable for heavy or irregularly shaped cargo.
Specifications
- ATM: 3500kg (upgradable to 4500kg)
- Tare: 1090kg
- Loading Capacity: 2410kg (upgradable to 3380kg)
- Exterior Length: 5.50m
- Exterior Width: 2.10m
- Internal Size: 3520 x 2020 x 300mm

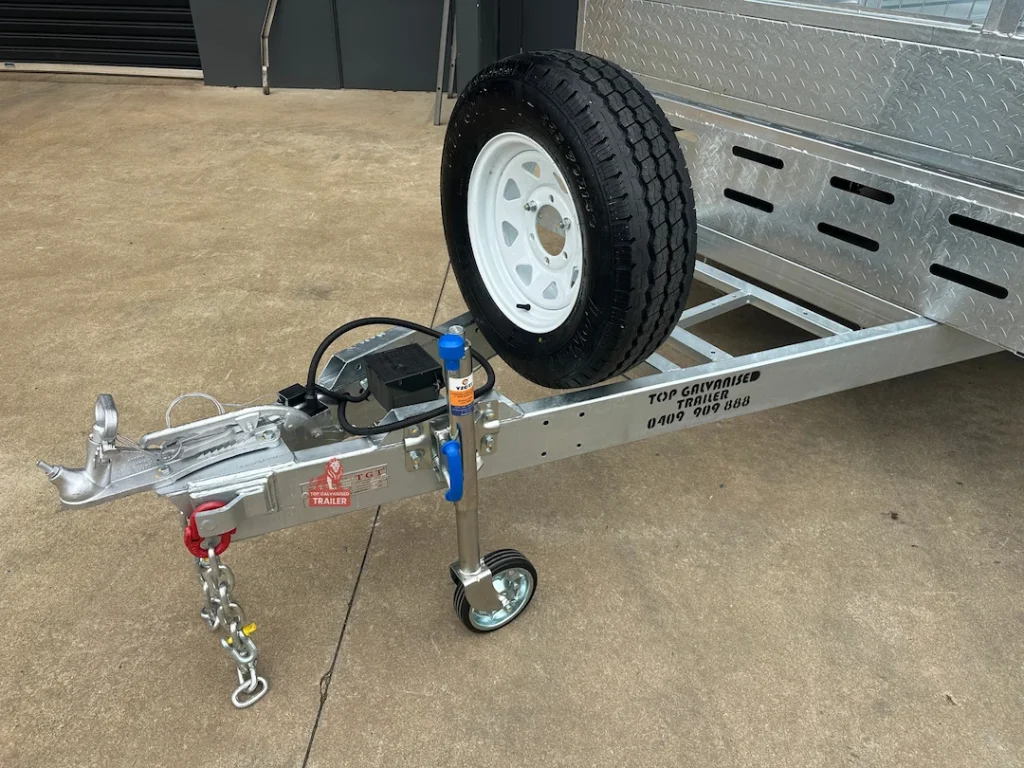

- Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
- Coupling: 50mm Quick Release Coupling 3500kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle
- Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Light Truck Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swing Up Heavy Duty

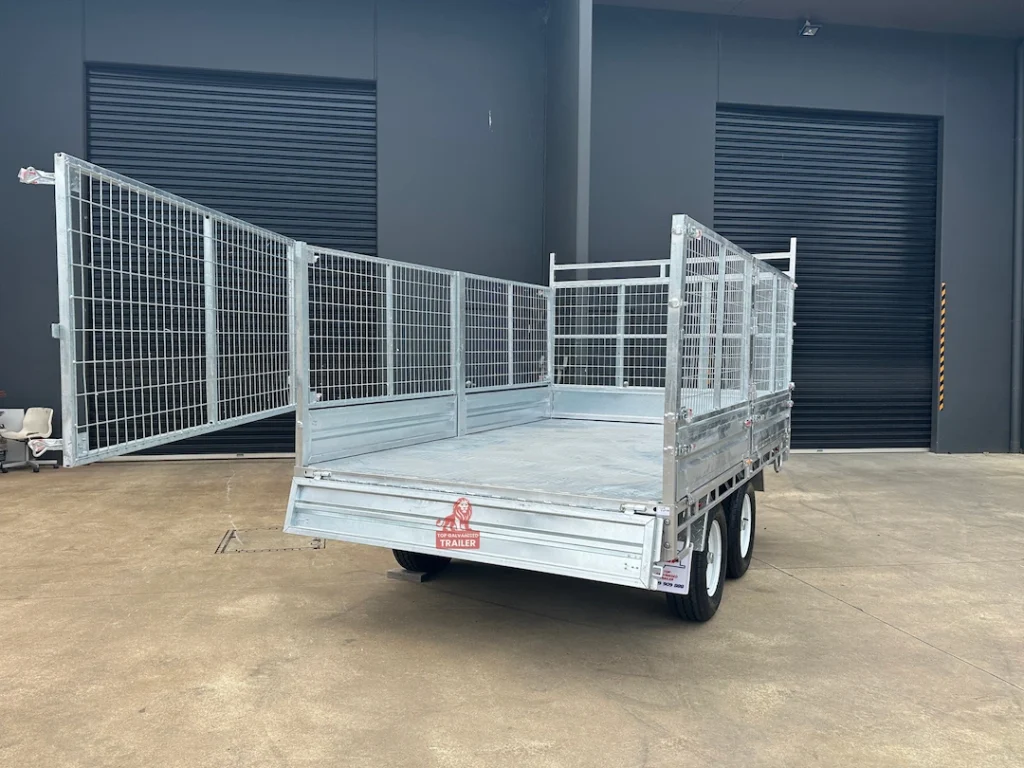

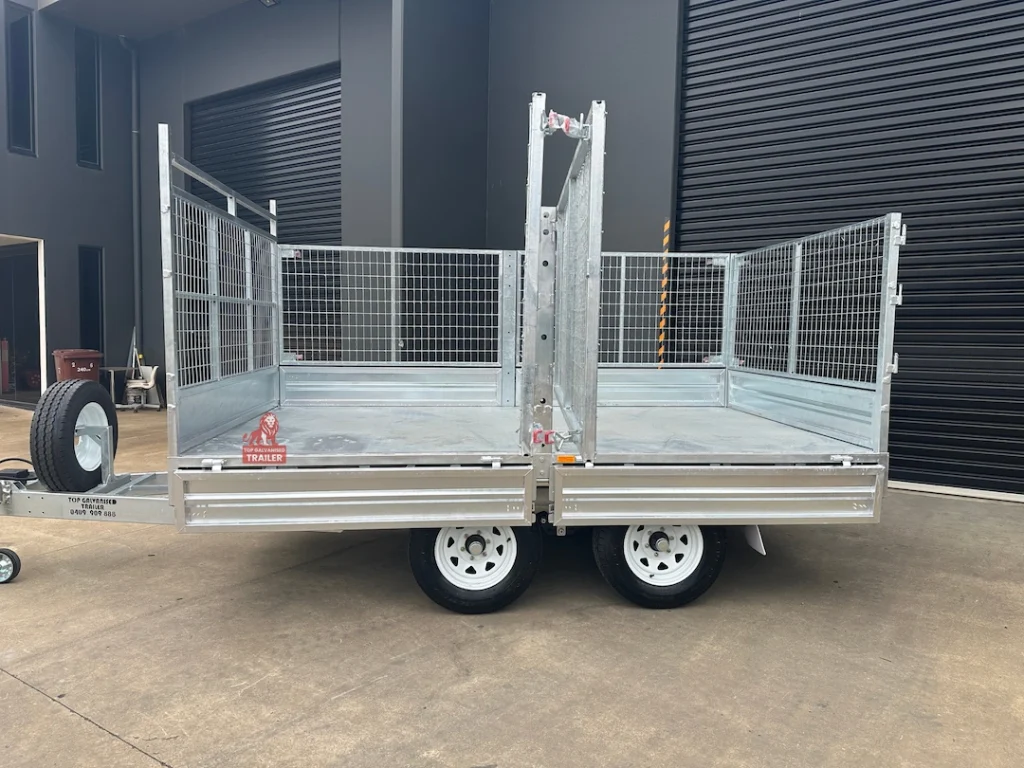

- Sides: 300mm; Removable Side & Rear Drop Down Gates

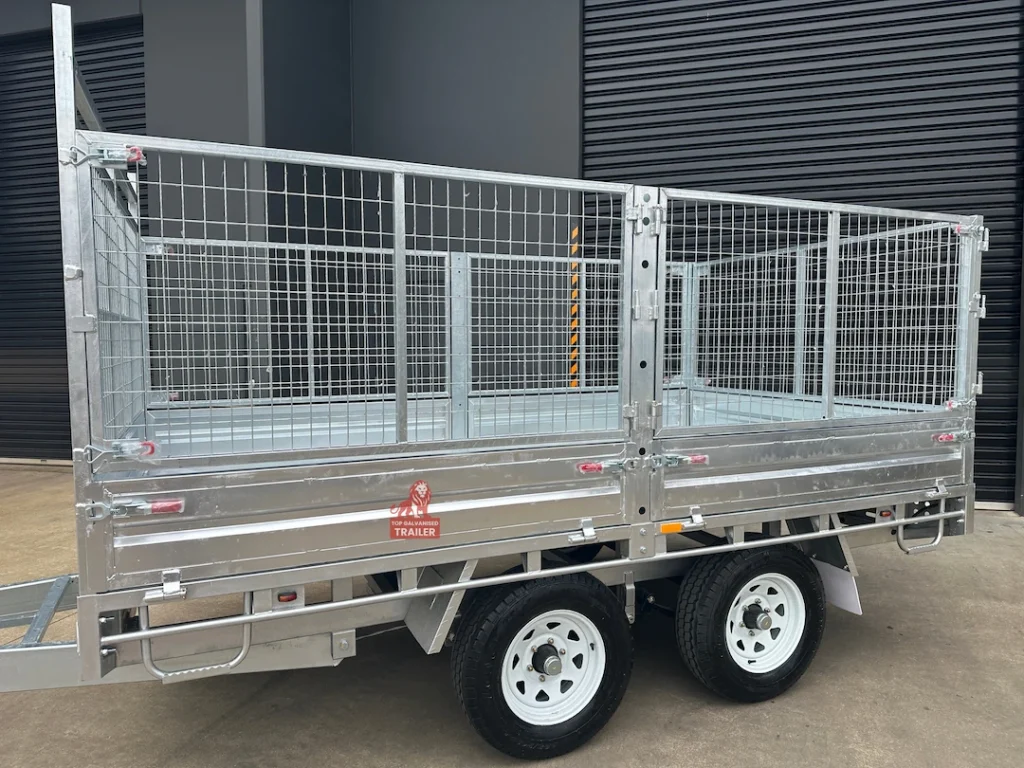

- Cage: 900mm High Removable Cage (EXTRA OPTION)
- Tie Down Rails All Around
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised 900mm High Cage
- Aluminium Ramps
- Aluminium Ramp Holders
- Aluminium Toolbox
- Upgrade to ATM-4500kg
- Elecbrakes Brake Controller
- Other Customisations
Videos
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.
12×7 Flat Top Trailer Hot Dip Galvanised Flatbed Trailer 3500kg ATM
From
*Unless otherwise specified, cage and other accessories are sold separately. See pricing details below.
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later
Additional Options – Priced Separately:
Get a Quote
Categories: Flat Top Trailers
SKU: 127FTT35
Description
Advantages of Flat Bed Trailers compared to Box Trailers:
- Versatility: A forklift can more quickly and efficiently load and unload products because of the trailer’s flat, open-top surface.
- Size and Height: Compared to box trailers, flat deck trailers are wider and taller, enabling the transportation of larger or taller objects.
- Weight Distribution: Flat top trailers feature a flatter surface that allows for more even weight distribution, suitable for heavy or irregularly shaped cargo.
Specifications
- ATM: 3500kg (upgradable to 4500kg)
- Tare: 1090kg
- Loading Capacity: 2410kg (upgradable to 3380kg)
- Exterior Length: 5.50m
- Exterior Width: 2.10m
- Internal Size: 3520 x 2020 x 300mm
- Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
- Coupling: 50mm Quick Release Coupling 3500kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle
- Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Light Truck Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swing Up Heavy Duty
- Sides: 300mm; Removable Side & Rear Drop Down Gates
- Cage: 900mm High Removable Cage (EXTRA OPTION)
- Tie Down Rails All Around
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised 900mm High Cage
- Aluminium Ramps
- Aluminium Ramp Holders
- Aluminium Toolbox
- Upgrade to ATM-4500kg
- Elecbrakes Brake Controller
- Other Customisations
Videos
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.
