Description
Specifications
- ATM: 3500kg (upgradable to 4.2T)
- Tare: 1550kg
- Loading Capacity: 1950kg (upgradable to 2600kg)
- Exterior Length: 5.50m
- Exterior Width: 2.18m
- Internal Size: 3505 x 2130 x 1833mm
- Height from ground to the floor: 800mm

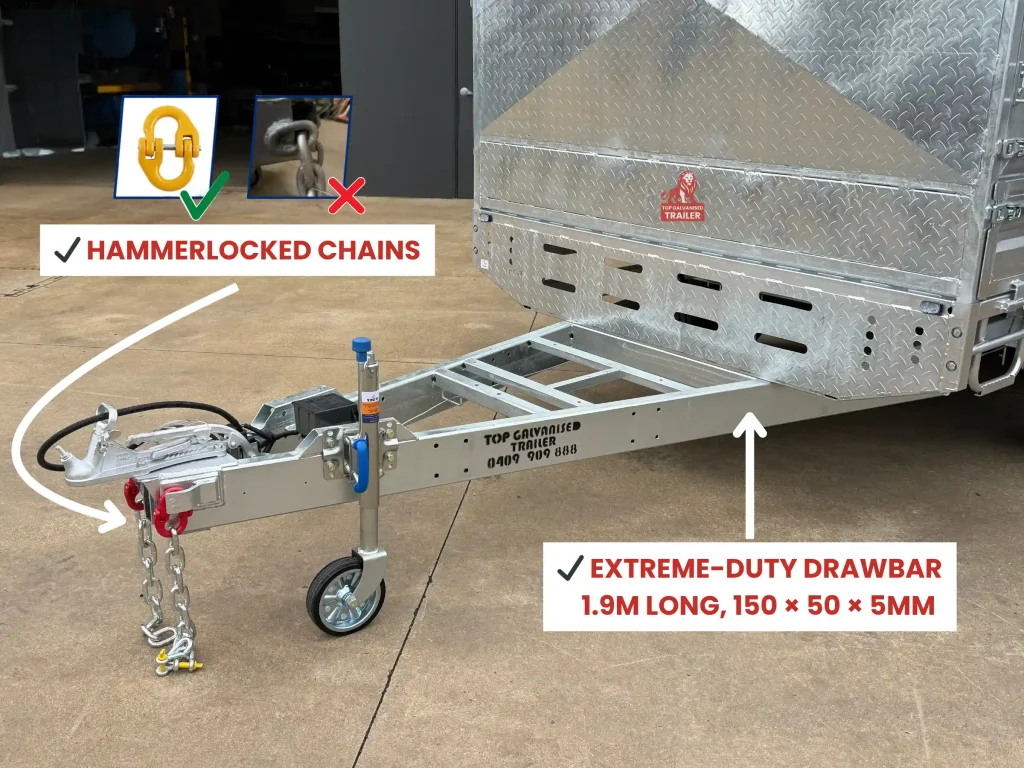

- Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
- Coupling: 50mm Quick Release Coupling 3500kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle
- Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub Fitted with 2 Tonne Bearings 25580/15123
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swing Up Heavy Duty

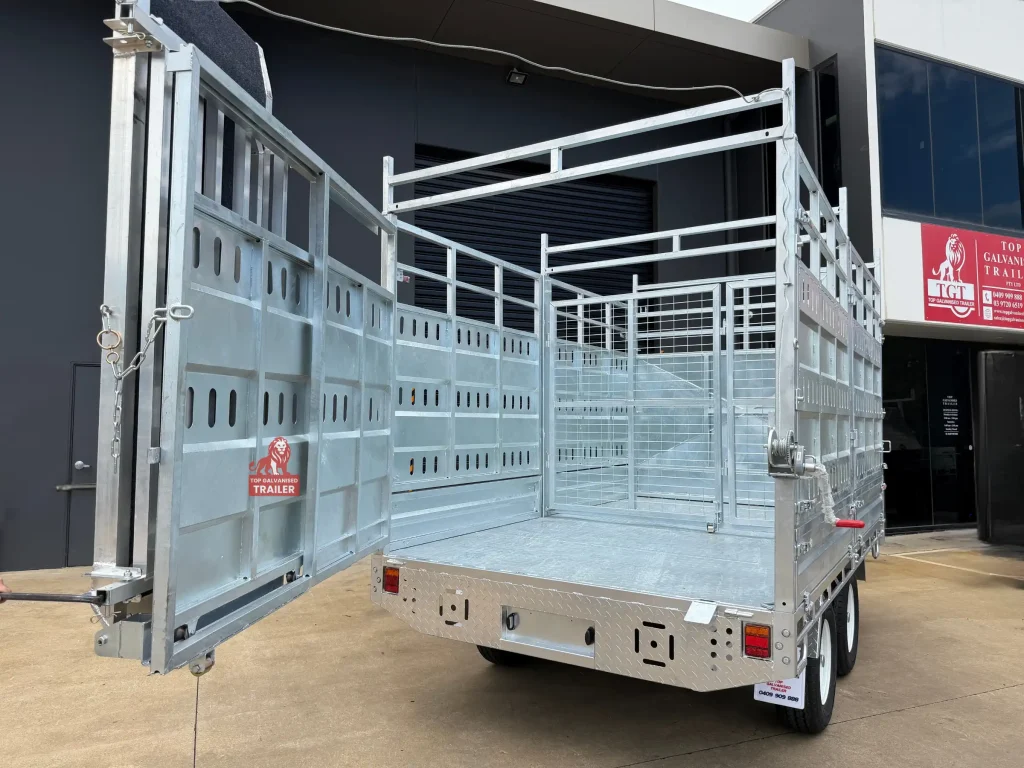

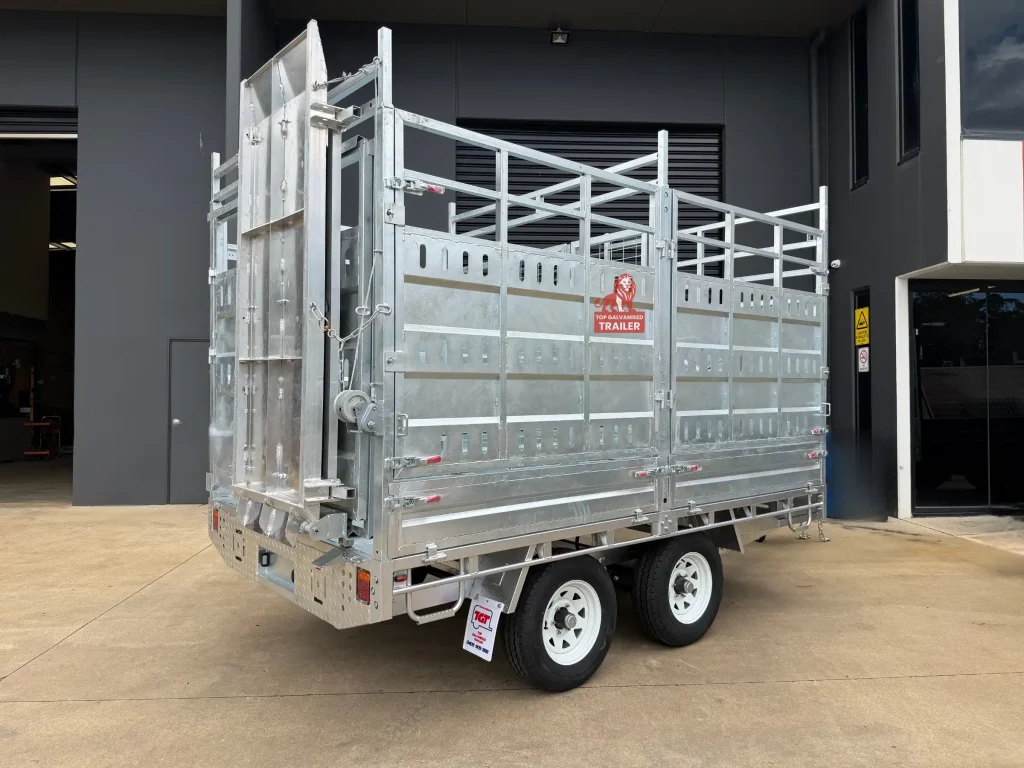

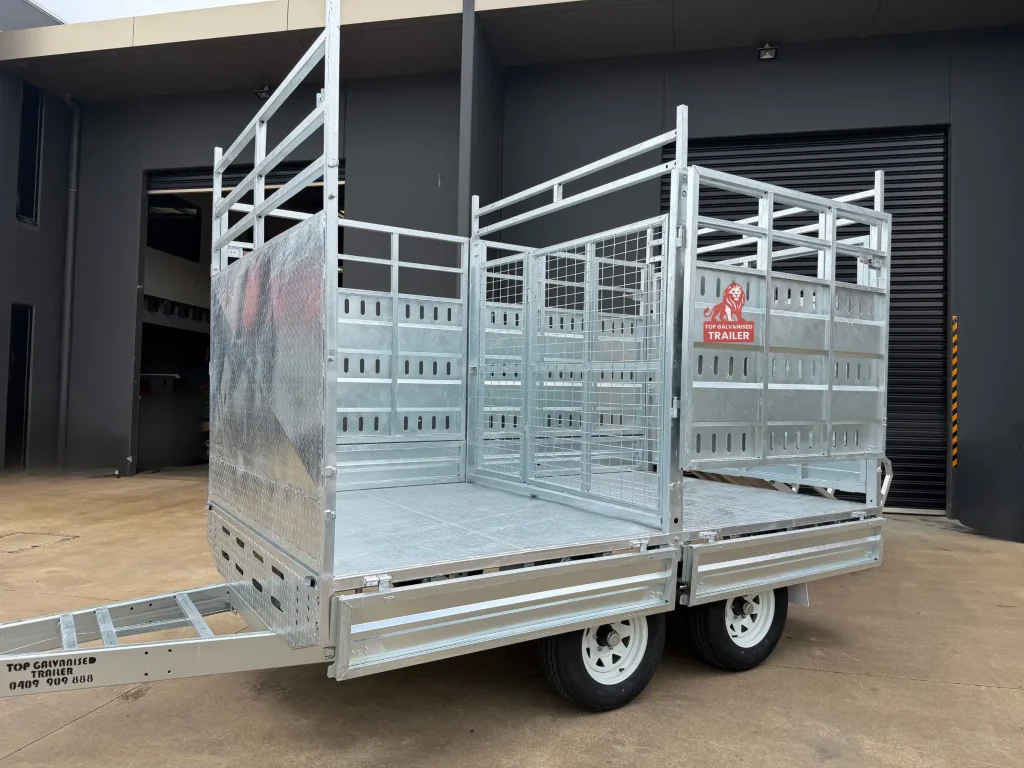

- Crate: 300mm high drop-down gates and flexible side panel doors with swing action for instant access

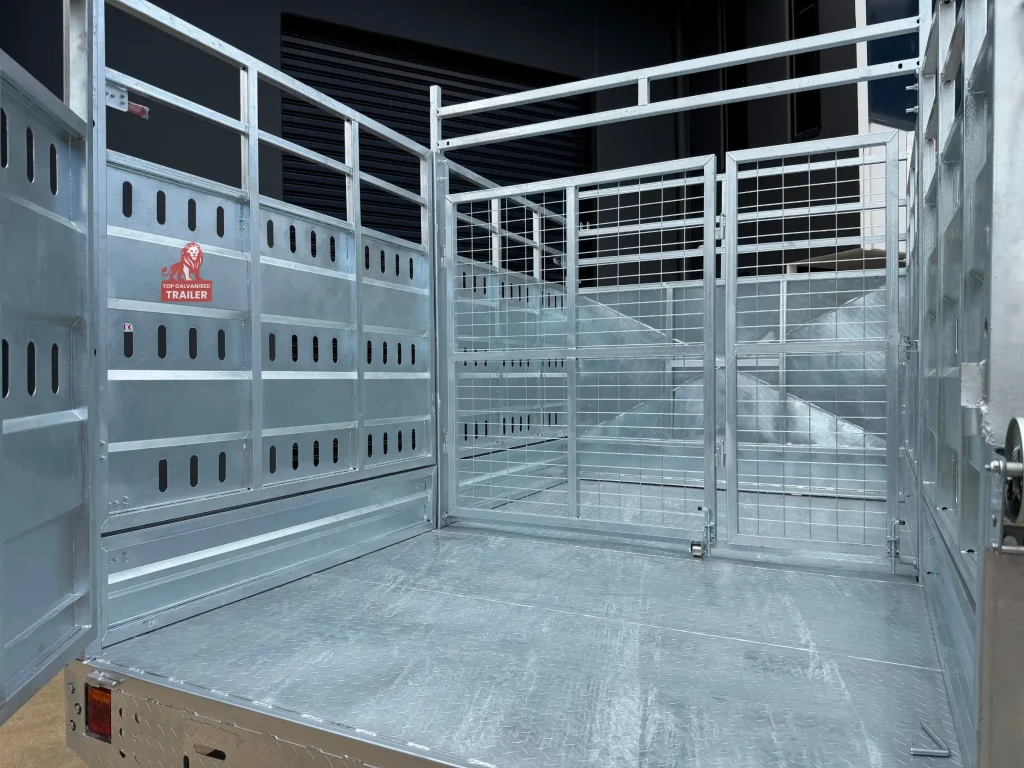

- Centre Cage: Two-stage opening centre cage for easy access

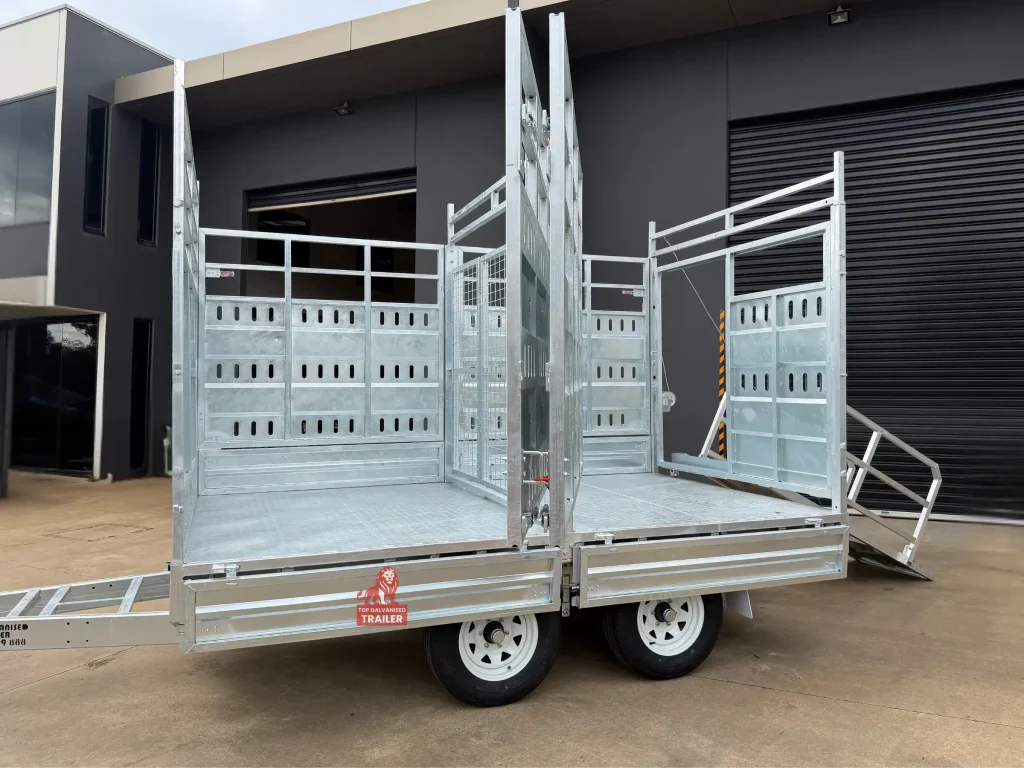

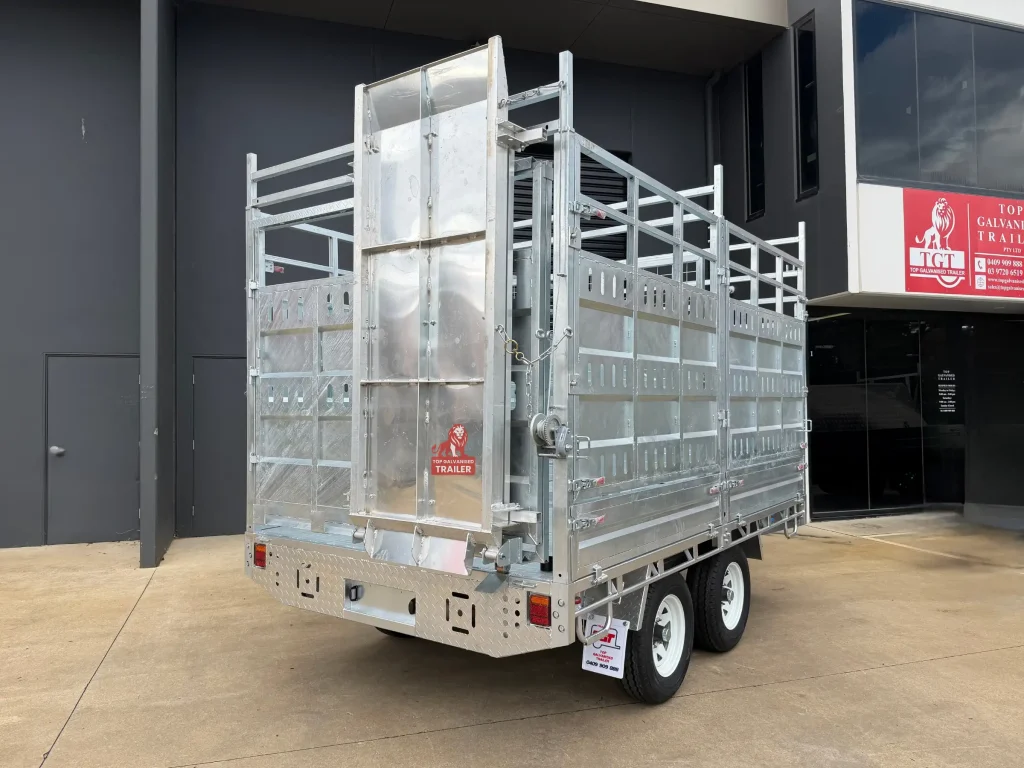

- Ramp: Lightweight aluminium ramp with safety rails, seamlessly integrated with the rear gate
- Tie Down Rails all Around
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Aluminium Toolbox
- Upgrade to ATM-4200kg
- Elecbrakes Brake Controller
- Other Customisations
Videos
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.

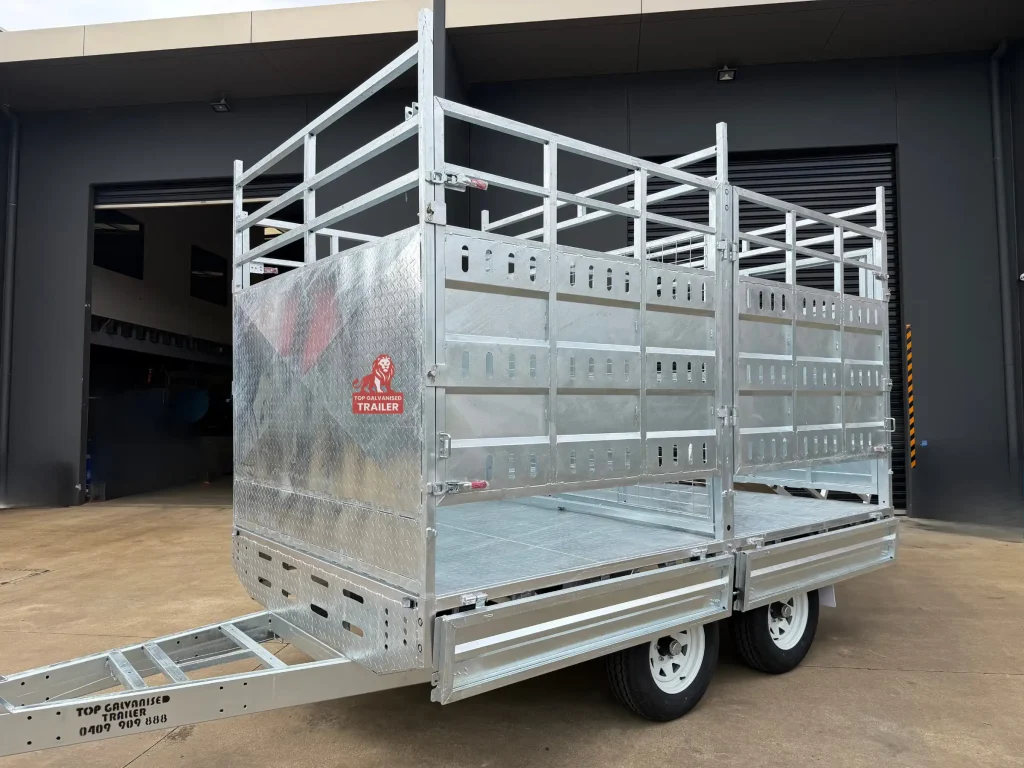

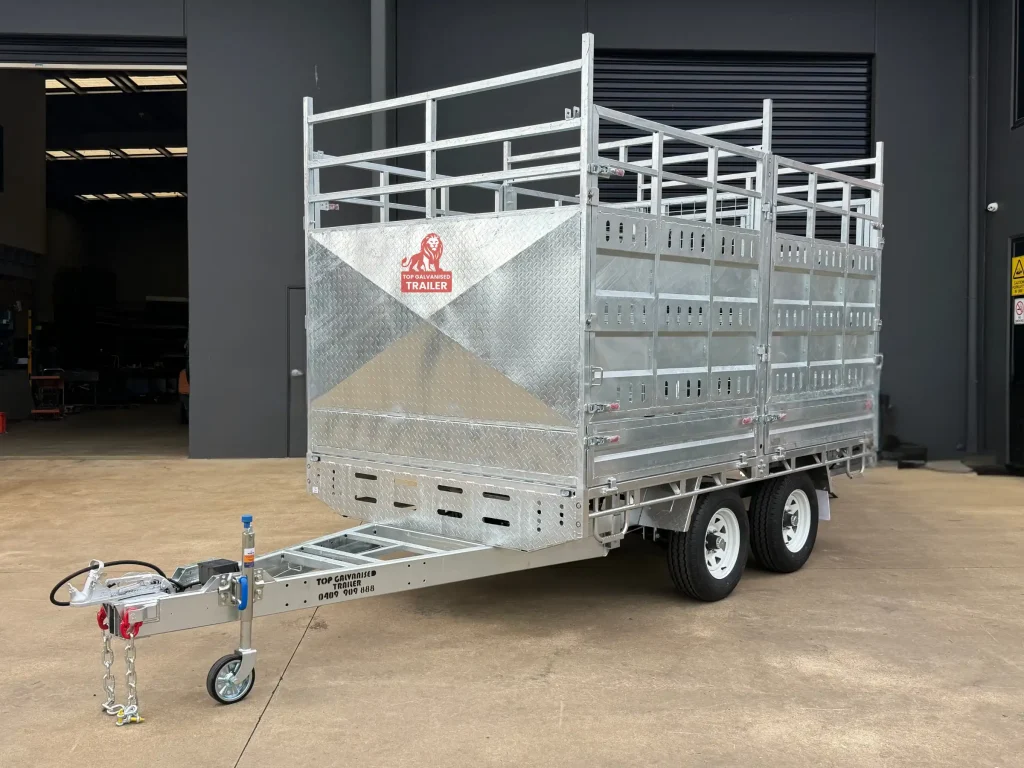

12×7 Livestock Trailer 3500kg ATM Galvanised Cattle Trailer with Dropdown Aluminium Ramp & Side Rails
