Description
8×5 Hydraulic Tipper Trailer Galvanised 3500kg ATM
- Resistant to rust and corrosion
- Easy to maintain
- Suitable for tough weather conditions
- Versatile and can be used for a variety of applications
- ADR & RVSA Approved & Certified.
Are tipper trailers any good?
Tipper trailers, also referred to as dump trailers, can be a useful tool for companies that frequently transport and dump heavy materials like soil, gravel, and construction waste. Its solid structure and hydraulic tilt feature make it simple to quickly and efficiently transport and dump heavy loads, saving you time and labour. Moreover, its hot-dipped galvanised design can be used in tough outdoor environments without fear of rust or corrosion. Don’t forget to check out our other range of Galvanised Hydraulic Tipper Trailers: 10×5 If you have any questions or need assistance, please don’t hesitate to Contact Us.
Specifications
- ATM: 3500kg (upgradable to 4200kg)
- Tare: 1020kg (Inc. cage)
- Loading Capacity: 2480kg
- Exterior Length: 4.49m
- Exterior Width: 2.02m
- Internal Size: 2400 x 1530 x 425mm

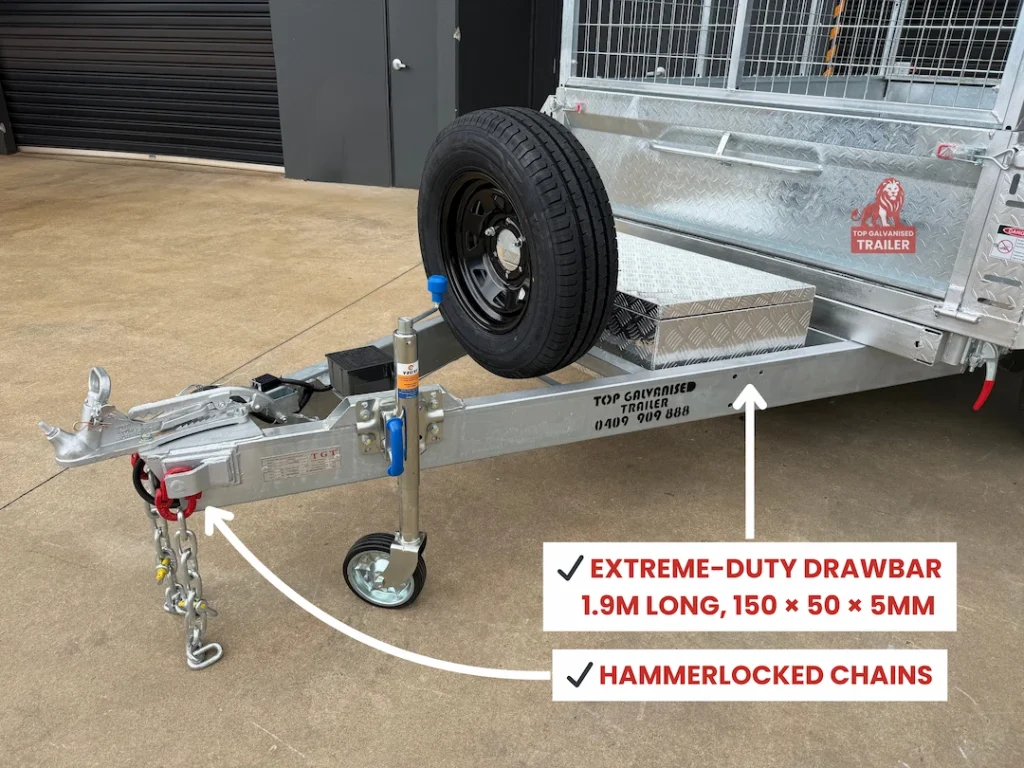

- Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
- Chassis: Upper Chassis 70×50x3mm RHS, Lower Chassis 100x50x5mm RHS Steel Tubes
- Coupling: 50mm Quick Release Coupling 3500kg
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle
- Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swing Up Heavy Duty
- Side Walls: 425mm High Sides, One Piece Folded Up (Not Bolted)
- Step-up Platforms On Both Sides
- Tie Down Rails All Around
- Ladder Racks Holders
- Cage: 600 or 900mm (Sold Separately)
- Ramps: Aluminium Ramps (Sold Separately)
- Ramp Holders: Holders to Store Ramps; Mounted on Mudguards (Sold Separately)
- Toolbox: Fitted Drawbar Aluminium Toolbox

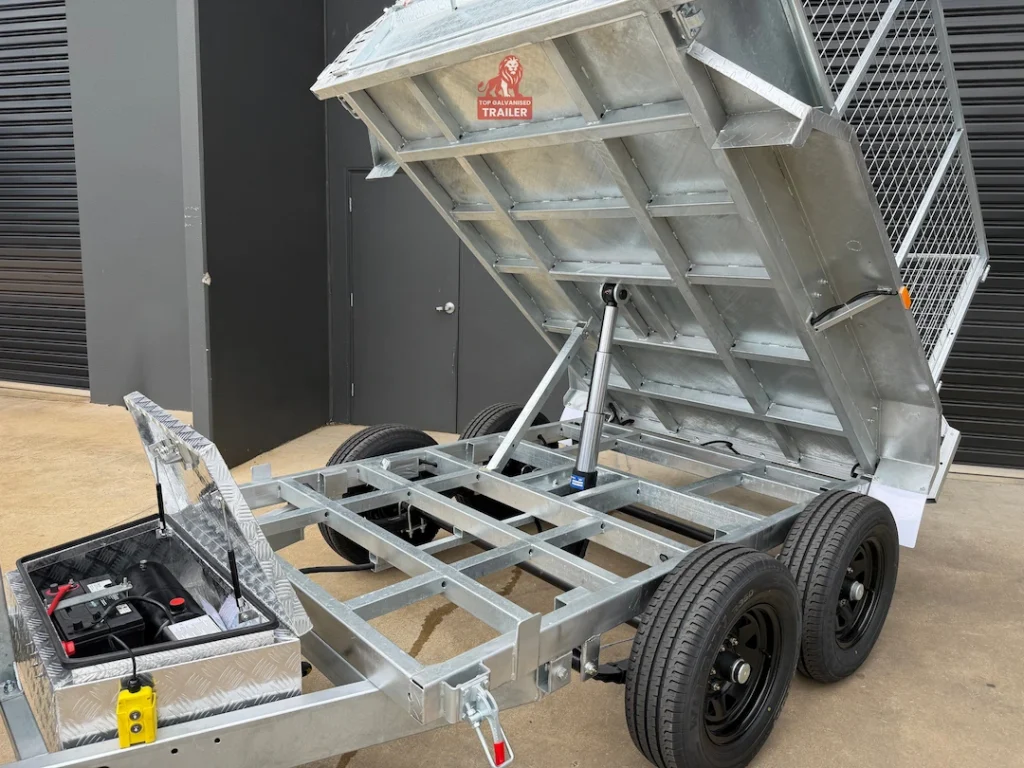

- Hydraulic Pump: 4.5 Ton, 1.2m Hydraulic Cylinder (4 Stages) with Hydraulic Power Pack
- Battery: 120 AMP Deep Cycle Battery
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised Cage 600/900mm
- Canvas Cover
- Ladder Racks (Pair)

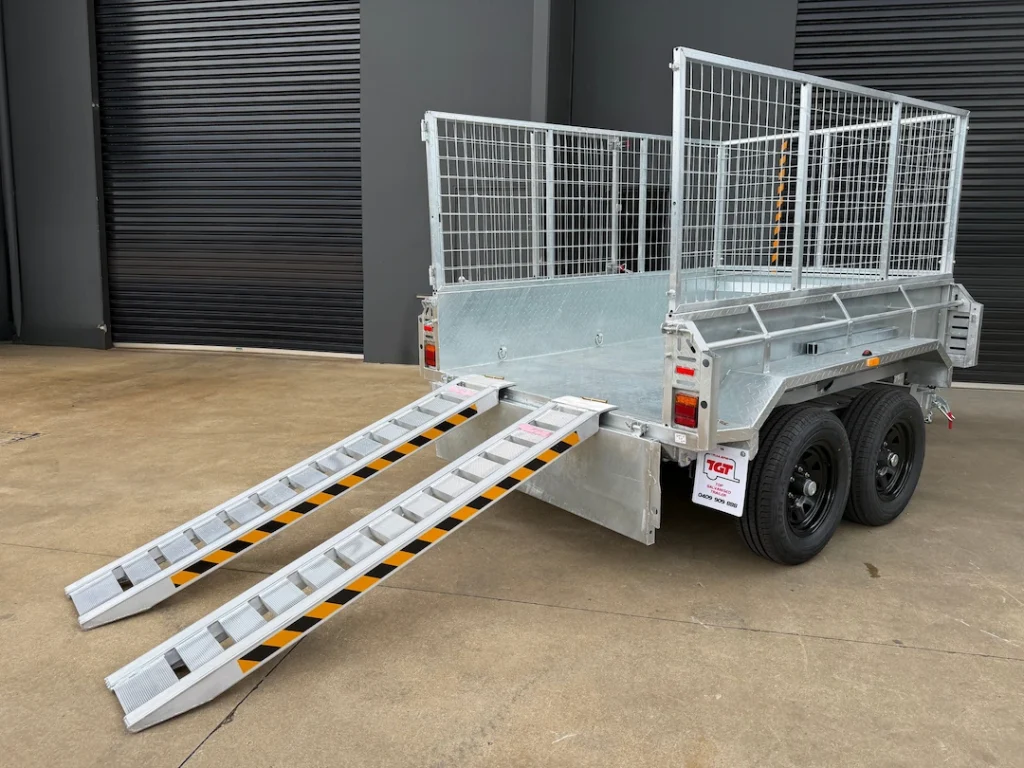

- Aluminium Loading Ramps (2.0T, 2000 x 350 x 82mm)
- Aluminium Loading Ramps (3.0T, 2000 x 350 x 92mm)
- Aluminium Ramp Holders (attached to mudguards)
- Upgrade to ATM-4200kg
- Elecbrakes Brake Controller
- Other Customisations
Videos
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.
