Description

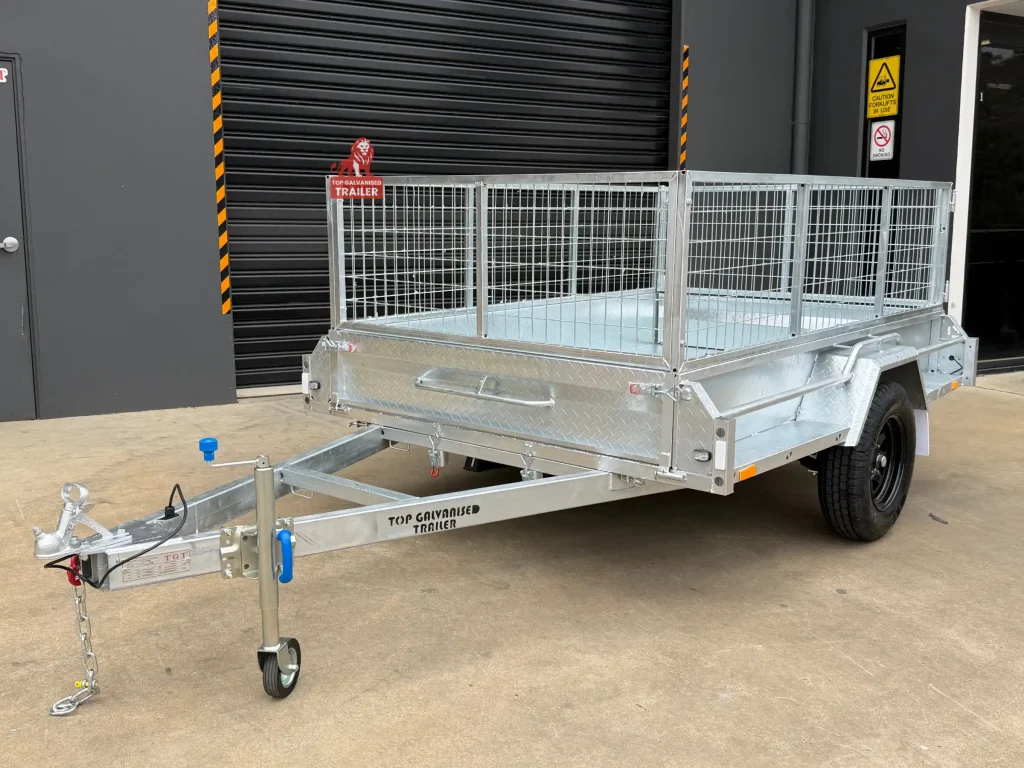

8×5 Trailer for Sale – Single Axle 750kg ATM

If you’re in the market for a reliable 8×5 trailer for sale, this model ticks all the boxes. Built tough for everyday use, this 8×5 single axle trailer is perfect for homeowners, tradies, and anyone needing extra load space. This trailer is a 8×5 tipper trailer, giving you the option to manually tilt the tray by simply undoing four lock-pin points on the drawbar. It’s a handy feature when unloading soil, tools, or general waste—saving you both time and effort. With exterior 8×5 trailer dimensions of 4.13m in length and 2.0m in width. This model is the largest single axle trailer that we offer. It’s ideal for jobs that require more room than other smaller single axle trailers, without stepping up to a tandem axle setup. Made from heavy duty steel and hot dip galvanised in molten zinc, this 8×5 trailer for sale is built to resist rust and harsh conditions. It’s designed to last and perform, even with regular use on rough roads or in bad weather. This 8×5 galvanised trailer comes with a 750kg ATM, making it a light-duty trailer that doesn’t require brakes. If you need a braked version, check out our heavy-duty 8×5 single axle trailer. We’ve also upgraded the suspension. Instead of slipper springs, we use eye to eye springs. These offer better ride comfort, increased stability, and less wear and tear on the chassis, for your new 8×5 trailer for sale. For added safety and durability, all the electrical wiring runs inside the chassis tubes. This protects the wires from water, dirt, and physical damage—helping avoid future maintenance issues. Looking for 8×5 trailers for sale in your area? This lightweight 8×5 single axle trailer is a practical choice for most residential and commercial users.

Order yours today!

Select Your Desired Optional Extras such as cage, canvas cover, toolbox, spare wheel and more!
5-Year Structural Warranty*
Low Rate Finance Options Available
Register Onsite & Go in 30 Minutes

Finally, if you have any questions or need assistance, please don’t hesitate to Contact Us.

Specifications

ATM: 750 kg
Tare: 360 kg
Loading Capacity: 390 kg
Exterior Length: 4.13 m
Exterior Width: 2.0 m
Internal Size: 2400 x 1530 x 300 mm

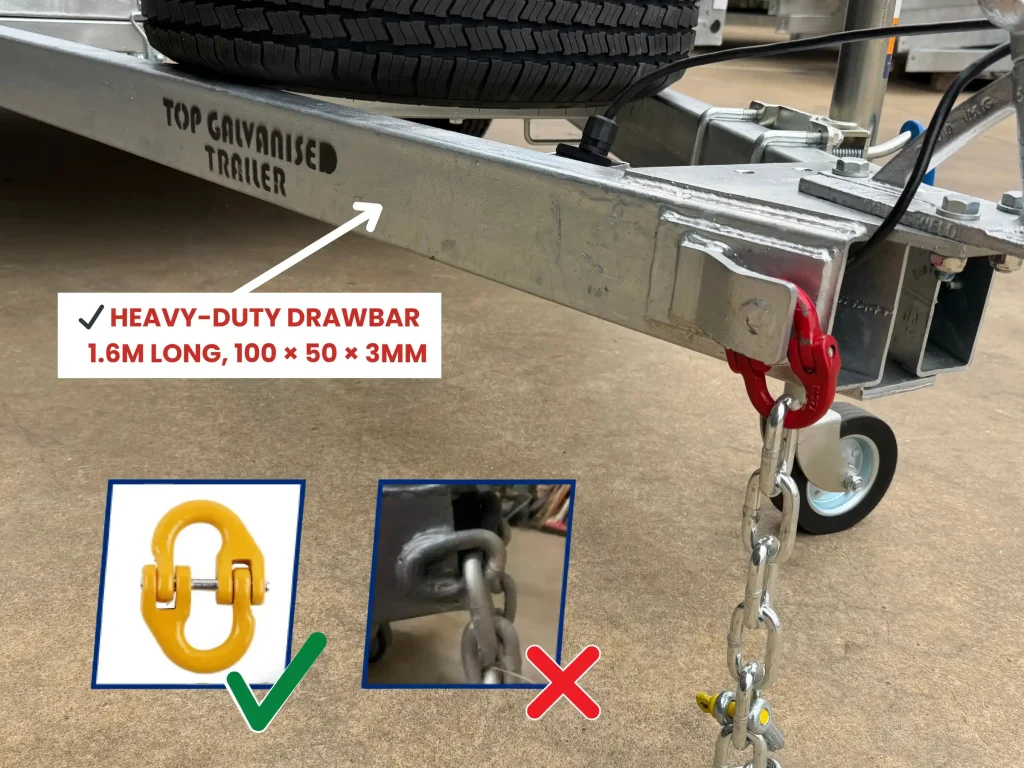

Drawbar: 1600 mm; 100 x 50 x 3mm RHS
Coupling: 50 mm Quick Release Coupling (ADR Standards)
Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Checker Plate: 2.5mm, Fully Welded Body & Chassis
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: 40 mm Round Solid Axle

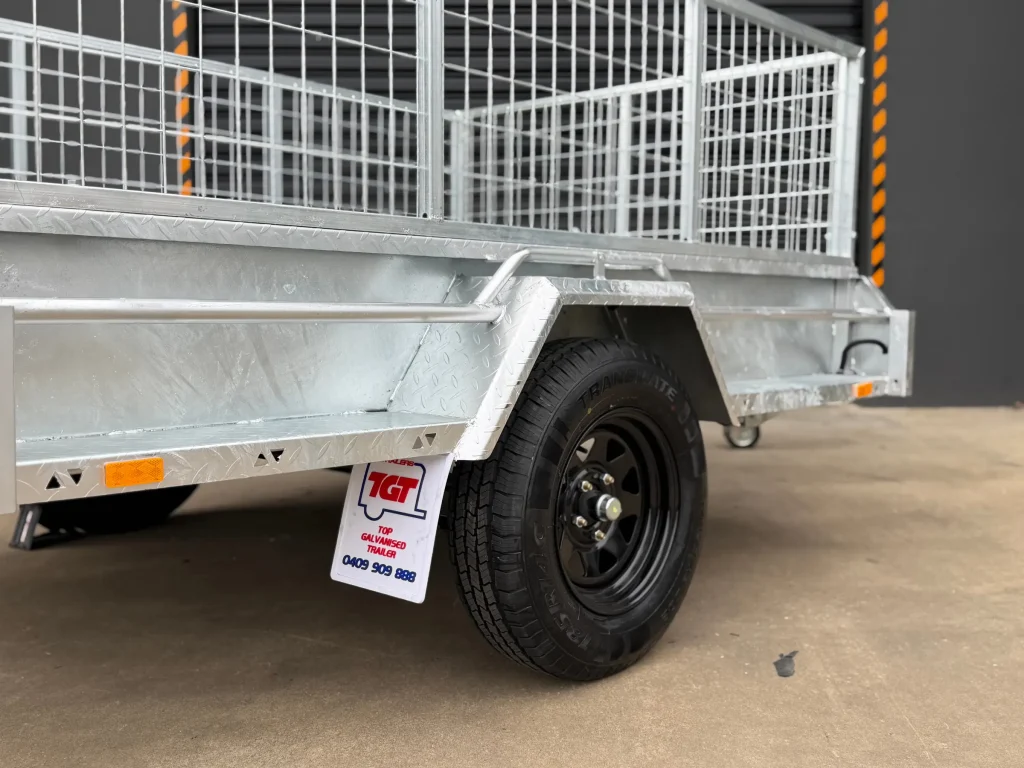

Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
Suspension: 7 Leaf Eye to Eye Springs (NOT Slipper Springs)
Jockey Wheel: 6” Swing Up
Manual Tipper: Tilting function with 4 lock-ping point on drawbar
Side Walls: 300 mm High Sides, One Piece Folded Up (Not Bolted)
Tie Down Rails
Ladder Racks Holders
Cage: 600 or 900mm (Sold Separately)
50×50mm SHS Horizontal Support Beams
40×40mm SHS Vertical Support Beam

Optional Extras

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Galvanised Cage 600/900mm
Canvas Cover
Ladder Racks (Pair)
Mesh Tailgate Ramps
Aluminium Ramps
Aluminium Toolbox
Mower Pad
Other Customisations

Videos

Warranty

5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
Used or Second-hand trailers and parts are not covered under this warranty.

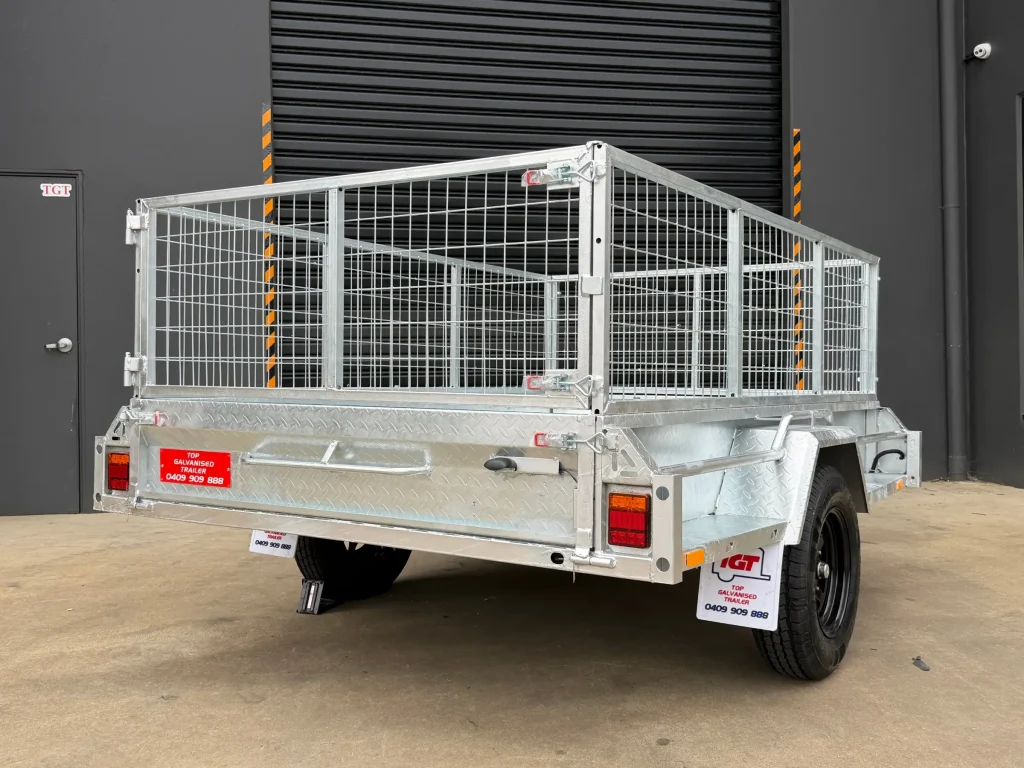

8×5 Single Axle Box Trailer Hot Dip Galvanised 750kg ATM

$2,300.00 ~~$2,550.00~~ $250.00 off

In Stock

Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.

5-Year Structural Warranty

Register & Go in 30 Minutes

Buy Now, Pay Later

Additional Options – Priced Separately:

Cage

Spare Wheel

Ramps

Canvas Cover

Ladder Racks

Toolbox

Registration

Product price:	$2,300.00
Total options:
Order total:

Request a Quote

Choose your payment option

Pay Deposit (30%)
Pay in Full

Pay a 30% deposit

Please note: For lead times or order questions, request a quote or call. Online orders may take up to 5 days to process.

Get a Quote

Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.

Categories: Single Axle Trailers

SKU: SABTM85
