Description

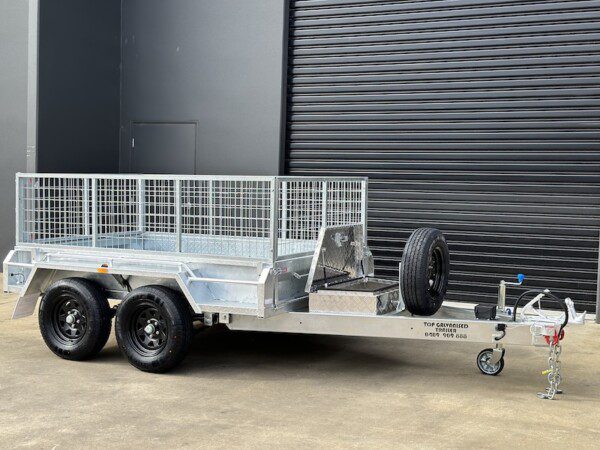

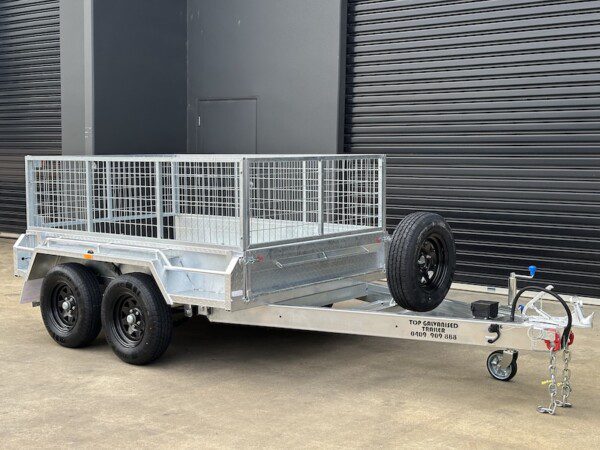

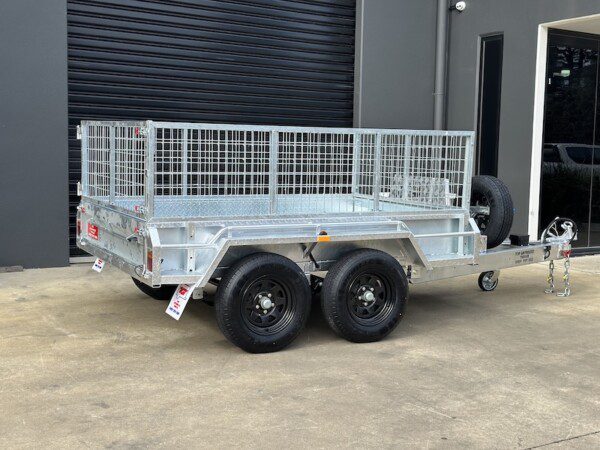

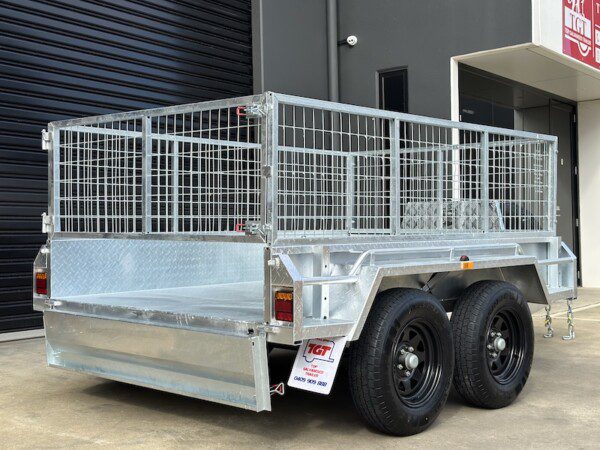

8×5 Galvanised Trailer – Heavy Duty 3200kg ATM
This 8×5 galvanised trailer for sale is built to handle serious loads while offering long-lasting protection against rust and wear. It’s ideal for tradies, farmers, and anyone needing a strong and galvanised trailer that’s ready for work.
This heavy duty 8×5 galvanised trailer comes with an increased loading capacity of 2540kg! Giving you the strength to load heavier loads safely.
Unlike standard models, this 8×5 gal trailer is built with a 3.2-tonne ATM rating—a step up from the typical 2-tonne trailers. It features a heavy duty chassis and drawbar with 5mm thickness steel, offering superior strength.
Importantly, this is a hot-dip galvanised trailer, meaning molten zinc coats both the inside and outside for complete protection. This process protects every part of this 8×5 trailer from rust, making it a great choice for Australia’s tough weather conditions.
8×5 Trailer with Electric Brakes Advantages:
- Easy Operation: Control the electric brakes through your vehicle’s brake controller—no need for manual input.
- Better Braking Power: Electric brakes may offer more stopping power for heavier trailers than manual brakes.
- Consistent Performance: Electric brakes provide consistent braking performance, regardless of the weight distribution in the trailer.
- Increased Safety: By offering more effective stopping force and reliable braking performance, electric brakes can increase the overall safety of towing a heavy trailer.
- Low Maintenance: Electric brakes are low-maintenance and require minimal upkeep compared to other types of brakes.
Specifications
- ATM: 3200kg
- Tare: 680kg (Exclude cage)
- Loading Capacity: 2520kg
- Exterior Length: 4.43m
- Exterior Width: 2.0m
- Internal Size: 2400 x 1530 x 300mm
- Drawbar: 1900mm; 150 x 50 x 5mm RHS
- Chassis: 70×50mm Reinforced Horizontal & Vertical RHS Support Beams
- Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle
- Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 10″ Electric Drum Brakes On Four Wheels with Parallel Bearings
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swing Up Heavy Duty
- Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
- Extended Step-up Platforms On Both Sides
- Tie Down Rails All Around
- Ladder Racks Holders
- Cage: 600 or 900mm (Sold Separately)
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised Cage 600/900mm
- Canvas Cover
- Ladder Racks (Pair)
- Mesh Tailgate Ramps
- Aluminium Loading Ramps
- Aluminium Toolbox
- Mowerpad
- Elecbrakes Brake Controller
- Other Customisations
Videos
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.
8×5 Tandem Trailer with Electric Brakes Hot Dip Galvanised Box Trailer 3200kg ATM
From
*Unless otherwise specified, cage and other accessories are sold separately. See pricing details below.
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later
Additional Options – Priced Separately:
Get a Quote
Categories: Tandem Trailers
SKU: TBT3285
