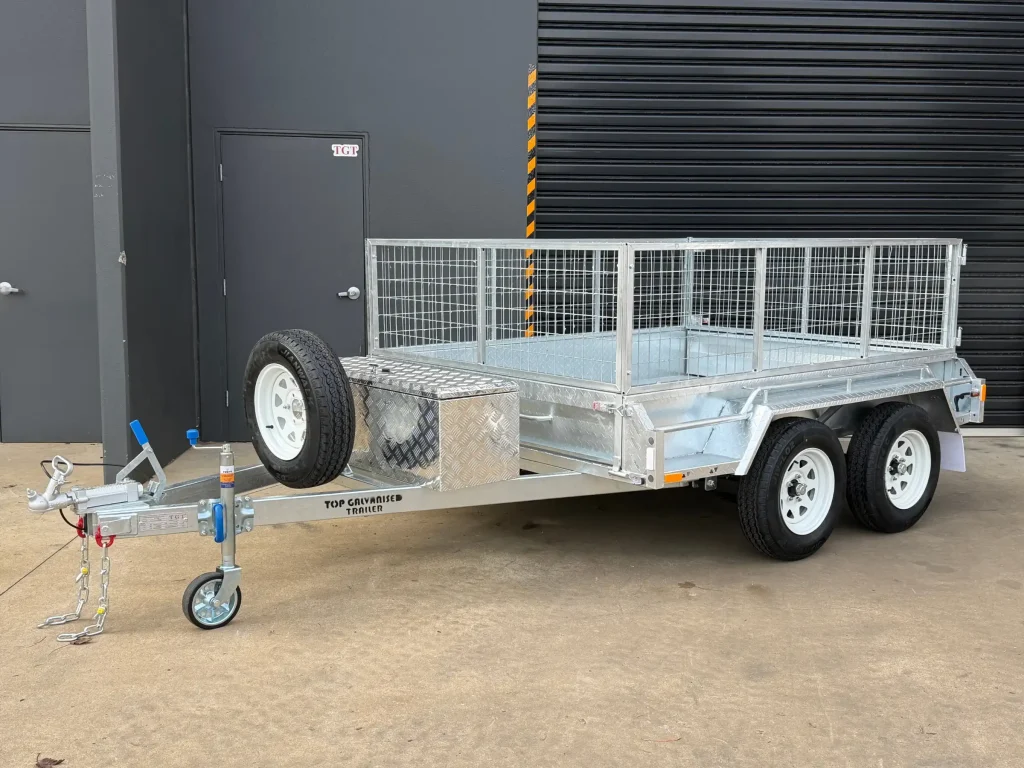

Our 8×6 Tandem Trailer comes with Dual Solid Round Axles, Mechanical Disc Brakes, Brand New Light Truck Tyres, and an Increased Loading Capacity of 1380kg.

Perfect for your agricultural, commercial, and recreational needs.

All of the electrical wirings have been passed interiorly through the chassis tubes, and therefore are not exposed.

Additionally, all of our trailers come with extra supports on the chassis, which makes our trailers exceptionally durable and safe.

  • 50mm×50mm Support Beams

  • ATM: 2000kg
  • Tare: 620kg (Exclude cage)
  • Loading Capacity: 1380kg
  • Exterior Length: 4.43m
  • Exterior Width: 2.32m
  • Internal Size: 2420 x 1830 x 300mm

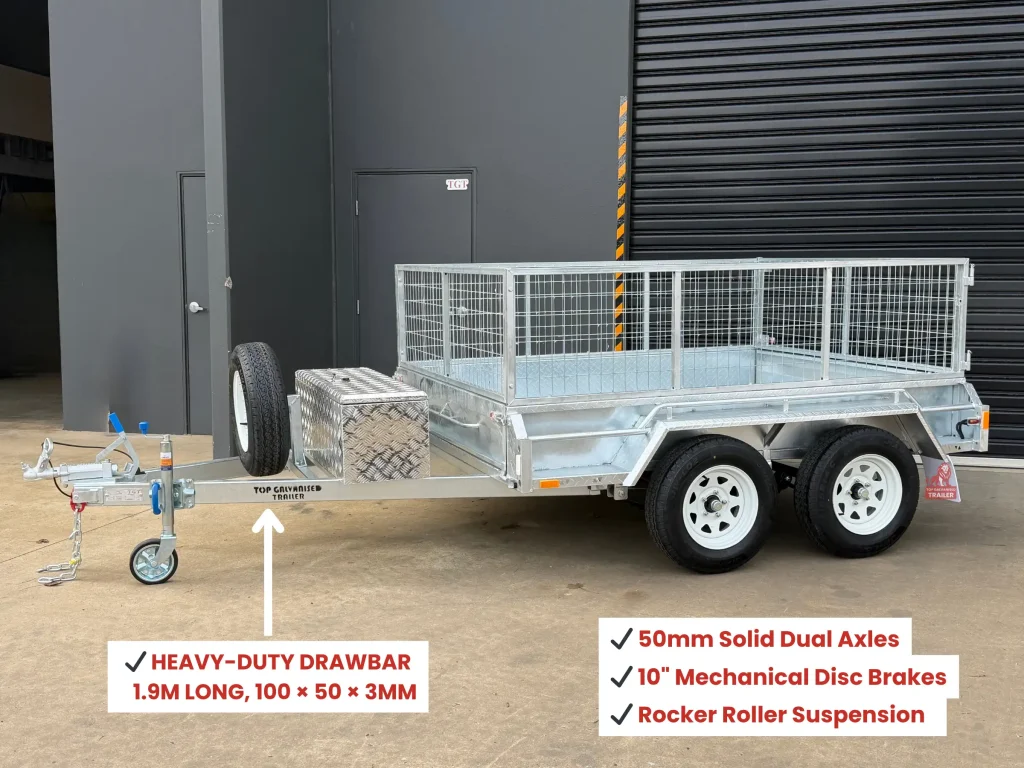

  • Drawbar: 1900mm; 100 x 50 x 3mm RHS
  • Coupling: 50mm Over-ride Braked Coupling (ADR Standards)

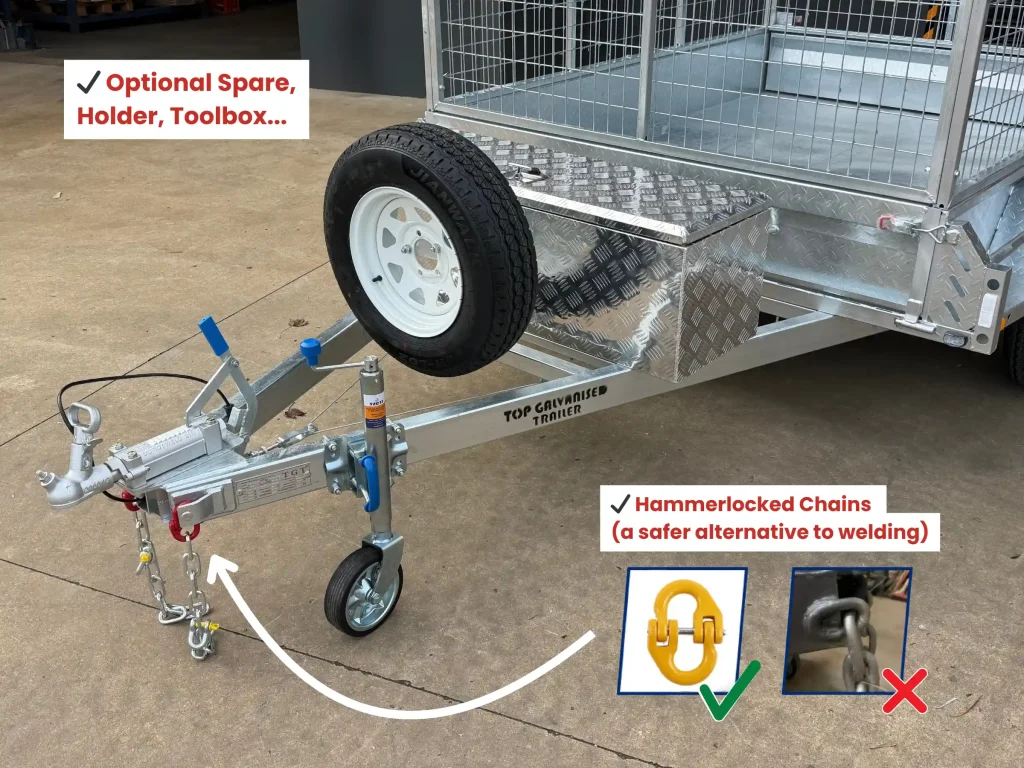

  • Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Checker Plate: 2.5mm, Fully Welded Body & Chassis
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: Dual Axle, 50mm Round Solid Axle
  • Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Light Truck Tyres
  • Suspension: 6 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
  • Brakes: 10″ Mechanical Disc Brake
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
  • Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
  • Extended Step-up Platforms On Both Sides
  • Tie Down Rails All Around
  • Ladder Racks Holders
  • Cage: 600 or 900mm (Sold Separately)
  • 50×50mm Reinforced Horizontal & Vertical SHS Support Beams

  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Galvanised Cage 600/900mm
  • Canvas Cover
  • Ladder Racks (Pair)
  • Mesh Tailgate Ramps
  • Aluminium Loading Ramps
  • Aluminium Toolbox
  • Mowerpad
  • Other Customisations

  • 5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.

  • 1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.

  • Used or Second-hand trailers and parts are not covered under this warranty.

8×6 Box Trailer Galvanised Tandem Axle 2000kg ATM

From

$3,820.00

5-Year Structural Warranty

Register & Go in 30 Minutes

Buy Now, Pay Later

CreditOne

Note: Images are for illustrative purposes only. Optional accessories such as cage and spare wheel are sold separately. Please refer to the form below for pricing details.

Product total
Options total
Grand total

Click the “Add to Cart” icon to request a formal quote or place an order with your selected optional items (subject to availability).
