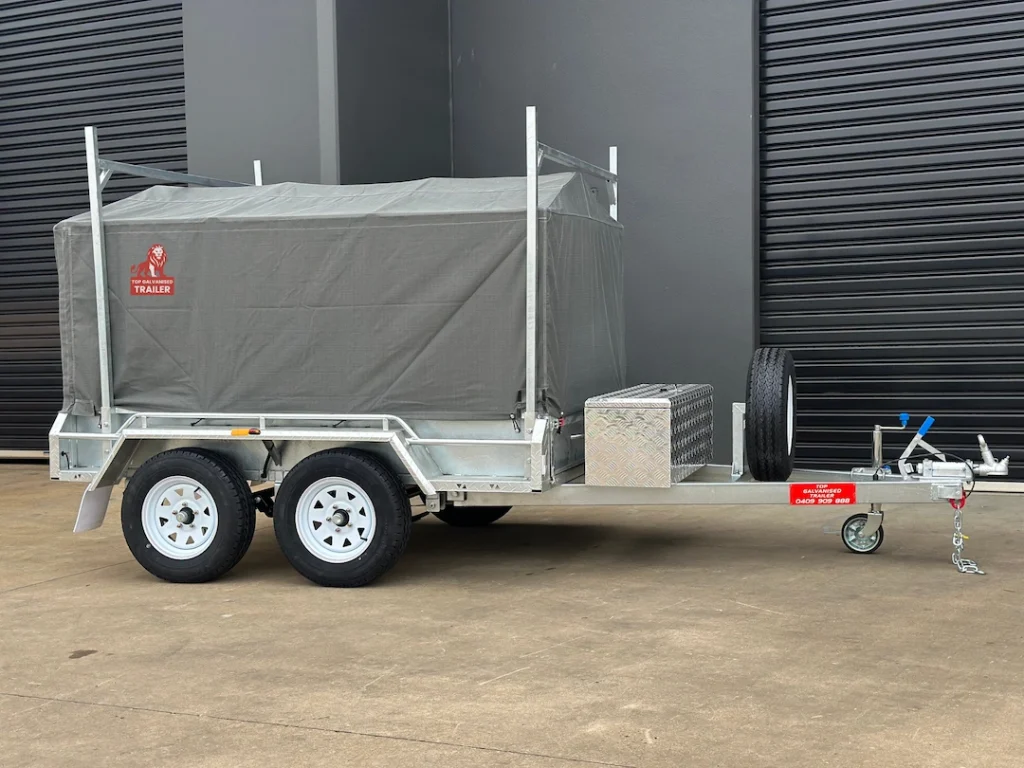

trailer with cover, ladder racks and toolbox

Description

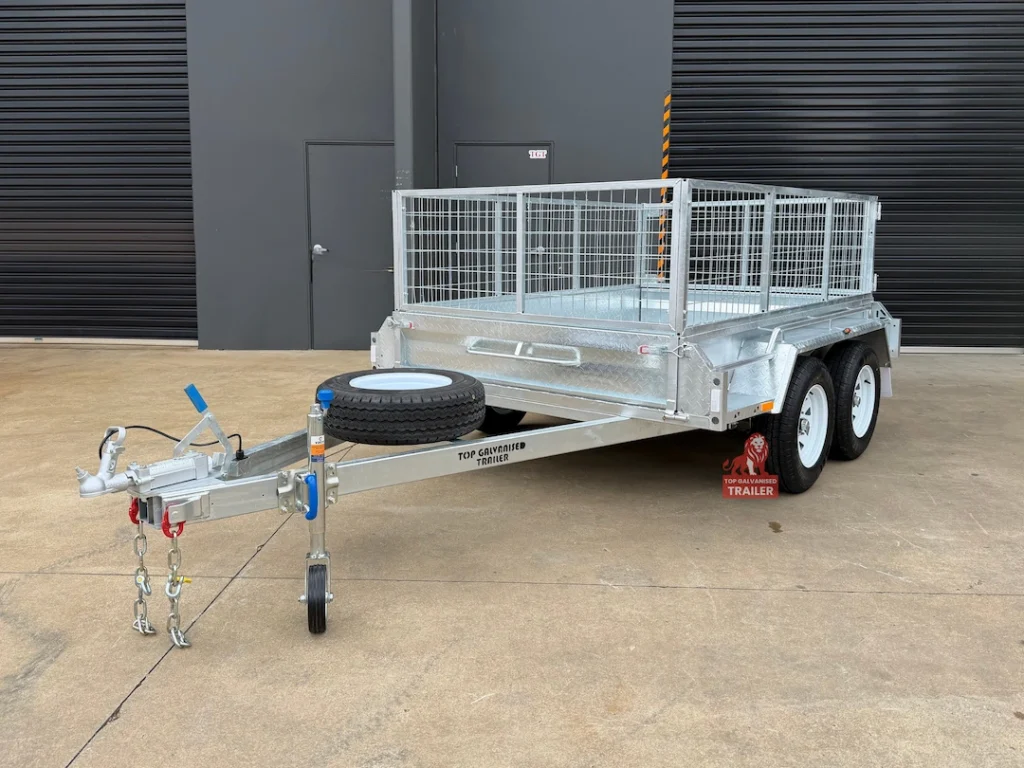

Galvanised 8×5 Tandem Trailer with 2000kg ATM

This 8×5 tandem trailer is one of the most popular trailer sizes in Australia. It’s the perfect balance of size and capacity! Large enough to carry bulky items, yet compact and light enough for most vehicles to tow easily. Moreover, its cost-effectiveness makes it ideal for both personal and commercial use. Designed with strength in mind, this 8×5 tandem trailer is built with dual axles, mechanical disc brakes and rocker roller suspension. As a result, it offers better load distribution, improved braking control, and added safety on the road. Whether you’re towing mowers, building materials, or bulky gear, it gets the job done with confidence. Additionally, our 8×5 tandem trailer for sale is fully hot dip galvanised in molten zinc, offering superior protection against rust and minimal maintenance. No matter the weather or terrain, this tandem 8×5 trailer is ready to handle Melbourne’s rainy and humid conditions. Another standout feature is the 1.9m drawbar, which is longer than most tandem trailers on the market. This extended drawbar improves towing stability at speed and makes reversing much easier—especially useful in tight spots or worksites. With a bed size of 8x5ft or 2.40 x 1.53 meters, this 8×5 dual axle trailer gives you plenty of space without becoming too large or heavy to manage. It’s ideal for transporting everything from machinery and tools to landscaping waste and pallets.

Benefits of 8×5 Dual Axle Over Single Axle Trailers:

Increased Load Capacity: Tandem trailers can carry heavier loads.
Improved Stability: They offer better stability and less sway.
Better Weight Distribution: Reduces stress on each axle and tyre.
Enhanced Safety: In case of a tyre failure, the other tyres can support the load.
Smoother Ride: Generally provides a smoother towing experience.

Need the same 8×5 trailer size but with a single axle instead? Check out our 8×5 Single Axle Trailers. Finally, if you have any questions or need a detailed price, call/text us directly or ask for a FREE Quote!

Specifications

ATM: 2000kg
Tare: 560kg (Exclude cage)
Loading Capacity: 1440kg
Exterior Length: 4.43m
Exterior Width: 2.0m
Internal Size: 2400 x 1530 x 300mm

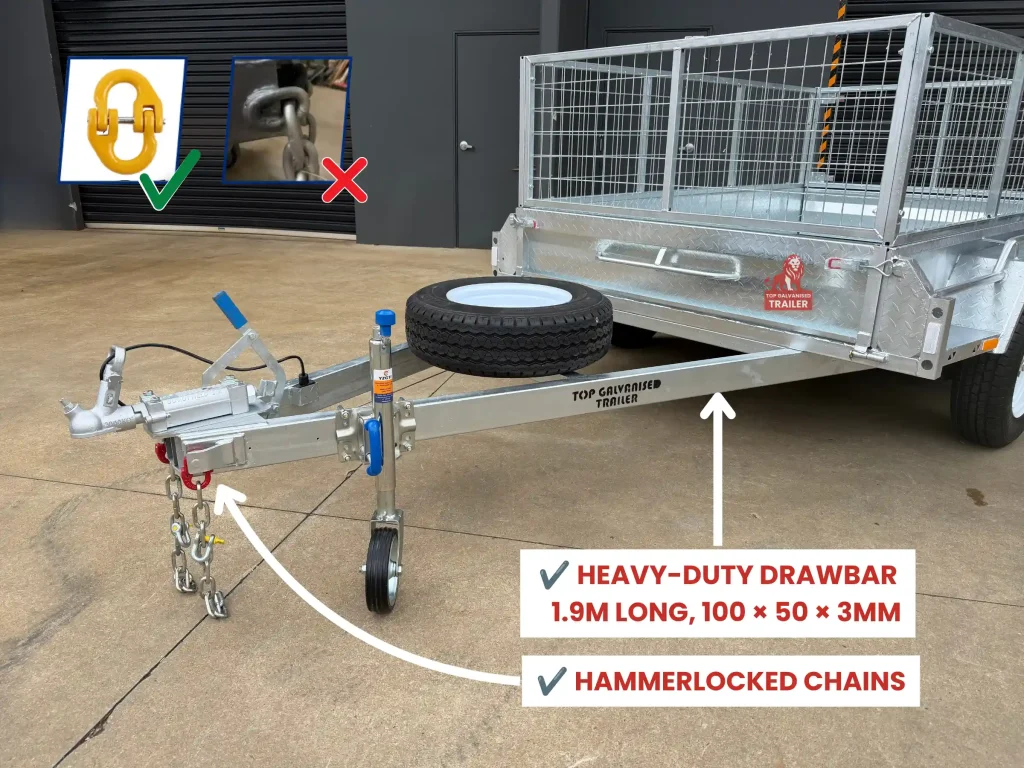

Drawbar: 1900mm; 100 x 50 x 3mm RHS
Coupling: 50mm Over-ride Braked Coupling (ADR Standards)
Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Checker Plate: 2.5mm, Fully Welded Body & Chassis
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights

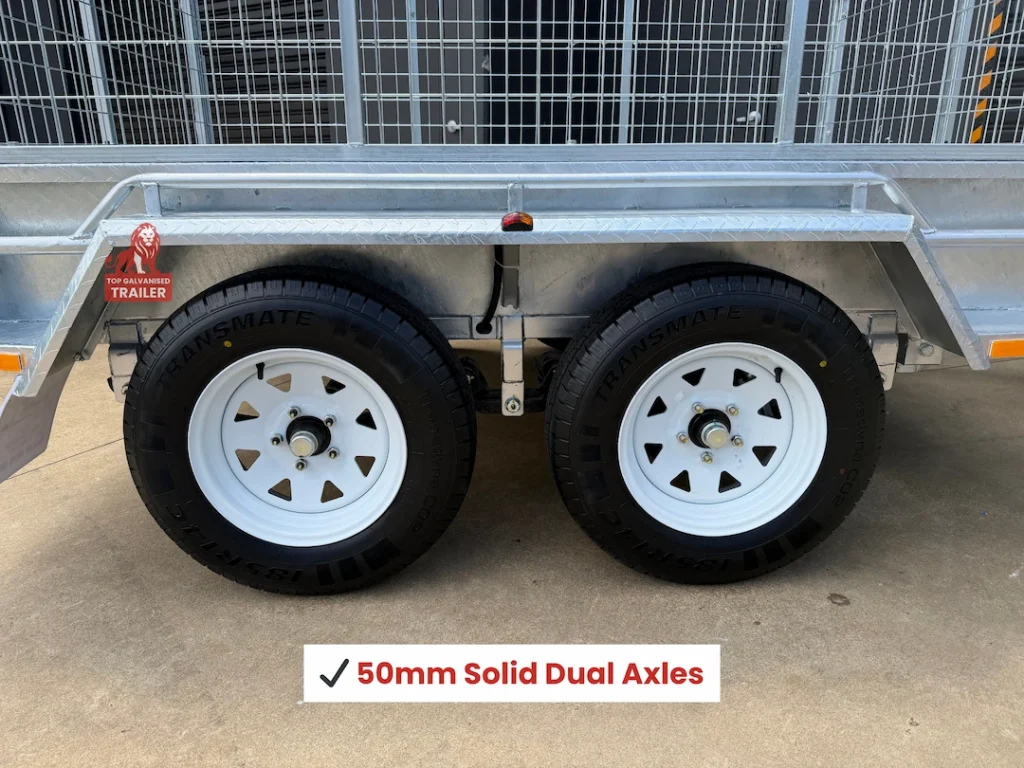

Axle: Dual Axle, 50mm Round Solid Axle

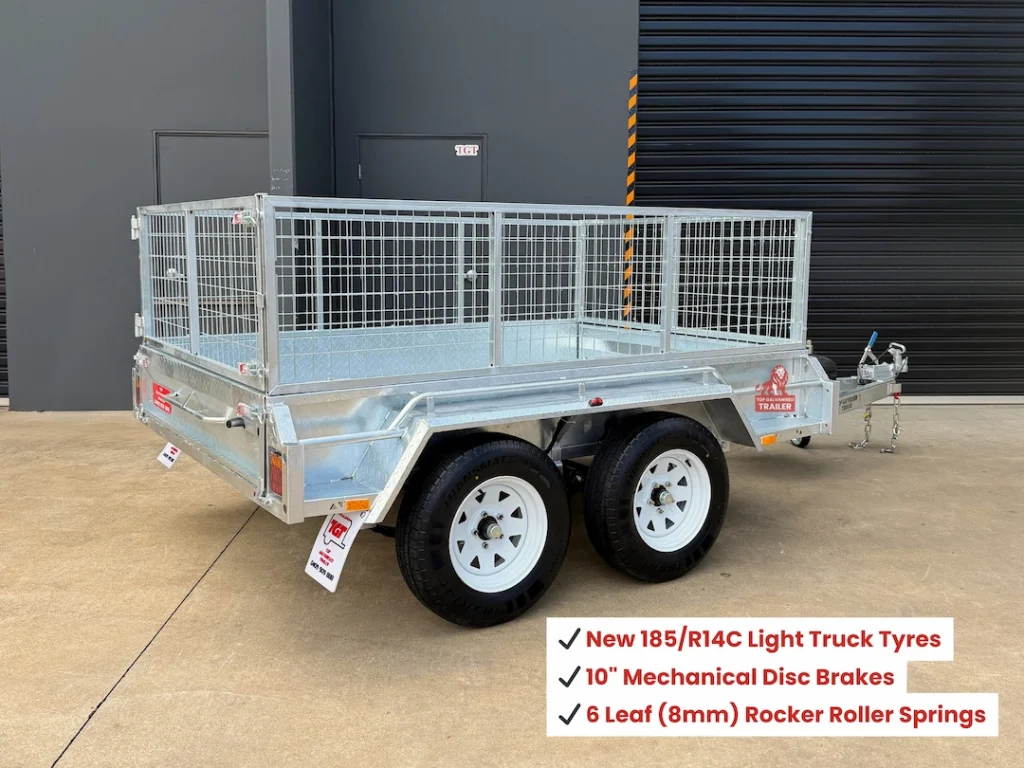

Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
Suspension: 6 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
Brakes: 10″ Mechanical Disc Brake
Jockey Wheel: 8” Swing Up Heavy Duty
Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
Extended Step-up Platforms On Both Sides
Tie Down Rails All Around
Ladder Racks Holders
Cage: 600 or 900mm (Sold Separately)
50×50mm Reinforced Horizontal & Vertical SHS Support Beams

Optional Extras

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Galvanised Cage 600/900mm
Canvas Cover
Ladder Racks (Pair)
Mesh Tailgate Ramps
Aluminium Loading Ramps
Aluminium Toolbox
Mowerpad
Other Customisations

Videos

Warranty

5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
Used or Second-hand trailers and parts are not covered under this warranty.

8×5 Tandem Trailer Hot Dip Galvanised Box Trailer 2000kg ATM
