Description
10×5 Tandem Trailer with Electric Brakes 3200kg ATM
If you need a 10×5 tandem trailer that can handle heavy loads without compromise, this is built for it. Designed for tradies, builders, and commercial businesses, it delivers strength, safety, and long-term value in one package.
The first thing you’ll notice is its extreme duty drawbar (150 x 50 x 5mm). It gives you outstanding strength with higher loading capacity than typical tandem trailers.
Additionally, this is a true hot dip galvanised trailer, fully coated in zinc inside and out. No rust, no constant repainting, and no headaches down the track. Just a heavy duty trailer that keeps working year after year, even in unstable Australian conditions.
What really sets this 10×5 trailer with electric brakes apart is stopping power. Electric brakes on all wheels mean higher load capacity and safer towing. When you’re carrying up to 3200kg ATM, that extra control makes a real difference.
Also, add in rocker roller suspension, and the ride becomes smoother and more balanced. It reduces bounce, spreads the load evenly, and protects both your trailer and your cargo. It’s the kind of upgrade you feel straight away on the road.
This isn’t just another 10×5 tandem trailer for sale. From its fully welded chassis to the Hammerlock shackle chains, every detail is designed for durability and safety.
Why tradies choose this trailer:
- 5 Year Structural Warranty for peace of mind
- RVSA certified and ADR compliant
- Australian assembled with premium components
- Custom options available to suit your work
Specifications
- ATM: 3200kg
- Tare: 720kg (Exclude cage)
- Loading Capacity: 2480kg
- Exterior Length: 5.05m
- Exterior Width: 2.02m
- Internal Size: 3010 x 1530 x 300mm
- Drawbar: 1600mm; 150 x 50 x 5mm RHS

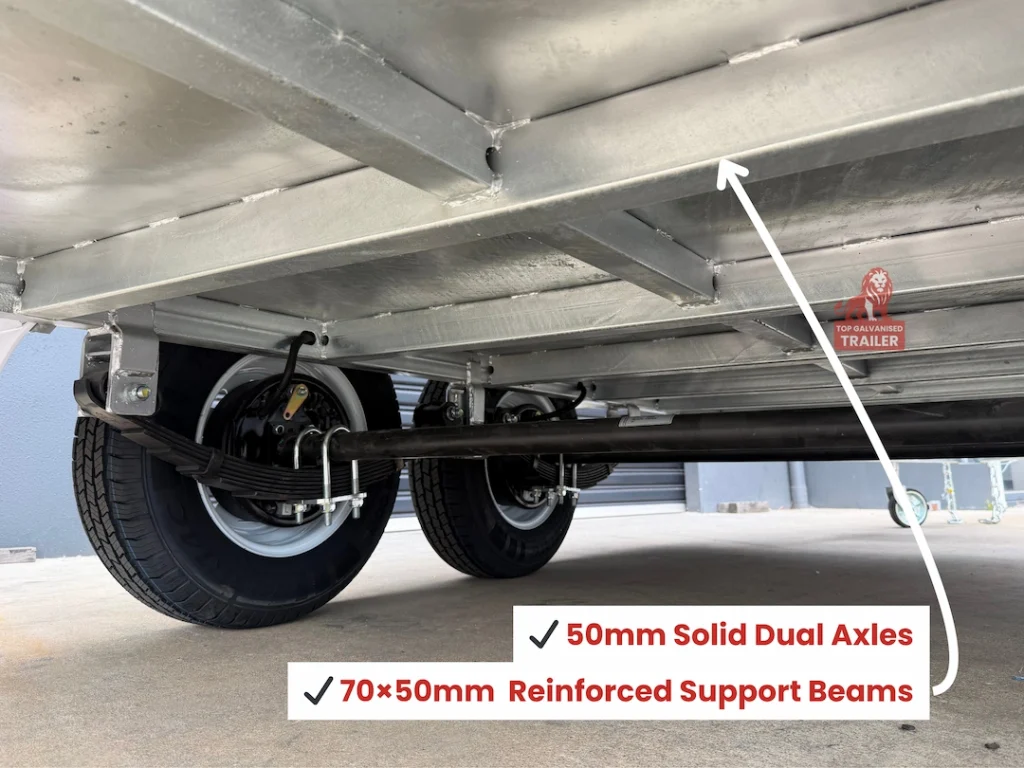

- Chassis: 70×50mm Reinforced Horizontal & Vertical RHS Support Beams
- Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
- Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Solid Axle
- Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
- Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 10″ Electric Drum Brakes On Four Wheels with Parallel Bearings
- Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
- Jockey Wheel: 8” Swing Up Heavy Duty
- Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
- Extended Step-up Platforms On Both Sides
- Tie Down Rails All Around
- Ladder Racks Holders
- Cage: 600 or 900mm (Sold Separately)
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Galvanised Cage 600/900mm
- Canvas Cover
- Ladder Racks (Pair)
- Mesh Tailgate Ramps
- Aluminium Loading Ramps
- Aluminium Toolbox
- Mowerpad
- Elecbrakes Brake Controller
- Other Customisations
Videos
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.
