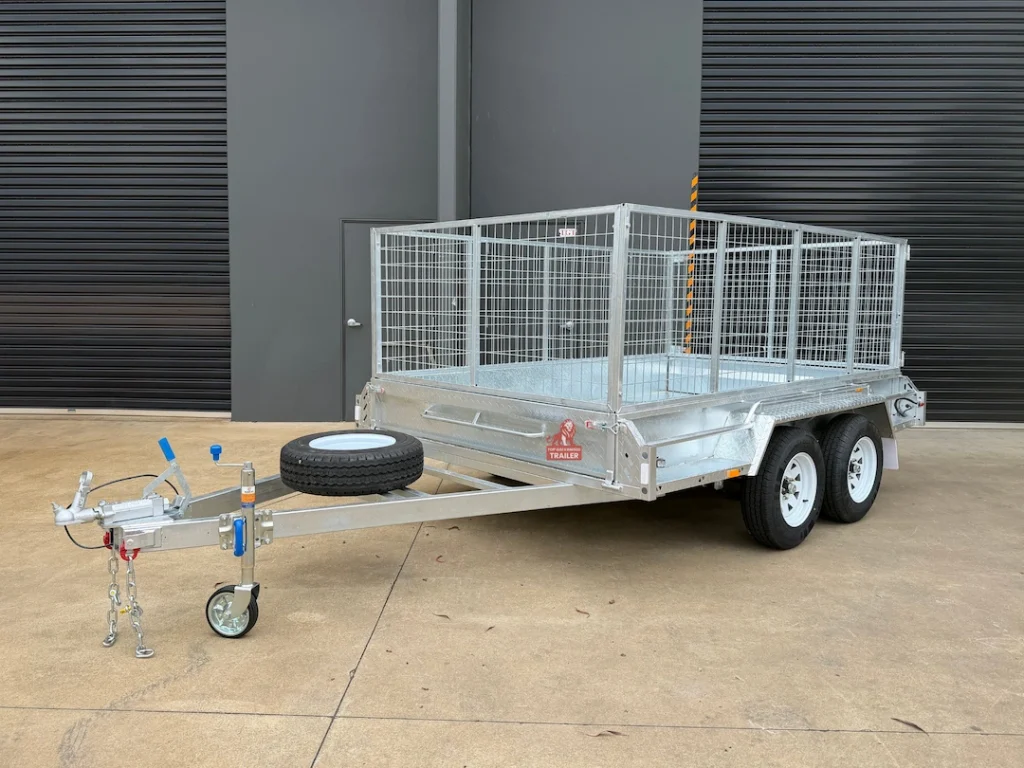

10x6 trailer with cover, ladder racks & toolbox

Description

10×6 Tandem Trailer Hot Dip Galvanised Box Trailer 2000kg ATM

Need more room than a 5ft wide trailer? This 10×6 tandem trailer hits the sweet spot—extra width, strong build, and easy towing for everyday work.

Built for tradies who don’t have time for maintenance, this is a true hot dip galvanised trailer. It’s fully coated in zinc, inside and out, so rust simply isn’t an issue. No repainting. No patch jobs. Just a clean, tough finish that keeps performing for years.

That extra 6-foot width makes a real difference on-site. You can load pallets, tools, or equipment with less hassle and better balance. Pair that with a 1.9m long drawbar (100 x 50 x 3mm), and reversing becomes noticeably easier—especially in tight driveways or busy job sites.

On the road, stability matters. The rocker roller suspension gives you a smoother, more controlled tow compared to standard slipper springs. It spreads weight evenly, reduces bounce, and protects your load. Whether it’s a full day of materials or bulky gear, it feels solid behind your car.

Every detail is built with purpose. A fully welded chassis with double welds adds strength where it counts, while Hammerlock shackle chains provide a safer, more secure connection than basic welded chains. It’s the kind of build quality you notice over time—less wear, fewer issues, and more confidence.

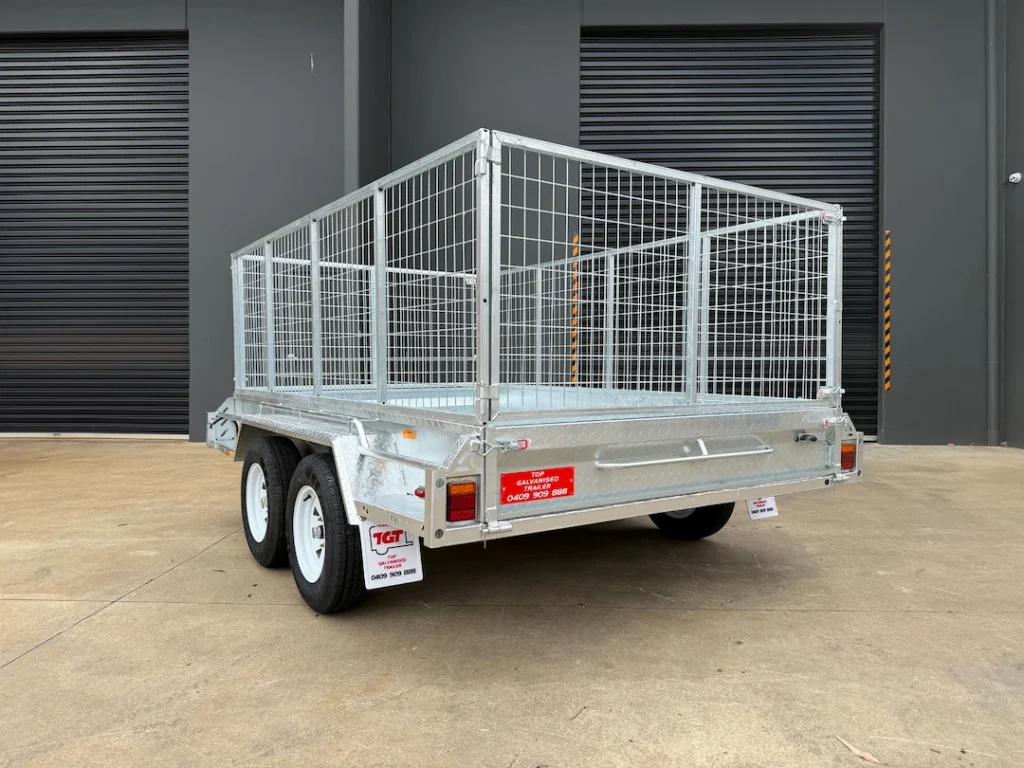

This 10×6 dual axle trailer is also ready to adapt. Need more height? You can select optional 600mm or 900mm cage for trailer, turning it into a practical 10×6 cage trailer for green waste, tools, or general transport.

Why it works for you:

5 Year Structural Warranty for peace of mind
RVSA certified and ADR compliant
Australian assembled with premium components
Custom options available to suit your work

We supply 10×6 tandem trailers in Melbourne and deliver interstate to NSW, QLD, SA, TAS & ACT. We also offer heavy duty version: 10×6 trailer with electric brakes 3200kg ATM, with higher loading capacity. Finally, if you have any questions or need a detailed price, call/text us directly or ask for a FREE Quote!

Specifications

ATM: 2000kg
Tare: 680kg (Exclude cage)
Loading Capacity: 1320kg
Exterior Length: 5.05m
Exterior Width: 2.29m
Internal Size: 3010 x 1830 x 300mm
Drawbar: 1900mm; 100 x 50 x 3mm RHS
Coupling: 50mm Over-ride Braked Coupling (ADR Standards)
Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Checker Plate: 2.5mm, Fully Welded Body & Chassis
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: Dual Axle, 50mm Round Solid Axle
Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
Suspension: 6 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
Brakes: 10″ Mechanical Disc Brake
Jockey Wheel: 8” Swing Up Heavy Duty
Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
Extended Step-up Platforms On Both Sides
Tie Down Rails All Around
Ladder Racks Holders
Cage: 600 or 900mm (Sold Separately)
50×50mm Reinforced Horizontal & Vertical SHS Support Beams

Optional Extras

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Galvanised Cage 600/900mm
Canvas Cover
Ladder Racks (Pair)
Mesh Tailgate Ramps
Aluminium Loading Ramps
Aluminium Toolbox
Mowerpad
Other Customisations

Videos

Warranty

5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
Used or Second-hand trailers and parts are not covered under this warranty.

10×6 Tandem Trailer Hot Dip Galvanised Box Trailer 2000kg ATM

$3,850.00 ~~$4,100.00~~ $250.00 off

In Stock

Please note: Cage and all other accessories are calculated separately. Refer to the pricing details below.

5-Year Structural Warranty

Register & Go in 30 Minutes

Buy Now, Pay Later

Additional Options – Priced Separately:

Cage

Spare Wheel

Ramps

Canvas Cover

Ladder Racks

Toolbox

Registration

Product price:	$3,850.00
Total options:
Order total:

Request a Quote

Choose your payment option

Pay Deposit (30%)
Pay in Full

Pay a 30% deposit

Please note: For lead times or order questions, request a quote or call. Online orders may take up to 5 days to process.

Get a Quote

Not sure what to order or need help from our sales team? Submit a quote request, and we’ll get back to you with personalised support.

Categories: Tandem Trailers

SKU: TBTS106

Description

10×6 Tandem Trailer Hot Dip Galvanised Box Trailer 2000kg ATM

Need more room than a 5ft wide trailer? This 10×6 tandem trailer hits the sweet spot—extra width, strong build, and easy towing for everyday work.

Why it works for you:

5 Year Structural Warranty for peace of mind
RVSA certified and ADR compliant
Australian assembled with premium components
Custom options available to suit your work

Specifications

ATM: 2000kg
Tare: 680kg (Exclude cage)
Loading Capacity: 1320kg
Exterior Length: 5.05m
Exterior Width: 2.29m
Internal Size: 3010 x 1830 x 300mm
Drawbar: 1900mm; 100 x 50 x 3mm RHS
Coupling: 50mm Over-ride Braked Coupling (ADR Standards)
Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
Surface Finish: Hot Dipped Galvanised (Rust Free)
Checker Plate: 2.5mm, Fully Welded Body & Chassis
Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
Axle: Dual Axle, 50mm Round Solid Axle
Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
Suspension: 6 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
Brakes: 10″ Mechanical Disc Brake
Jockey Wheel: 8” Swing Up Heavy Duty
Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
Extended Step-up Platforms On Both Sides
Tie Down Rails All Around
Ladder Racks Holders
Cage: 600 or 900mm (Sold Separately)
50×50mm Reinforced Horizontal & Vertical SHS Support Beams

Optional Extras

Spare Wheel
Spare Wheel Holder
Onsite VIC Registration
Galvanised Cage 600/900mm
Canvas Cover
Ladder Racks (Pair)
Mesh Tailgate Ramps
Aluminium Loading Ramps
Aluminium Toolbox
Mowerpad
Other Customisations

Videos

Warranty

5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
Used or Second-hand trailers and parts are not covered under this warranty.
