Description

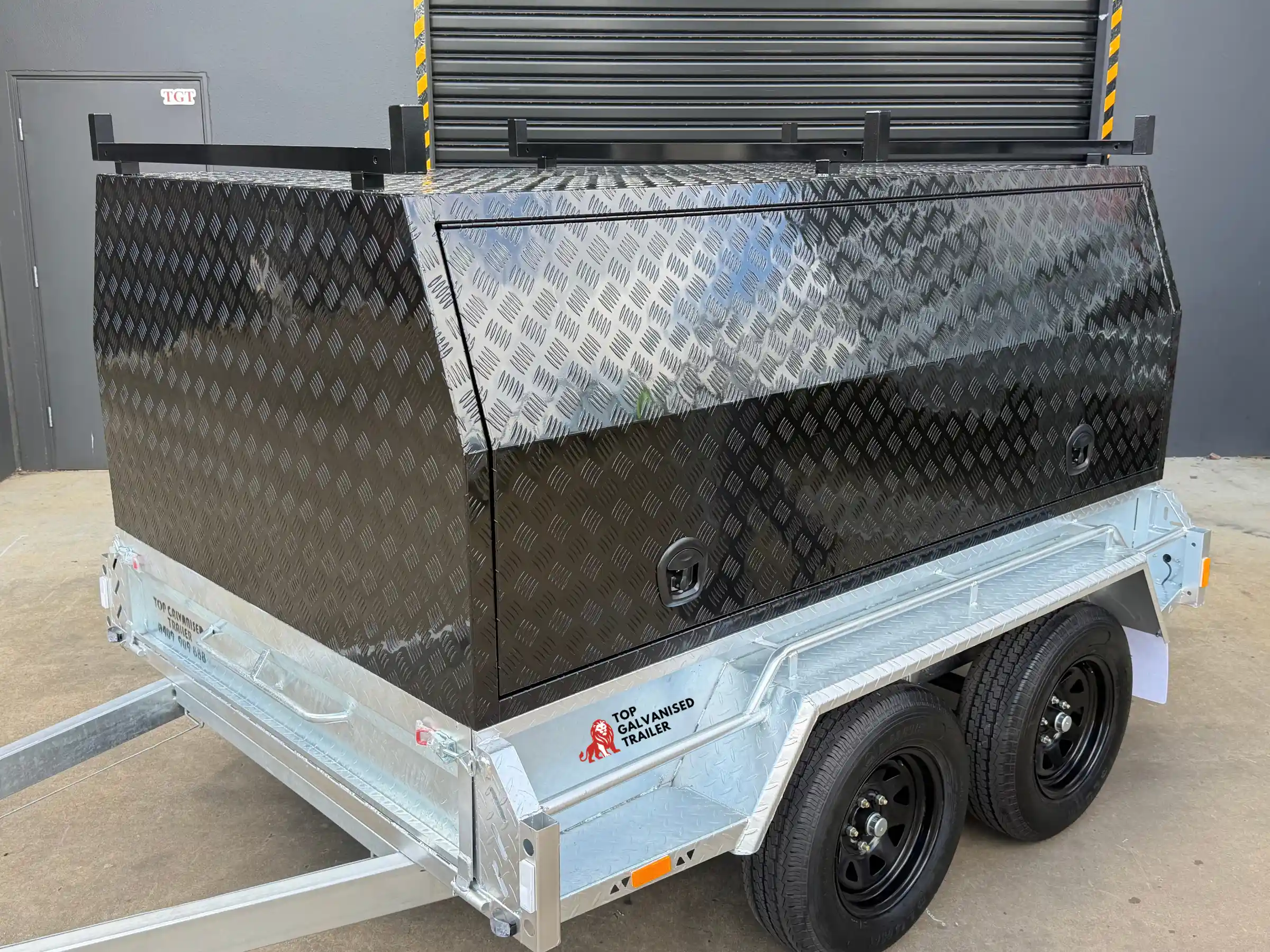

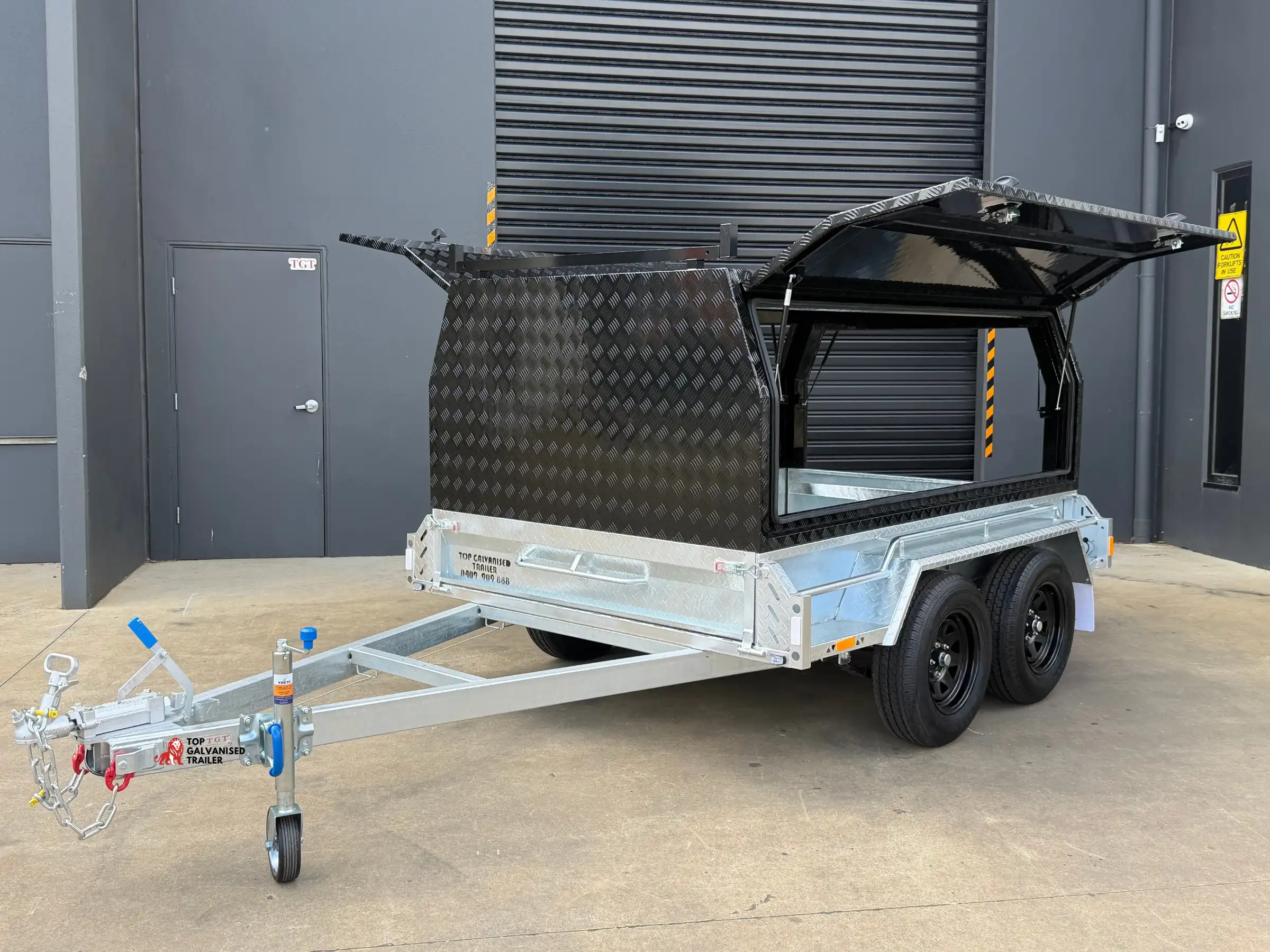

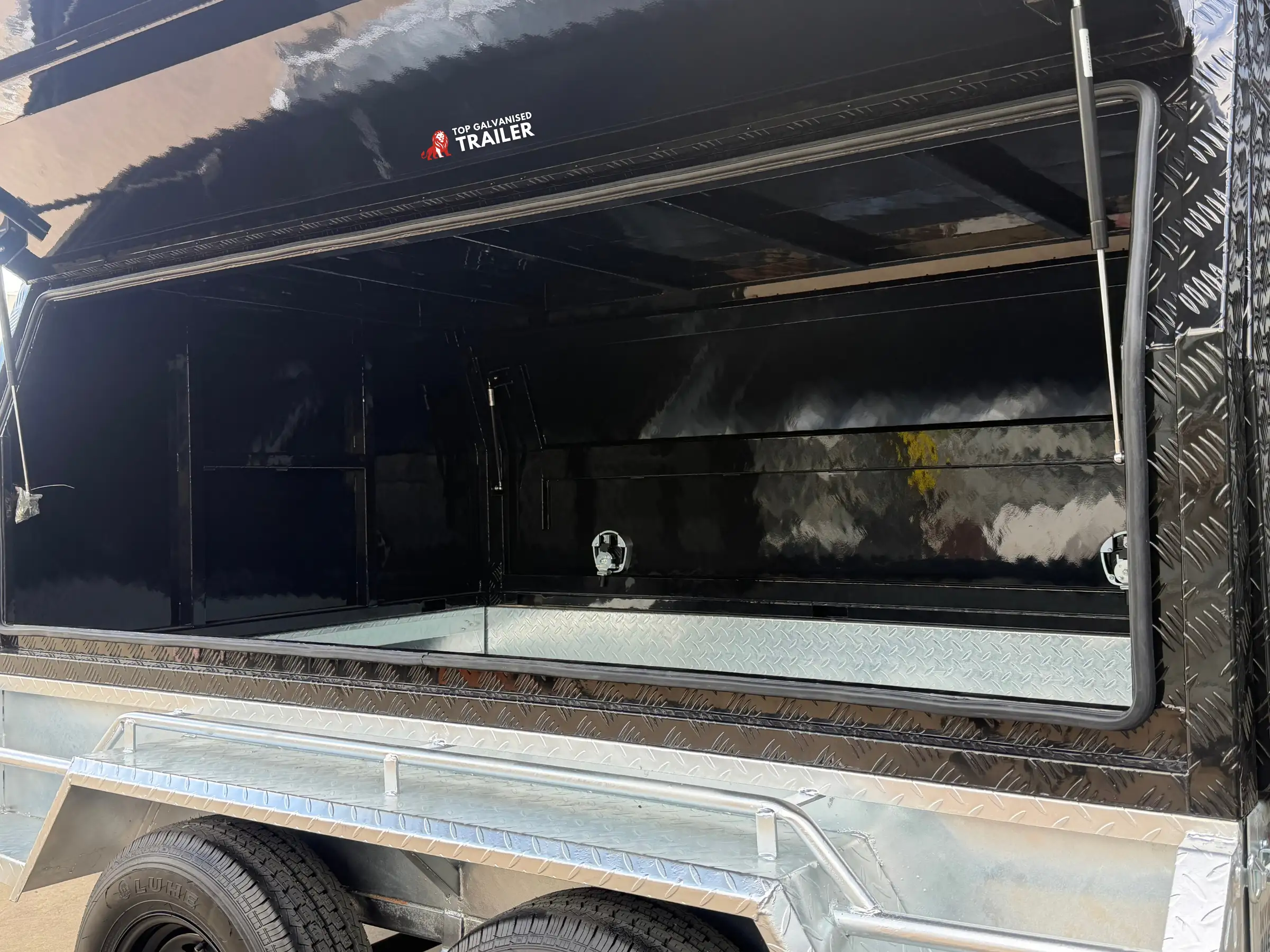

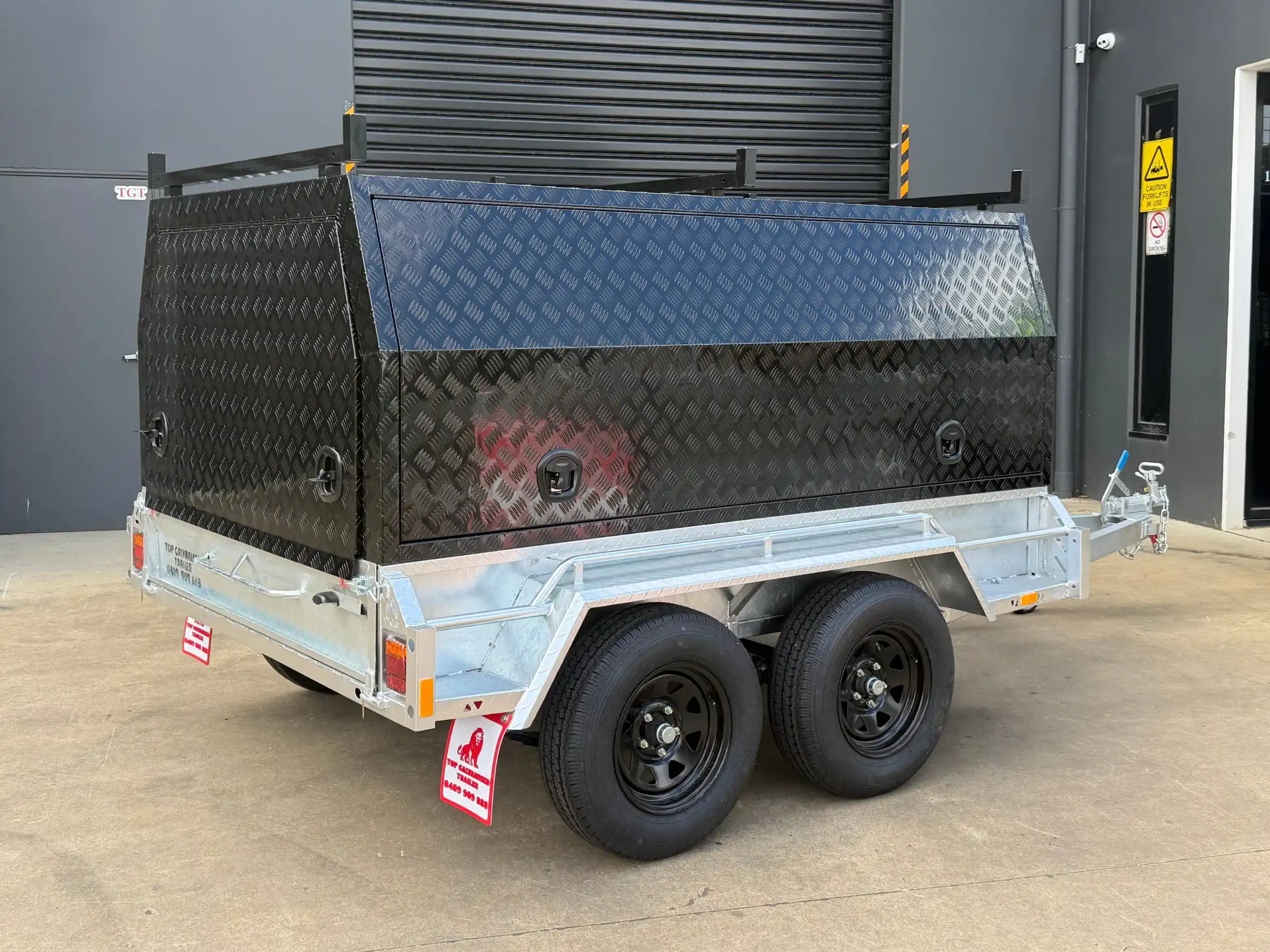

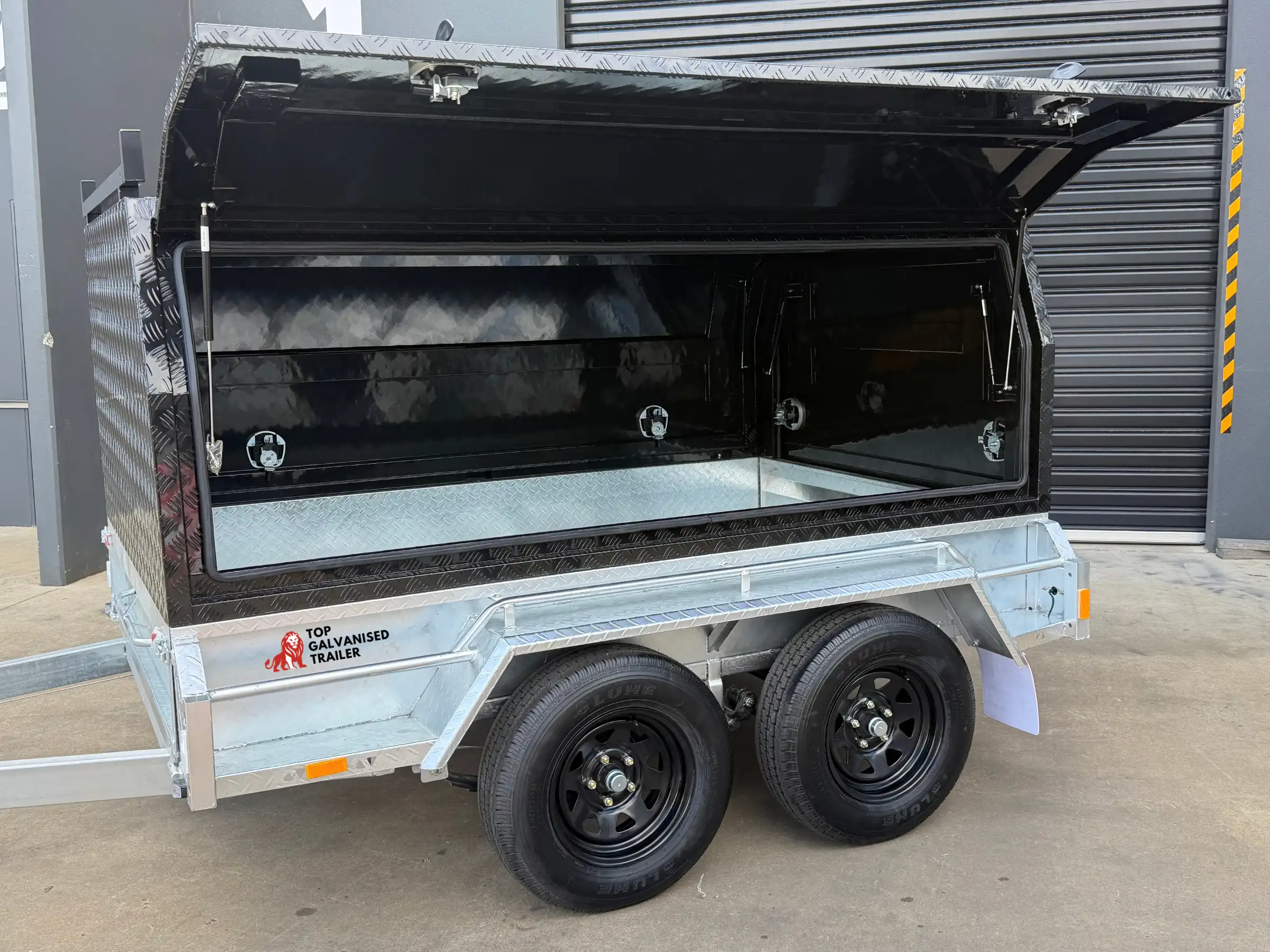

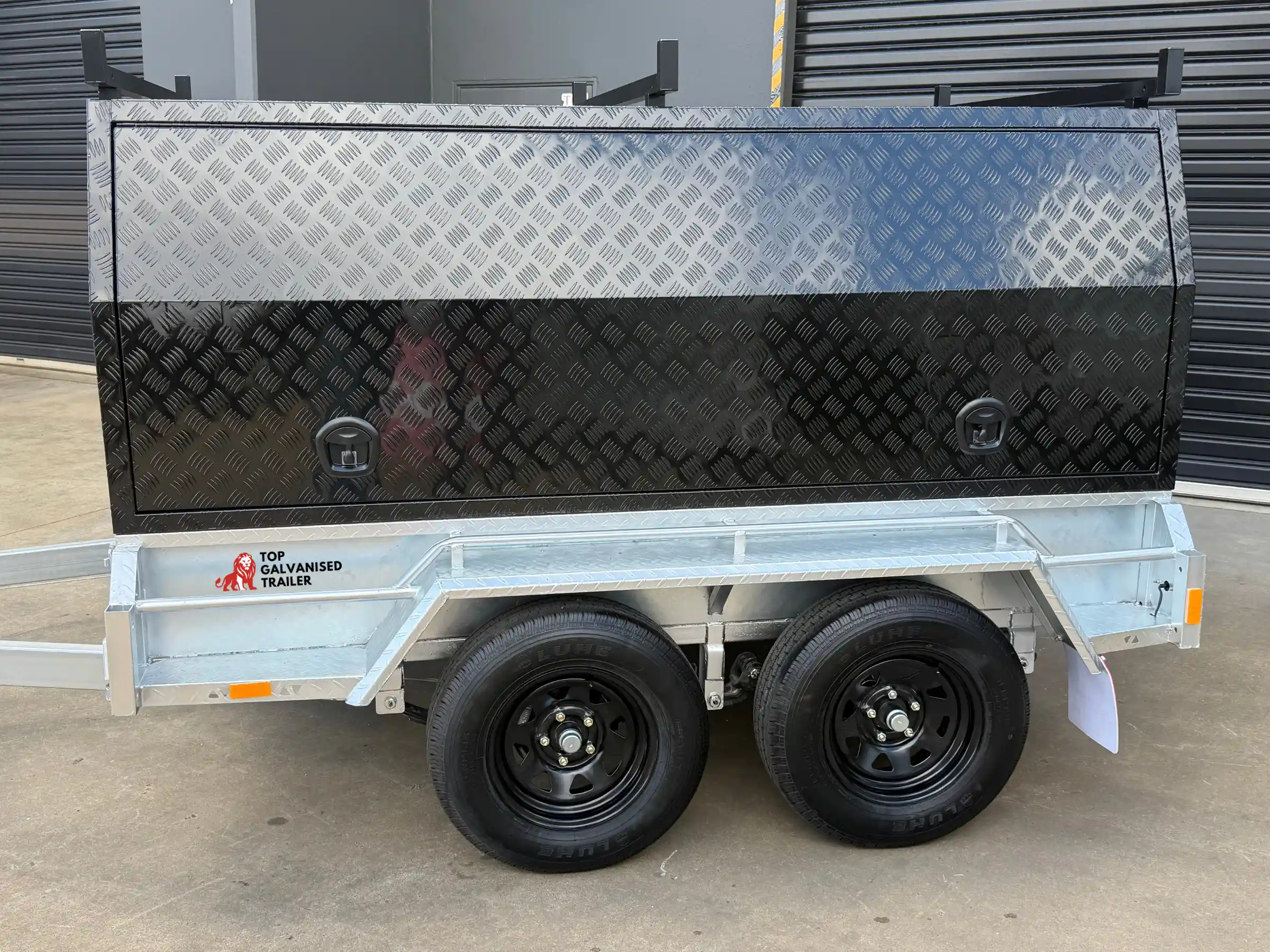

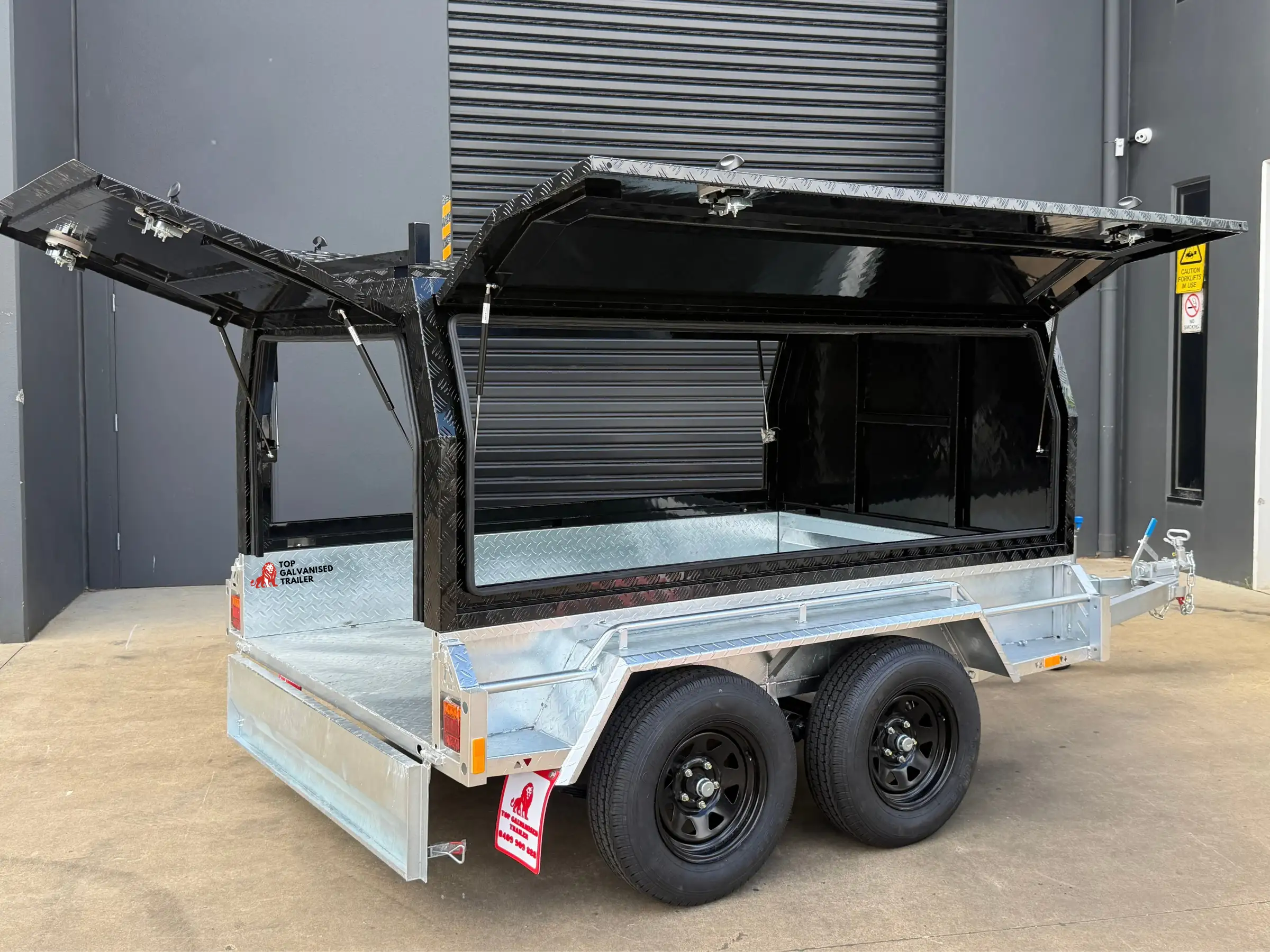

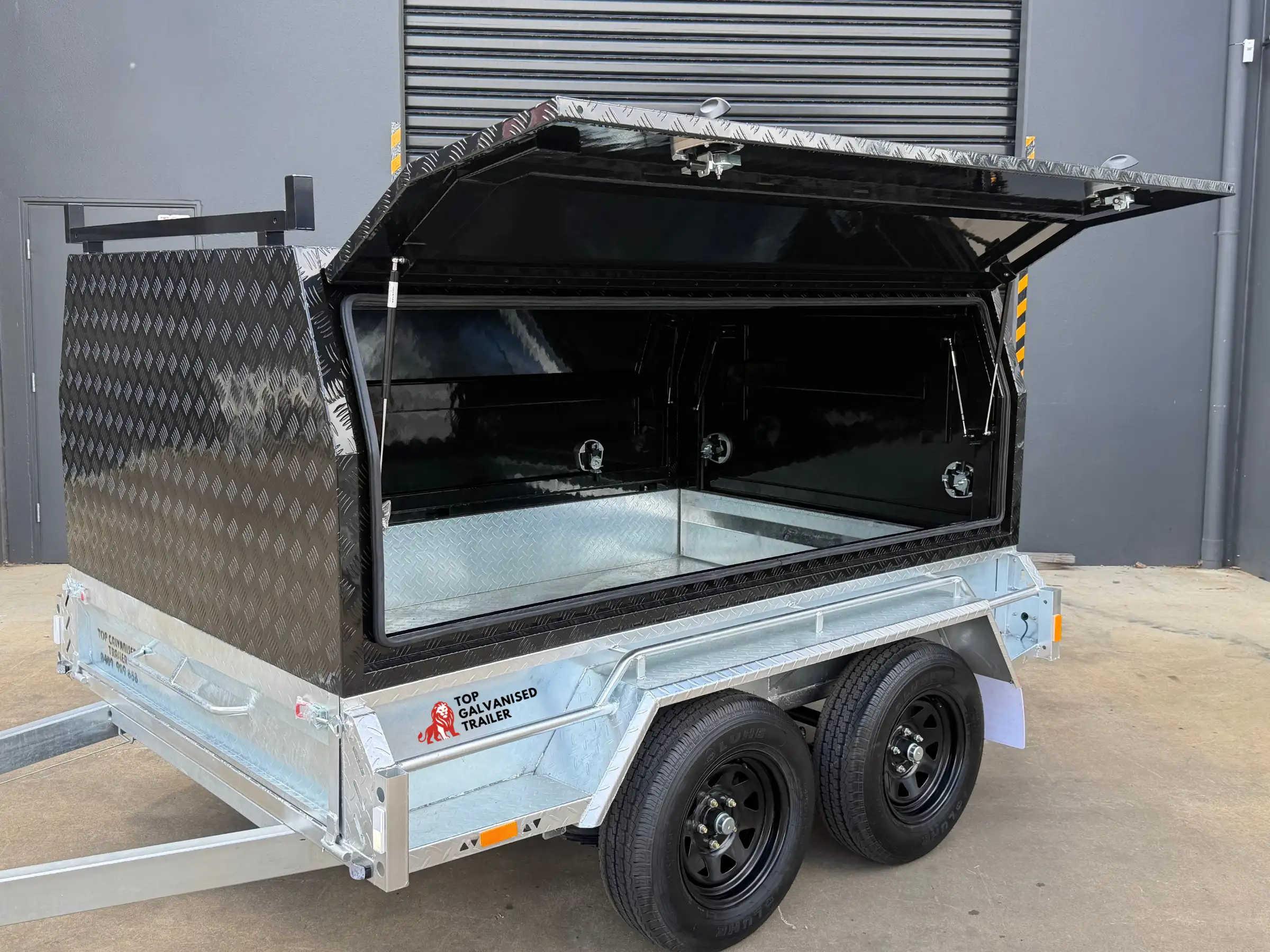

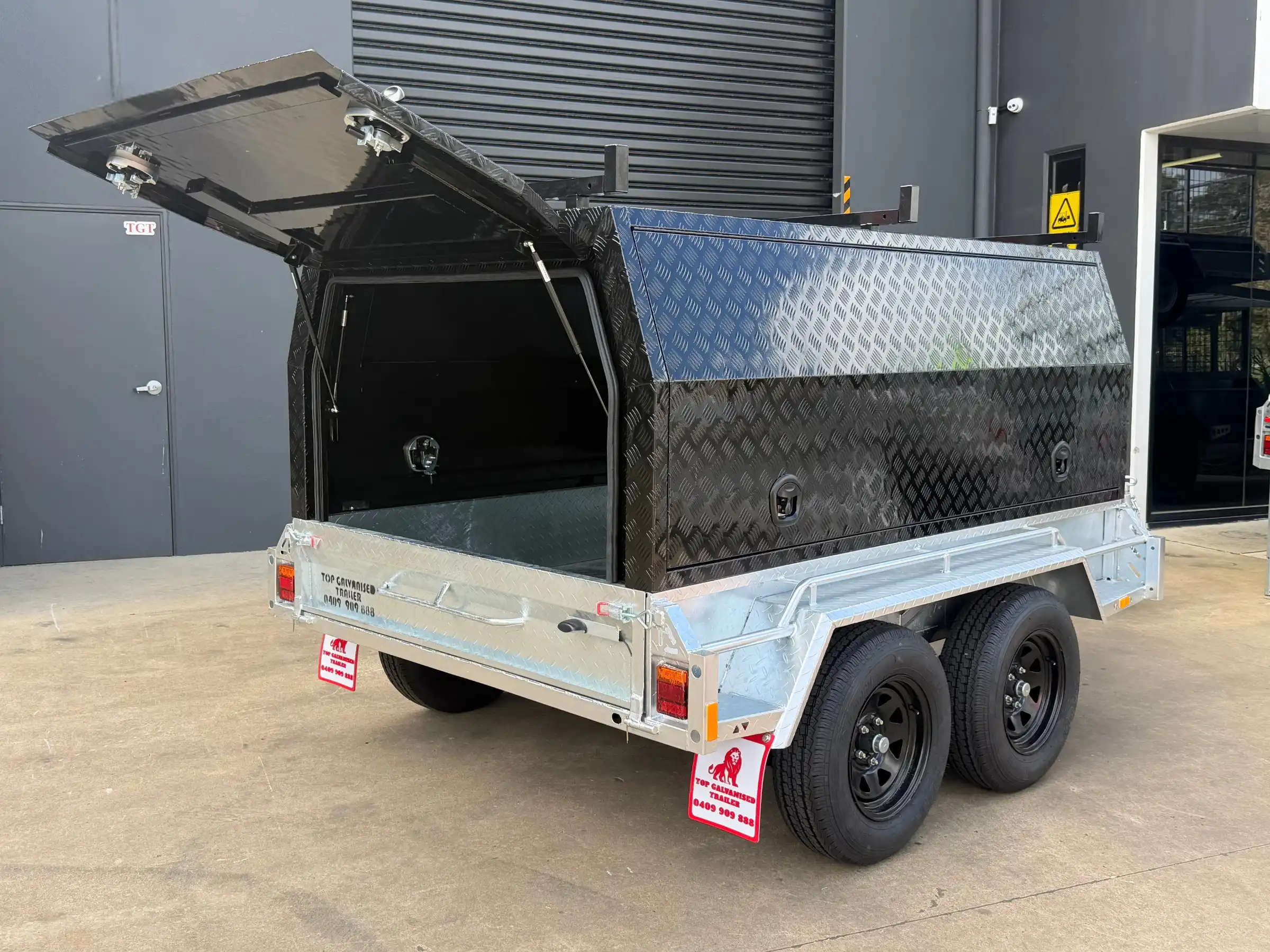

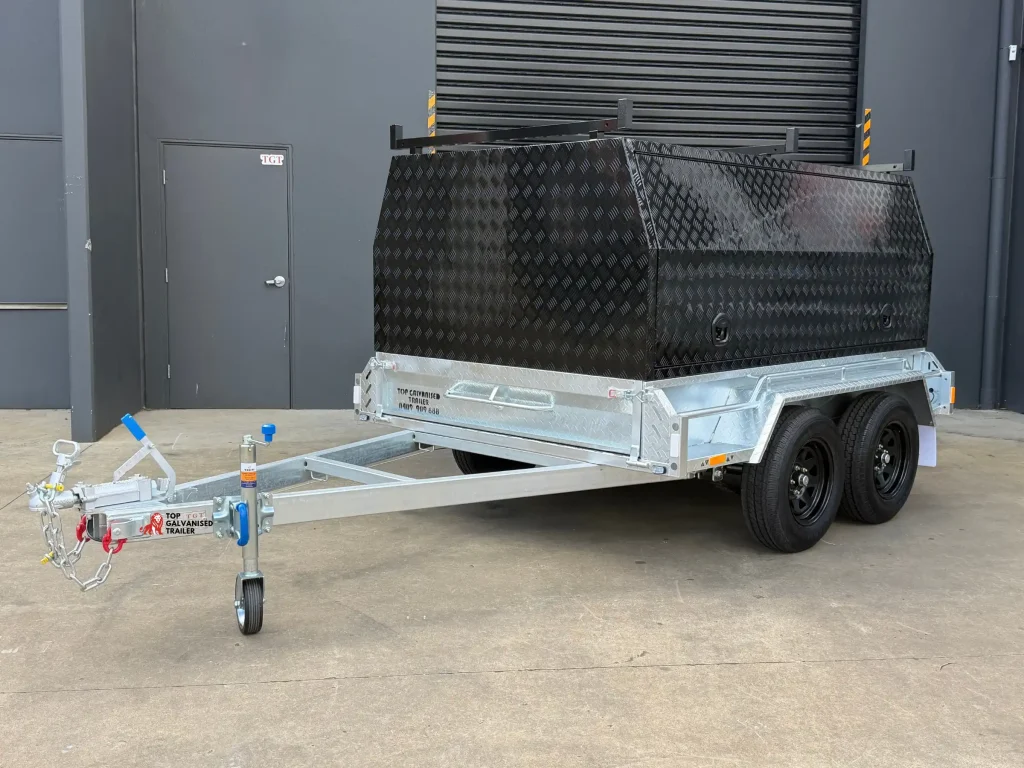

8×5 Tradie Trailer for Sale Aluminium Canopy Black (3 Door)
Canopy Specifications:
- Height: 2485 x 1630 x 900mm
-
Material: 2.5mm Marine Grade Aluminum Checker Plate -
Doors: 3 Door with Dual Whale Locks on Each Door with Keys -
Hinges: Full-Length Stainless Piano Hinge & Fully Rubber Sealed. Water Resistance and Dustproof -
Roof Racks: Three Roof Racks (total height including racks 1040mm) -
Roof Loading Capacity: 50kg Dynamic Loading Capacity on Roof
Specifications
Trailer Specs:
- ATM: 2000kg (upgradable to 3200kg)
- Tare: 720kg
- Loading Capacity: 1280kg
- Exterior Length: 4.43m
- Exterior Width: 2.0m
- Internal Size: 2400 x 1530 x 300mm
- Drawbar: 1900mm; 100 x 50 x 3mm RHS
- Coupling: 50mm Over-ride Braked Coupling (ADR Standards)
- Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Round Solid Axle
- Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
- Suspension: 6 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 10″ Mechanical Disc Brake
- Jockey Wheel: 8” Swing Up Heavy Duty
- Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
- Extended Step-up Platforms On Both Sides
- Tie Down Rails All Around
- Ladder Racks Holders
- 50×50mm Reinforced Horizontal & Vertical SHS Support Beams
Canopy Specs:
- Outside Length x Width: 2485 x 1630mm
- Height: 900mm
- Height incl. racks: 1040mm
- Material: 2.5mm Marine Grade Aluminum Checker Plate
- Doors: 3 Door with Dual Whale Locks and Keys
- Hinges: Full-Length Stainless Piano Hinge & Fully Rubber Sealed. Water Resistance and Dustproof
- Three Roof Racks
- Roof Loading Capacity: 50kg Dynamic Loading Capacity on Roof
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Aluminium Toolbox
- Mowerpad
- Other Customisations
Videos
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.
8×5 Tradesman Trailer with Black Aluminium Canopy (3 Door) Galvanised Trailer
Please note: Unless otherwise specified, cage and all other accessories are calculated separately. Refer to the pricing details below.
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later
