Description

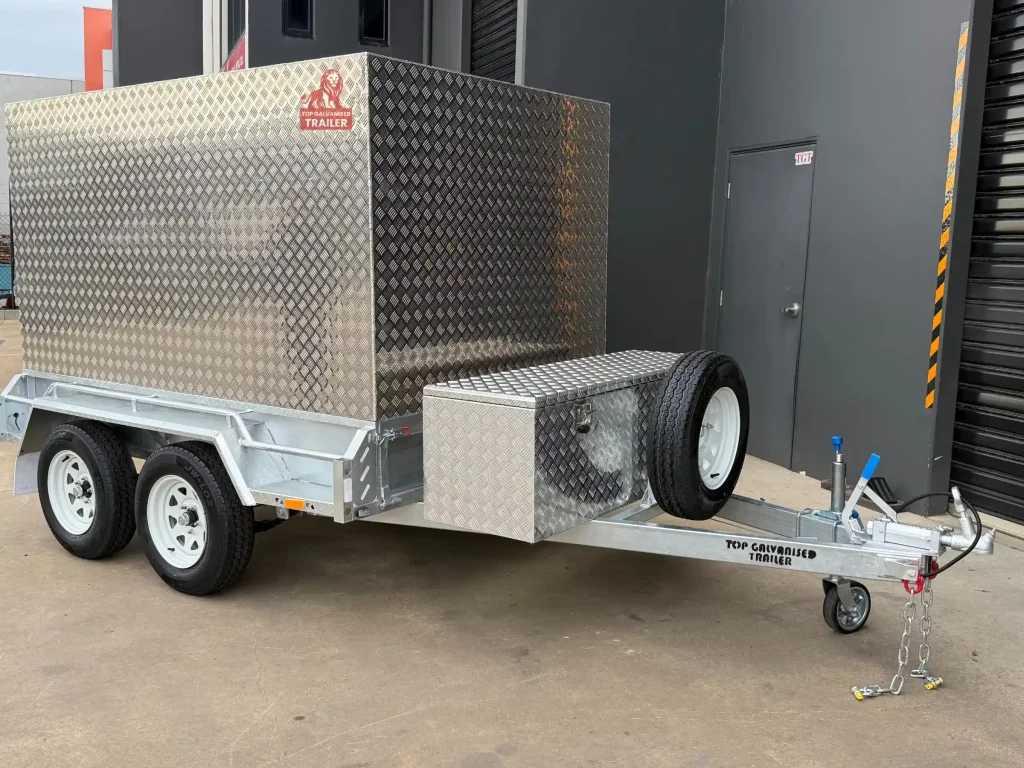

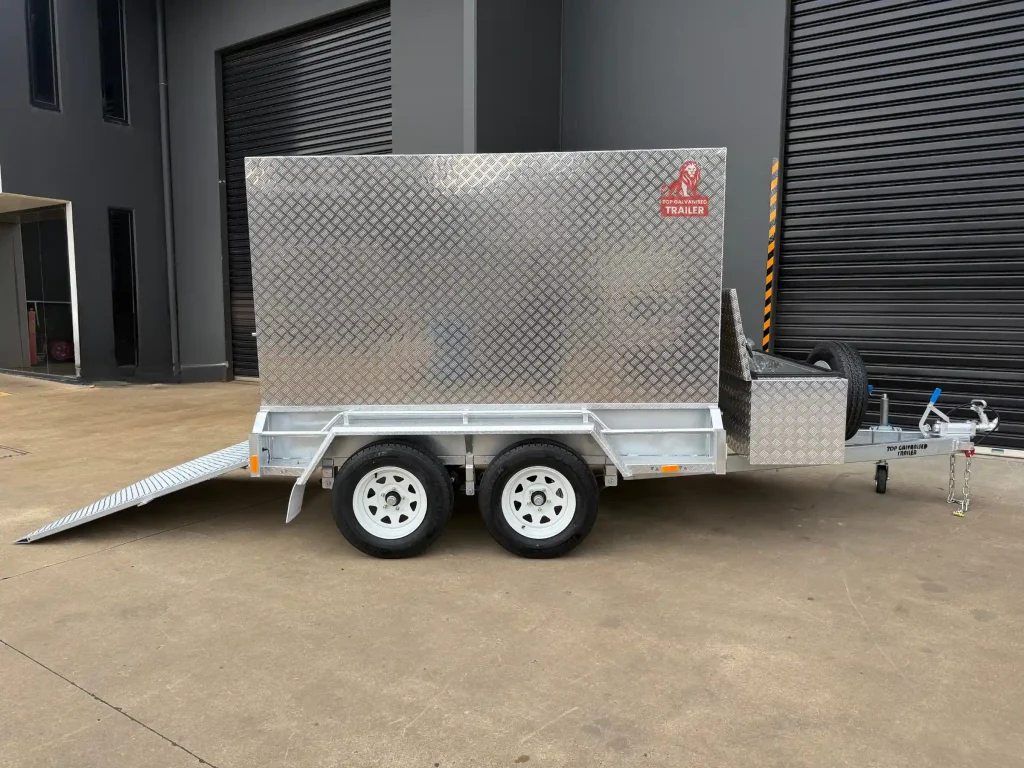

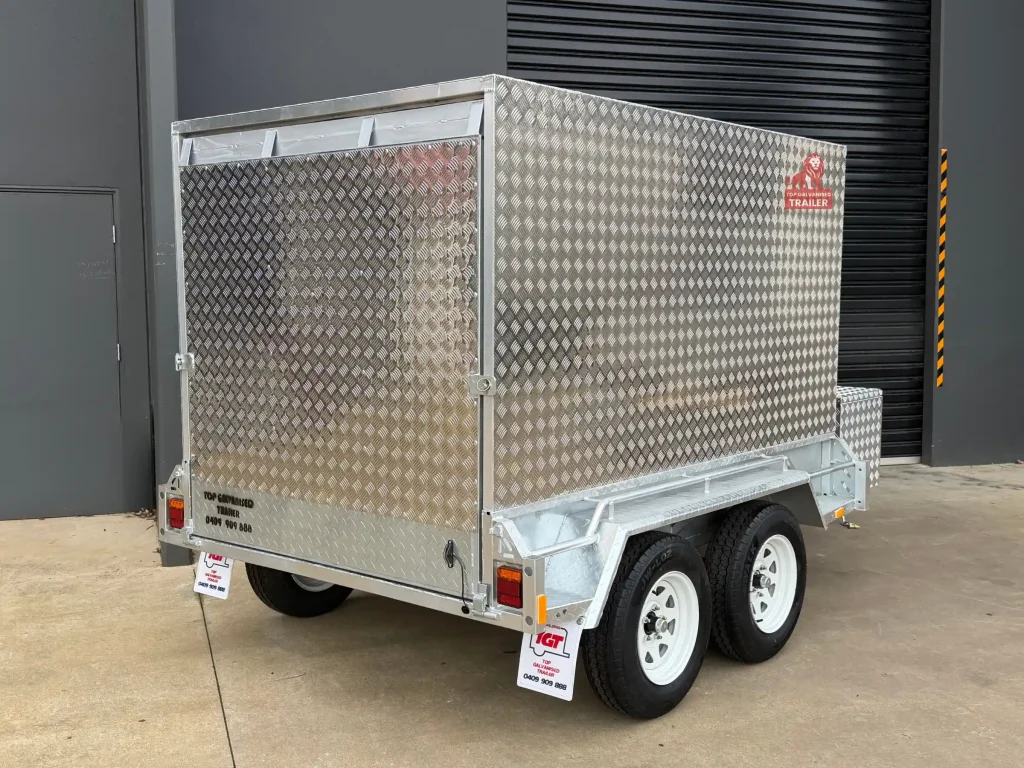

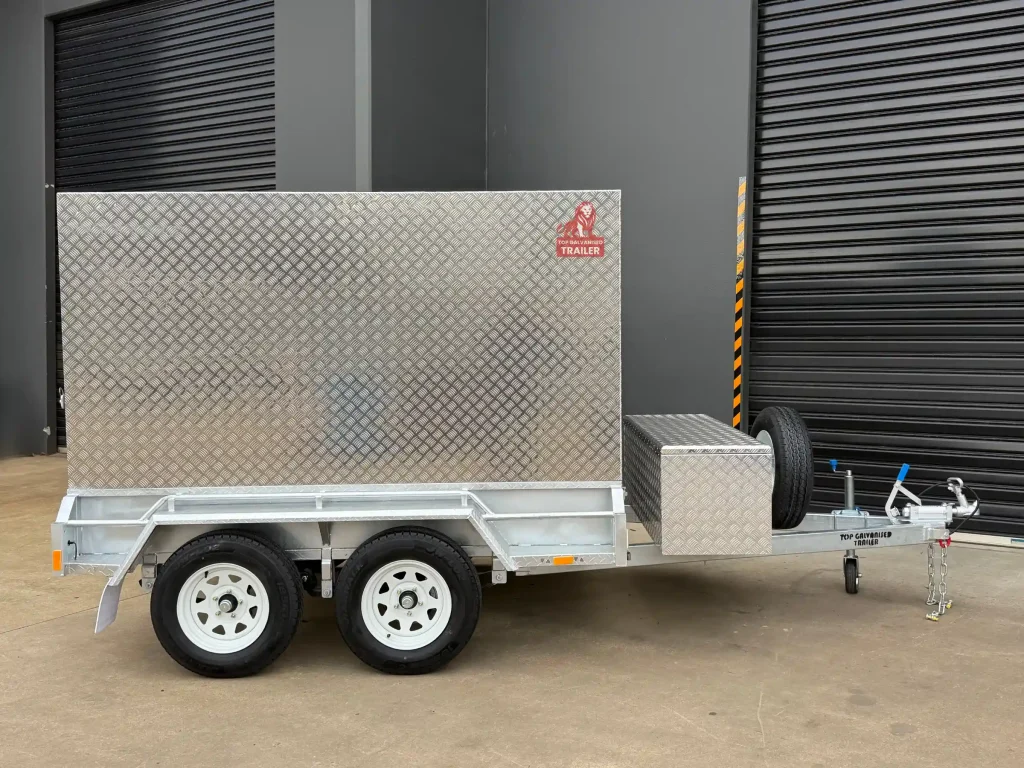

8×5 Enclosed Trailer with Ramp

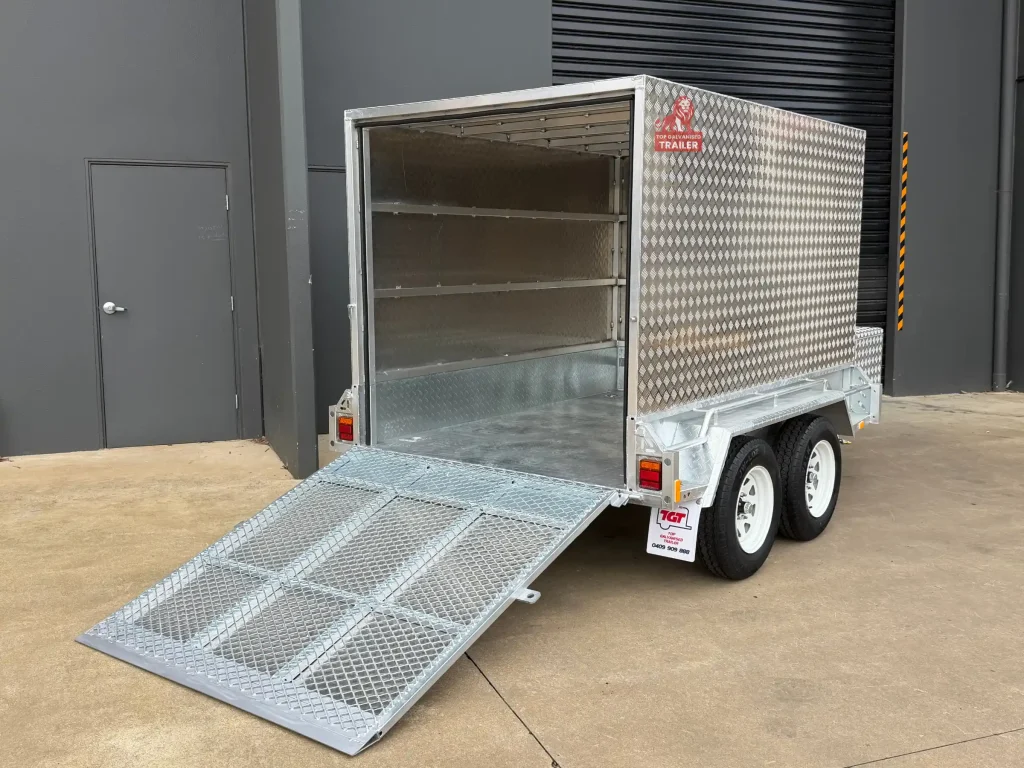

Heavy-duty fully enclosed trailer with a 1.2m enclosed aluminium canopy and drop down ramp. Perfect for secure tool, equipment, furniture and cargo transport. Hot dip galvanised trailer with rocker roller suspension, new tyres, 1.9m drawbar with optional aluminium toolbox. If you have any questions or require custom aluminium top, please Contact Us.
Specifications
- ATM: 2000kg (upgradable to 3200kg)
- Tare: 710kg
- Loading Capacity: 1290kg
- Exterior Length: 4.43m
- Exterior Width: 2.0m
- Internal Size: 2400 x 1530 x 1500mm
- Drawbar: 1900mm; 100 x 50 x 3mm RHS
- Coupling: 50mm Over-ride Braked Coupling (ADR Standards)
- Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Round Solid Axle
- Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
- Suspension: 6 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 10″ Mechanical Disc Brake
- Jockey Wheel: 8” Swing Up Heavy Duty
- Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
- Enclosed Aluminium Cage: 1.2m High, Internal roof and Side Support. Total internal height from the trailer floor 1500mm.
- Extended Step-up Platforms On Both Sides
- Tie Down Rails All Around
- 50×50mm Reinforced Horizontal & Vertical SHS Support Beams
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration

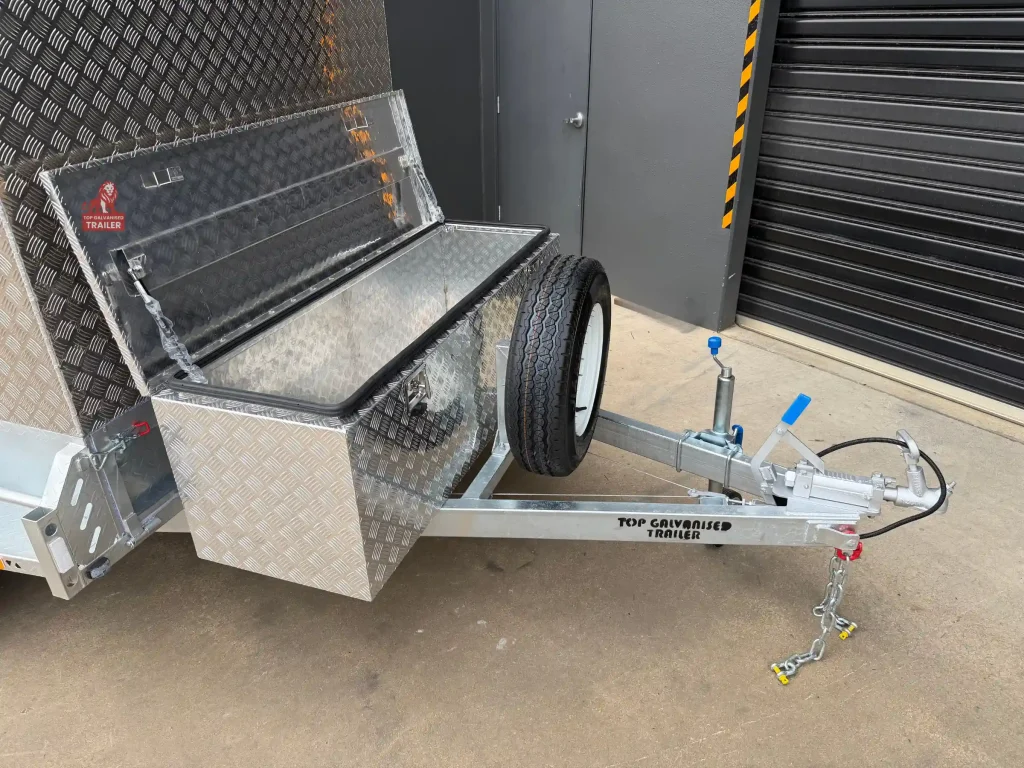

- Aluminium Toolbox
- Mowerpad
- Other Customisations
Videos
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.
8×5 Galvanised Enclosed Trailer with Aluminium Top & Drop-Down Ramp
Please note: Unless otherwise specified, cage and all other accessories are calculated separately. Refer to the pricing details below.
5-Year Structural Warranty
Register & Go in 30 Minutes
Buy Now, Pay Later
Additional Options – Priced Separately:
Get a Quote
Categories: Tandem Trailers, Tradesman Trailers
SKU: TBT85-Enclosed
Description
8×5 Enclosed Trailer with Ramp
Heavy-duty fully enclosed trailer with a 1.2m enclosed aluminium canopy and drop down ramp. Perfect for secure tool, equipment, furniture and cargo transport. Hot dip galvanised trailer with rocker roller suspension, new tyres, 1.9m drawbar with optional aluminium toolbox. If you have any questions or require custom aluminium top, please Contact Us.
Specifications
- ATM: 2000kg (upgradable to 3200kg)
- Tare: 710kg
- Loading Capacity: 1290kg
- Exterior Length: 4.43m
- Exterior Width: 2.0m
- Internal Size: 2400 x 1530 x 1500mm
- Drawbar: 1900mm; 100 x 50 x 3mm RHS
- Coupling: 50mm Over-ride Braked Coupling (ADR Standards)
- Safety Chain: 10mm with Hammerlock Shackle (a safe alternative to welding).
- Surface Finish: Hot Dipped Galvanised (Rust Free)
- Checker Plate: 2.5mm, Fully Welded Body & Chassis
- Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
- Axle: Dual Axle, 50mm Round Solid Axle
- Wheel & Tyres: New 14” Sunraysia Steel Rims Ford Stud, 185/70R14C Tyres
- Suspension: 6 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
- Brakes: 10″ Mechanical Disc Brake
- Jockey Wheel: 8” Swing Up Heavy Duty
- Side Walls: 300mm High Sides, One Piece Folded Up (Not Bolted)
- Enclosed Aluminium Cage: 1.2m High, Internal roof and Side Support. Total internal height from the trailer floor 1500mm.
- Extended Step-up Platforms On Both Sides
- Tie Down Rails All Around
- 50×50mm Reinforced Horizontal & Vertical SHS Support Beams
Optional Extras
- Spare Wheel
- Spare Wheel Holder
- Onsite VIC Registration
- Aluminium Toolbox
- Mowerpad
- Other Customisations
Videos
Warranty
-
5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.
-
1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.
-
Used or Second-hand trailers and parts are not covered under this warranty.
