Easily transport and dump heavy materials like soil, gravel, and construction waste. Its hot-dipped galvanised design means that it can be used in rough outdoor environments without fear of rust or corrosion. Save Time & Money by Investing in a new high-quality tipper trailer!

  • ATM: 3500kg
  • Tare: 1180kg (Exclude cage)
  • Loading Capacity: 2320kg
  • Exterior Length: 5.05m
  • Exterior Width: 2.32m
  • Internal Size: 3040 x 1830 x 425mm
  • Drawbar: 1900mm; 150 x 50 x 5mm RHS (Welded, not only bolted)
  • Chassis: Lower Chassis 70×50x3mm RHS, Upper Chassis 100x50x5mm RHS
  • Coupling: 50mm Quick Release Coupling 3500kg
  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Checker Plate: 2.5mm, Fully Welded Body & Chassis
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: Dual Axle, 50mm Solid Axle
  • Wheel & Tyres: New 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 225/R15C Tyres
  • Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
  • Brakes: 12″ Electric Drum On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
  • Side Walls: 425mm High Sides, One Piece Folded Up (Not Bolted)
  • Step-up Platforms On Both Sides
  • Tie Down Rails All Around
  • Ladder Racks Holders
  • Cage: 600 or 900mm (Sold Separately)

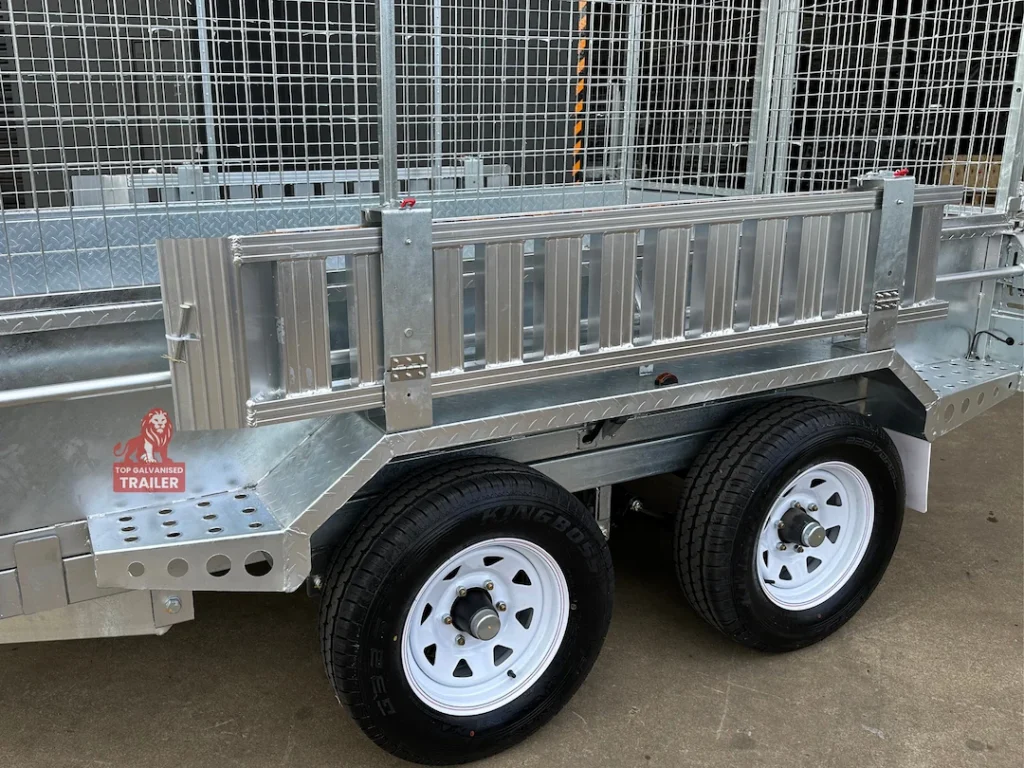

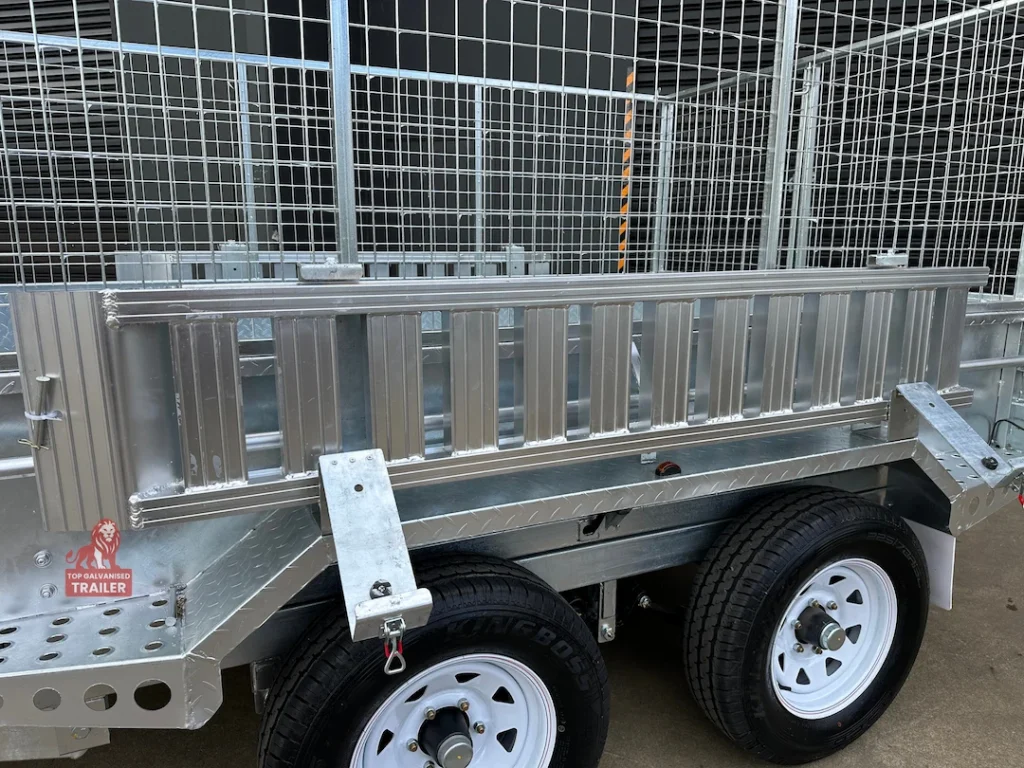

  • Underbody Ramp Holders: Holders for 2m Slide Loading Ramps (Sold Separately)
  • Toolbox: Fitted Drawbar Aluminium Toolbox

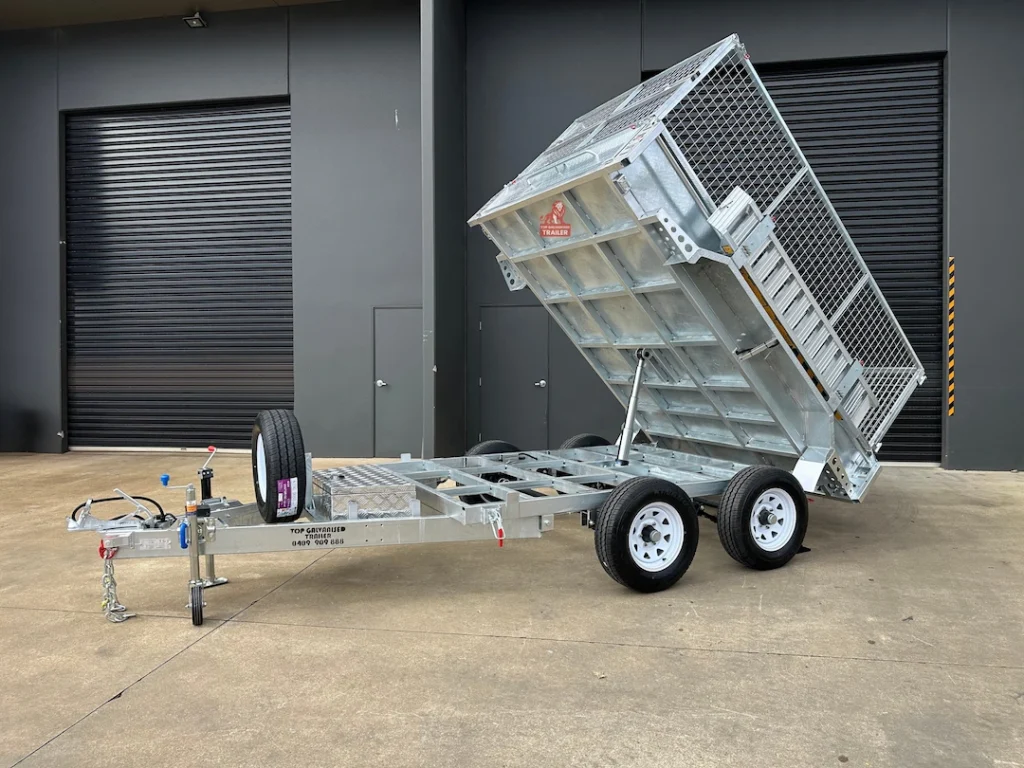

  • Hydraulic Pump: 4.5 Ton, 1.2m Hydraulic Cylinder (4 Stages) with Hydraulic Power Pack
  • Battery: 120 AMP Deep Cycle Battery

  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Galvanised Cage 600/900mm
  • Canvas Cover
  • Ladder Racks (Pair)

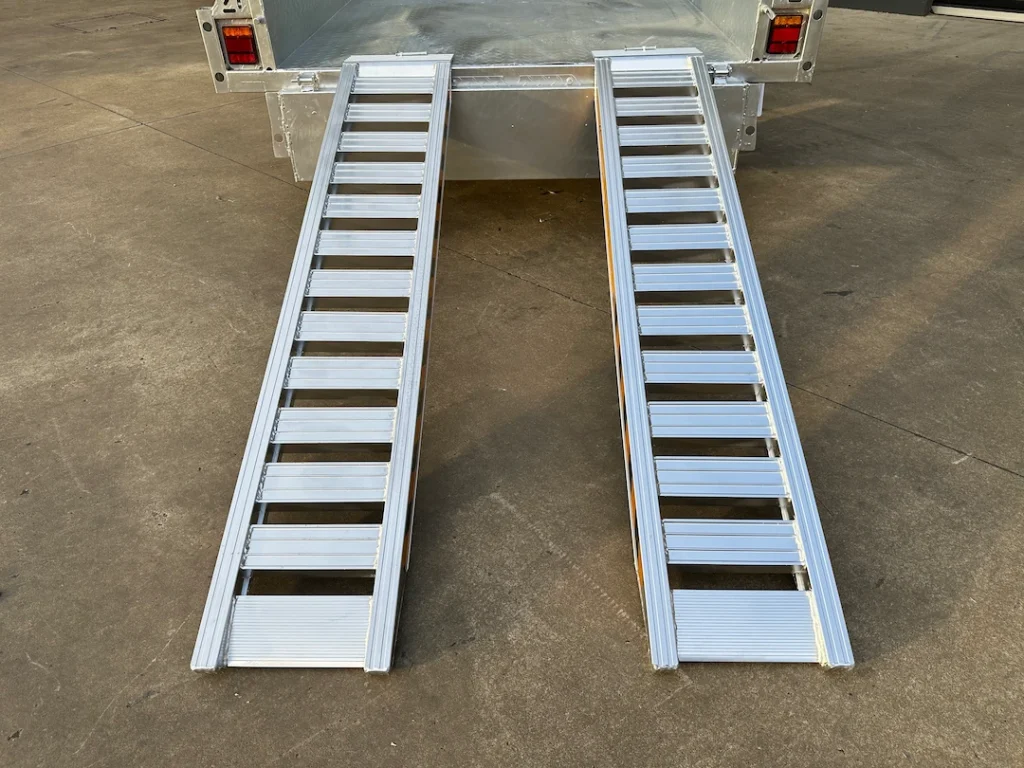

  • Underbody 2.0 Ton, 2m Galvanised Slide Loading Ramps
  • Elecbrakes Brake Controller
  • Other Customisations

  • 5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.

  • 1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.

  • Used or Second-hand trailers and parts are not covered under this warranty.

10×6 Hydraulic Tipper Trailer Galvanised Tandem 3500kg ATM

From

Original price was: $11,020.00.Current price is: $10,650.00.

$370 Off

5-Year Structural Warranty

Register & Go in 30 Minutes

Buy Now, Pay Later

CreditOne

Note: Images are for illustrative purposes only. Optional accessories such as cage and spare wheel are sold separately. Please refer to the form below for pricing details.
