Categories: , SKU: TB-PLTT35106
galvanised machinery trailer
plant trailer 10x6
3500kg plant trailer
plant trailer ramps
machinery trailer for sale
10x6 Plant Trailer Hot Dip Galvanised 3500kg ATM - Image 6

Our heavy-duty plant trailers are equipped with powerful 12″ electric brakes for effective stopping power and safety on the road.

Its hot-dipped galvanised design means that it can be used in rough outdoor environments without fear of rust or corrosion.

  • ATM: 3500kg
  • Tare: 900kg
  • Loading Capacity: 2600kg
  • Internal Size: 3000 x 1900mm
  • Ramp Height: 1800mm
  • Height from ground to deck: 500mm
  • Total Height with ramp from ground: 2250mm
  • Drawbar: 1900mm; 150 x 50 x 5mm RHS
  • Chassis: 100 × 50 x 5mm Reinforced RHS Support Beams
  • Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Floor: Punched Floor, Fully Welded
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: Dual Axle, 50mm Square Solid Drop Axle
  • Wheel & Tyres: New 15” Sunraysia Steel Rims Landcruiser 6 Stud, 225R15C Light Truck Tyres
  • Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
  • Brakes: 12″ Electric Drum Brakes On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
  • Ramps: Adjustable Loading Ramp with Gas Strut

  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Elecbrakes Brake Controller
  • Other Customisations

  • 5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.

  • 1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.

  • Used or Second-hand trailers and parts are not covered under this warranty.

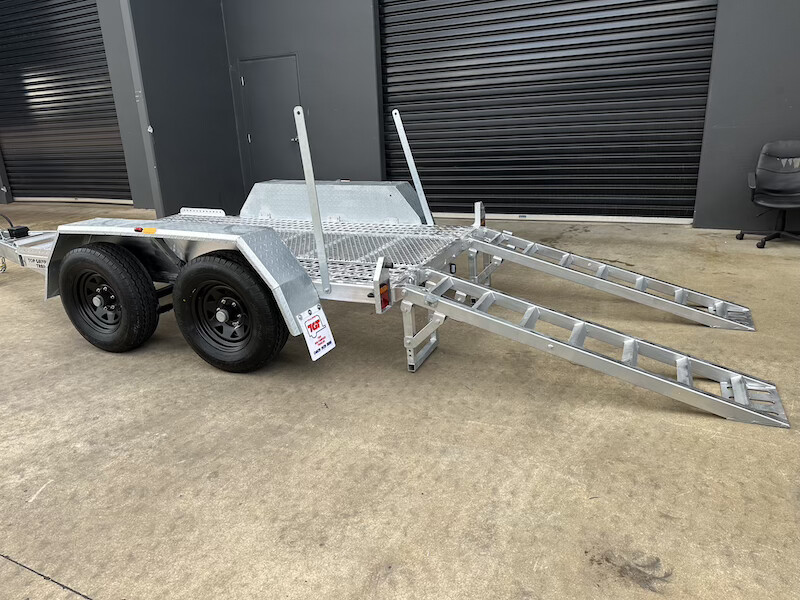

10×6 Plant Trailer Hot Dip Galvanised 3500kg ATM

From

Original price was: $8,080.00.Current price is: $7,100.00.

$980 Off

5-Year Structural Warranty

Register & Go in 30 Minutes

Buy Now, Pay Later

CreditOne

Note: Images are for illustrative purposes only. Optional accessories such as cage and spare wheel are sold separately. Please refer to the form below for pricing details.

Product total
Options total
Grand total

Click the "Add to Cart" icon to request a formal quote or place an order with your selected optional items (subject to availability).

Our heavy-duty plant trailers are equipped with powerful 12″ electric brakes for effective stopping power and safety on the road.

Its hot-dipped galvanised design means that it can be used in rough outdoor environments without fear of rust or corrosion.

  • ATM: 3500kg
  • Tare: 900kg
  • Loading Capacity: 2600kg
  • Internal Size: 3000 x 1900mm
  • Ramp Height: 1800mm
  • Height from ground to deck: 500mm
  • Total Height with ramp from ground: 2250mm
  • Drawbar: 1900mm; 150 x 50 x 5mm RHS
  • Chassis: 100 × 50 x 5mm Reinforced RHS Support Beams
  • Coupling: 50 mm Heavy-Duty 3500kg Coupling (ADR Standards)
  • Safety Chain: 13mm with Hammerlock Shackle (a safe alternative to welding).
  • Surface Finish: Hot Dipped Galvanised (Rust Free)
  • Floor: Punched Floor, Fully Welded
  • Lights: LED Tail Lights + LED Number Plate Light + Side Marker Lights
  • Axle: Dual Axle, 50mm Square Solid Drop Axle
  • Wheel & Tyres: New 15” Sunraysia Steel Rims Landcruiser 6 Stud, 225R15C Light Truck Tyres
  • Suspension: 7 Leaf (8mm) Rocker Roller Springs — NOT Slipper; Fully Welded Spring Hangers
  • Brakes: 12″ Electric Drum Brakes On Four Wheels, Dexter Hub fitted with 2 Tonne Bearings 25580/15123
  • Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
  • Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
  • Ramps: Adjustable Loading Ramp with Gas Strut

  • Spare Wheel
  • Spare Wheel Holder
  • Onsite VIC Registration
  • Elecbrakes Brake Controller
  • Other Customisations

  • 5-Year Structural Warranty applies to all brand-new trailers. Please note, this does not cover surface rust, misuse, damage, or improper treatment.

  • 1-Year Limited Warranty covers leaf springs, lights, wiring, jockey wheel, and all other components.

  • Used or Second-hand trailers and parts are not covered under this warranty.
